Specifications

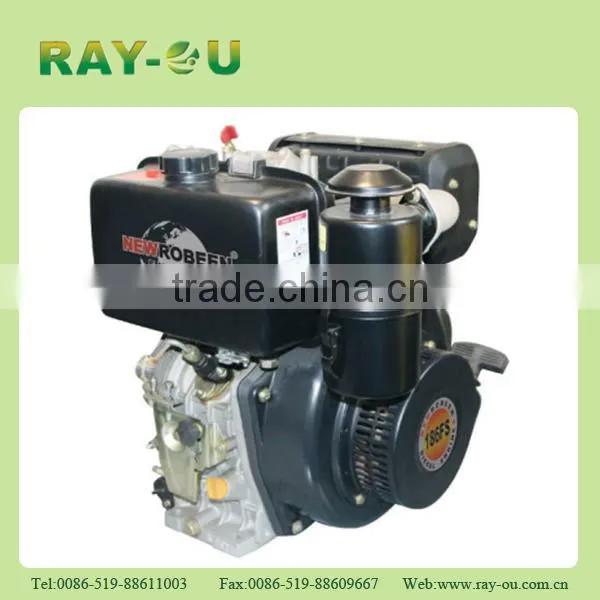

Factory Direct Sale Diesel Engine 178F1.high-quality
2. high configuration
3.air-cooled diesel engines
High Quality China Diesel Engine
1.Main Sizes As Follows:
| Model | RO170F(E) | RO178F(E) | RO178FA(E) | RO186F(E) | RO188FA(E) | 188F(E) | RO188FB(E) |
| Bore*Stroke(mm) | 70*55 | 78*62 | 78*64 | 86*70 | 86*72 | 88*72 | 88*75 |
| Displacement(mL) | 211 | 296 | 305 | 406 | 418 | 438 | 456 |
| Rate Output KW(HP)/rpm | 2.5(3.4)/3000 2.98(4.0)/3600 | 3.68(5.0)/3000 4.0(5.5)/3600 | 3.8(5.2)/3000 4.4(5.9)/3600 | 5.7(7.75)/3000 6.3(8.85)/3600 | 5.7(7.75)/3000 6.6(8.85)/3600 | 6.5(8.84)/3000 7.3(9.93)/3600 | 6.08(8.15)/3000 7.3(9.78)/3600 |
| Max Output KW(HP)/rpm | 2.8(3.8)/3000 3.36(4.5)/3600 | 3.8(5.2)/3000 4.4(5.9)/3900 | 4.0(5.36)/3000 4.9(6.6)3600 | 6.3(8.57)/3000 7.34(9.85)/3600 | 6.3(8.57)/3000 7.34(9.85)/3600 | 7.3(9.93)/3000 7.9(10.74)/3600 | 6.83(9.15)/3000 8.2(11.0)/3600 |
| Fuel Consumption (g/kw.h) | ‹295 | ‹280 | ‹280 | ‹270 | ‹270 | ‹270 | ‹270 |
| Fuel Tank Capacity(L) | 2.5 | 3.5 | 3.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Lubrication Oil Capacity(L) | 0.75 | 1.1 | 1.1 | 1.65 | 1.65 | 1.7 | 1.7 |
| Packing Size(L*W*H)mm | 415*385*470 | 485*475*525 | 485*475*525 | 500*470*555 | 500*470*555 | 500*470*555 | 500*470*555 |
| Net Weight(KG) | 26 | 35 | 35 | 48 | 48 | 49 | 49 |
Solid Carton+Cystosepiment
1.Quick quotation and patient reply
2.Delivery in time
3.Professional and experienced technical team to improve products quality and solve problem.
We have abundant foreign trade business experience.
Because:
1.From 2006,we started to do foreign trade business.It has lasted 9 years.
2.We have specialized sales team to be responsible for different country' business.Our target is "try our best to make every customer satisfied"
Changzhou Ray-Ou Power Machinery Co.,Ltd is a Chinese professional large-scared manufacturer of producing gasoline engines,kinds of light construction machines.It was established in 2007,located near Shanghai with area of 10,000 square meters.
Main products include RO20 gasoline engines,water pumps,tamping rammesr,plate compactors,power trowels,concrete cuttesr,cement mixers,concrete cutters and etc.We are Honda's OEM factory.Now we export products to more than 40 countries in the world.
Our comany's advantage is high cost performance.We produce high-quality products and sell them at the most economical prices.
Company's spirit:"reasonable price,efficient production,good services and delivery on time"
*Q:What's your MOQ of this term?
A:1 set
*Q:Could you stick customer's brand on the products?
A:Of course,we welcome the OEM orders.
*Q:Hong long is your warranty?
A:Guarantee for 12 months starting from products arriving the destination port
*Q:What's your packing?
A:solid carton,steel frame with carton cover or wooden case
*Q:What's your payment method?
A:T/T 30% deposit,the balance against the copy of B/L Or L/C at sight
*Q:What's your delivery time?
A:Delivery timely about 15-20 days after receiving the deposit
