Lower Price PVC Flexible Conduit Pipe
- 1000000 Meter / Meters per Month
- Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | G&N | Model Number: | GN7 Tube |
Type: | Flexible | Material: | PVC |
Product Description
Specifications
Flexible Conduit Pipe1.Excellent Flexible
2.Easy Installment
3.DN:6.0mm~100mm
4.ISO9002,SGS,BV
Lower Price PVC Flexible Conduit Pipe
1. Flexible Conduit Description
We produce wide range Flexible hose includes PE Flexible Conduit, PP Flexible, Nylon Flexible hose
and pvc flexible hose.
2. Flexible Conduit Features
a. Flame-retardant: Vo(UL94) and UV Risistance
b. Protection degree: IP68
c. Temperature range: -30°C~+110°C,short-term to 130°C
d. Characters: Excellent pliability,glossy surface,high mechanical strength,wear resistant,
anti-distortion,resistant to oil,acid and solvents,flame-resistant,self-extingguishing,
uv-resistant,insulated,free of halogen,phosphor and cadmium
e. Lower Installation Costs: light weight and ease of installation can reduce installation costs
3. Flexible Conduit Full Size In Details
Flexible Conduit | |||||
Photo |
Part Number | Specifications | IDxOD(mm) | Curved radius(mm) | Packaging unit(mm) |
PP-7.0 | AD7.0 | 4.5x7.0 | 10 | 200 | |
PP-10.0 | AD10.0 | 6.5x10.0 | 15 | 100 | |
PP-13.0 | AD13.0 | 10.0x13.0 | 20 | 100 | |
PP-14.0 | AD14.0 | 11.0x14.0 | 25 | 100 | |
PP-15.8 | AD15.8 | 12.0x15.8 | 28 | 100 | |
PP-18.5 | AD18.5 | 14.3x18.5 | 35 | 100 | |
PP-20.0 | AD20.0 | 16.0x20.0 | 38 | 100 | |
PP-21.2 | AD21.2 | 17.0x21.2 | 40 | 100 | |
PP-25.0 | AD25.0 | 20.0x25.0 | 42 | 100 | |
PP-28.5 | AD28.5 | 23.0x28.5 | 45 | 100 | |
PP-32.0 | AD32.0 | 25.0x32.0 | 50 | 50 | |
PP-34.5 | AD34.5 | 29.0x34.5 | 55 | 50 | |
PP-42.5 | AD42.5 | 36.0x42.5 | 65 | 25 | |
PP-54.5 | AD54.5 | 48.0x54.5 | 80 | 25 | |
PP-67.2 | AD67.2 | 56.3x67.2 | 100 | 25 | |
PP-80.0 | AD80.0 | 66.5x80.0 | 120 | 20 | |
PP-106.0 | AD106.0 | 91.0x106.0 | 160 | 20 |

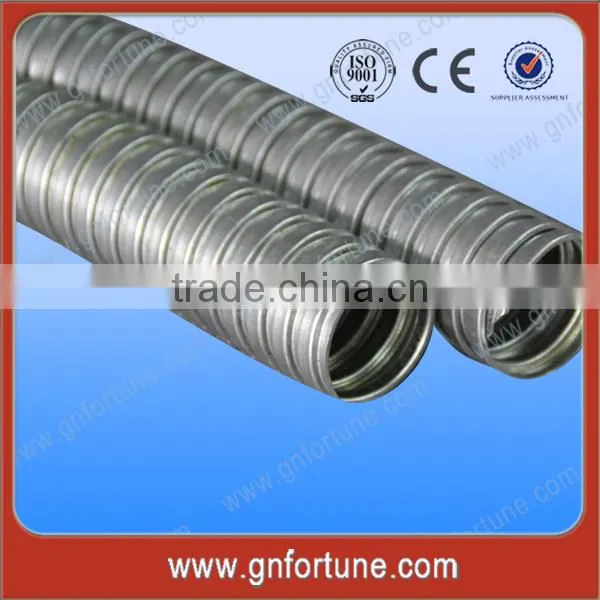

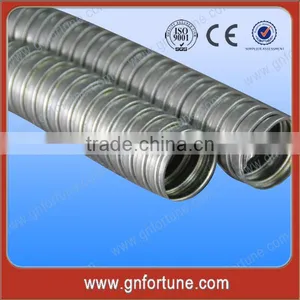

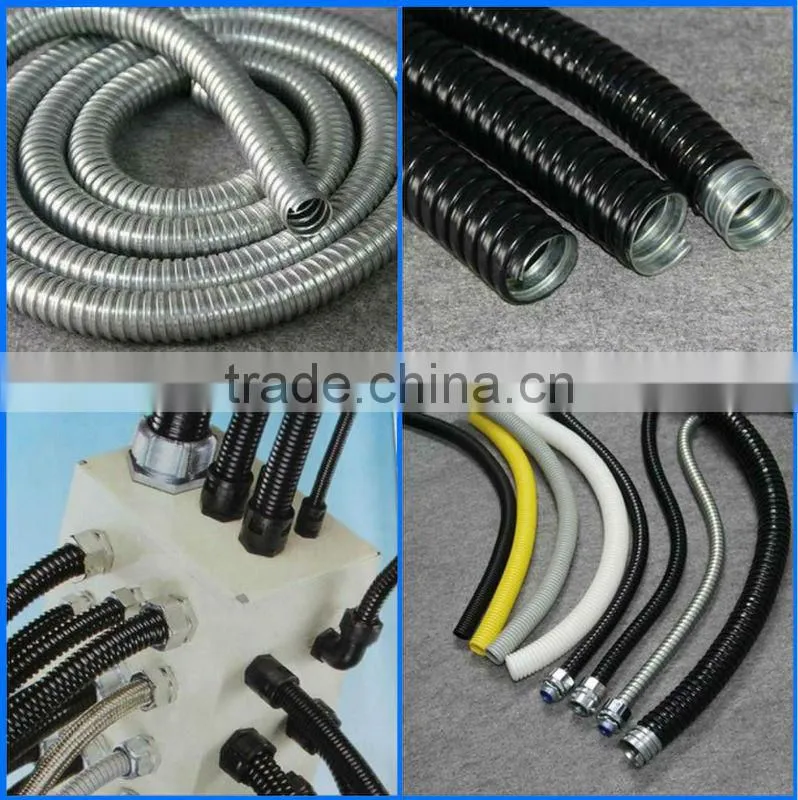

4. Flexible Conduit Photos

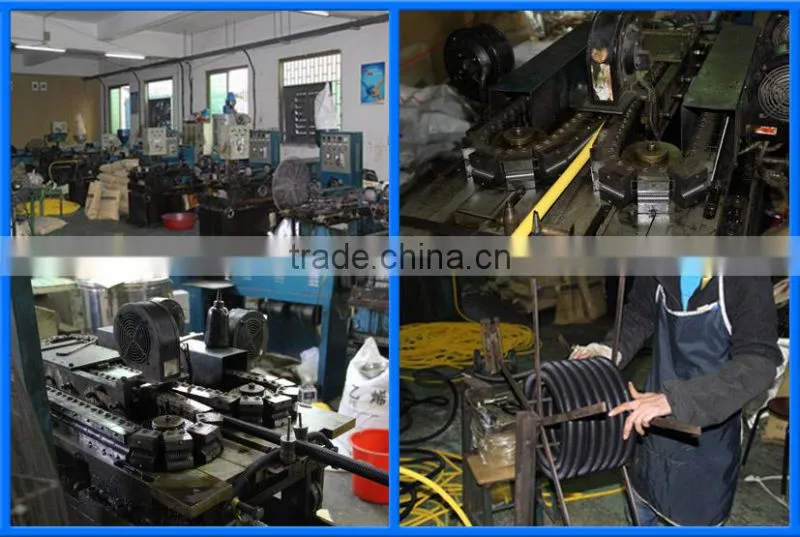

5. Flexible Conduit Factory Overshow
6. Flexible Conduit Certificate
