Specifications
has good performance of flexibility,rigidity,creep properties resistence,environmental stress craze resistance,nice hot meltingHDPE Large Diameter Water Supply Pipe Gas Pipe Extrusion Machine
Laiwu Hengxiang Plastic Machinery Co., Ltd was established at the beginning of 2004.The company takes“People oriented, Honest operation” as tenet;devoted to the R&D and businesses of plastic machines.
Our company has gained approval of ISO9001 International Quality System, and gained several Utility Model Patents.
The company mainly produces and operates various plastic machines for producing films, pipes,wires & cables, EPE foaming products, single-layer and double-layer drip irrigation tape production.The company possesses a high qualified talents team, who can provide design, production and service according to the customers’ requirements.
Our company also possesses a professional after-sale team, who can provide customer with supporting components and high-level services. You will be satisfied with the products and service.
Features and application
HDPE,MDPE water supply pipe, gas pipe production line has good performance of flexibility, rigidity, creep properties resistence, environmental stress craze resistence and nice hot melting weldability.

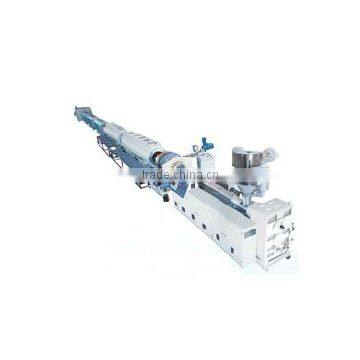

This production line has features of high automaticity nd more convenient operation. It can produce steadily and reliably.This production line is composed of efficient extruder,die head,sizing cooling system, traction system, cutting system, material reversing frame and control system. It is matched with one marker line extruder, which adopts fefficient screw,and delivery bushing. The die head adopts screw type, which ensure material discharging uniformly and removes joint close line. The production line can realize the control of independent adjustment and consolidated adjustment, and is very convenient for operating.
| Diameter range | Extruder | Main moter | Capacity | Max.speed |
| 16-63mm | 55/32 | 30kw | 60-100kg | 16m/min |
| 20-110mm | 65/32 | 45kw | 100-120kg | 6m/min |
| 110-250mm | 100/32 | 110kw | 250-300kg | 6m/min |
| 250-450mm | 120/32 | 160kw | 350-400kg | 3m/min |
| 450-800mm | 15/33 | 315kw | 850-900kg | 1m/min |
| 800-1200mm | 150/35 | 400kw | 900-1200kg | 1m/min |
