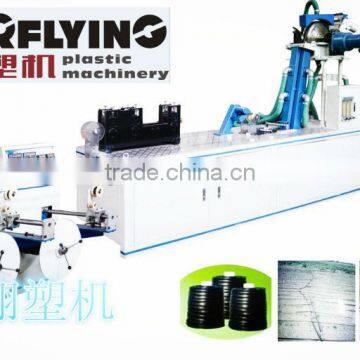

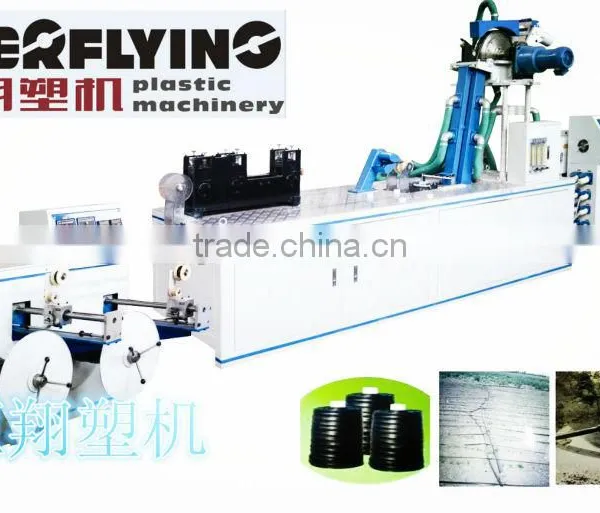

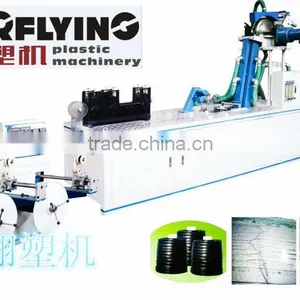

Help CenterIrigation Flat Drip Lines Production Line Two Layers Labyrinthdrip Irrigation Tape Making Machine
Related Products
-
t Tape Lateral Drip Irrigation System Flat Single Blade Labyrinth Dripper Irrigation Tape MachineNegotiableMOQ: 1 Set -
Plastic Single Labyrinth Type Water-saving Drip Irrigation Tape MachineNegotiableMOQ: 1 Set
-
Double-layer High-speed Drip Irrigation Tape Machine With Low PriceUS$ 18,000 - 20,000MOQ: 1 Set
-
Plastic Single Labyrinth Type Water-saving Drip Irrigation Tape Production LineNegotiableMOQ: 1 Set
-
Hengxiang Two Layers Labyrinthdrip Irrigation Tape Making MachineUS$ 25,000 - 30,000MOQ: 1 Set
Specifications
Features of labrinth drip irrigation belt making machine1.high speed
2,For water saving
1.The supplier provide all the machinery and equipment can meet the requirements of agreement and the corresponding standards.
2. Main parts warranty for one year, unit electric parts warranty half a year.
3.The supplier should be 12 months after shipment in equipment, material and process of design defects caused by any free on the damage to the machinery and equipment repair.
4.The supplier would be irresponsible for error handing, assembly, tighting and operation caused by damage.
1. Pre-sale service
The supplier provide equipment foundation drawing, product manuals, etc and a full range of technical data for the buyer.
Equipment foundation drawing
Equipment overall figure
A full set of electrical wiring diagram
2. After-sale service
a. The direction for the buyer to provide equipment foundation drawing, product manuals, etc. A full range of technical data
b.Main parts warranty for one year, unit electric parts warranty half a year.
c. The schedule of wearing parts, spare parts supplied by the supplier, and lifetime supply of spare parts, spare parts.
»Features and application
Specifications of the products:
Space of the drip irrigation belts (mm):150, 200,300,400,600 (selected by user)
Dripping quantity of the drip irrigation belts (L/H): 1.8,2.4,2.8,3.0,and 3.2 (selected by user)
Application of the products:
The drip irrigation belt products manufactured by this equipment are widely used for planting of farmland and greenhouse planting.
Properties of the products:
The double-layer co-extruded drip irrigation belt uses the double-layer co-extruded die head.The two-layer hot runner center or material helical feeding forms network interlaced extrusion molding.The membrane tube can stand high pressure. One of the two layers of the inlets uses regenerated plastic and the other uses raw material for the purpose of lowering the costs and increasing the profits.Two layers of dirrerent co-extruded material have clear distinction and perfect visual effect.
Mechanical characteristics of the double-layer co-extruded labyrinth drip irrigation belt:
1. It used plastic extruders of different models or equivalent models to extrude at the same time.The extruder adopts frequency control to control the output.
2. The molding die head of the drip irrigation belt membrane tube uses double-layer co-extruded hot runner center to feed material helically. The membrane tube uses cast aluminum air-ring and is pre-cooled by air.It adopts far-infrared diameter measuring apparatus keep the evenness of the membrane tube thickness. High strength and high controlling precision.
3. It uses separate vacuum forming device to reach the physical properties of the double-layer drip irrigation belt.
4. It uses the coupling (or flat belt) hauling.The whole traction process uses frequency control.The production line is stable during the producing process.
5. It used double-stage center tension to coil and is equipped with far-infrared electronic counting device,which provides accurate length of the whole coil of the drip irrigation belt.
6. The whole machine set adopts digital electric control, which can be conveniently operated.
»Technical parameters
| Model | Extuuder model | Screw dia./L:d | Main motor power(kw) | Die head specifications(mm) | Cooling method | Driving power of the molding wheel(kw) | Haul-off power ( kw ) | Coiling power(Nm) | Total water consumption(m3/h) | Speed of the production line |
Overall dimension L*W*H |
| SM DGD 55/45 | SJ-55 | Ø55/30:1 | 18.5 |
Ø55*1.5 or Ø53*1.5 (selected by the user) |
Air and water cooling |
1.5 or 1.1 (selected by the user) |
1.5 or 1.1 (frequency control) |
6*2 | 90˜120 | 2*20m/min | 12*1.5*2.3 |
| SJ-45 | Ø45/30:1 | 11 | |||||||||
| SM DGD 50/45 | SJ-50 | Ø55/30:1 | 15 | 2*18m/min | |||||||
| SJ-45 | Ø45/30:1 | 11 |
