Drip Irrigation Belt Production

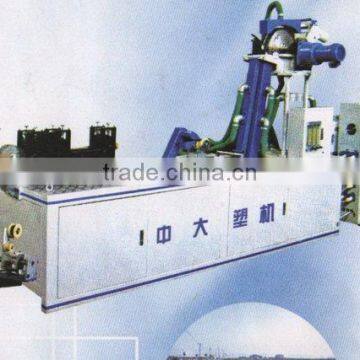

Drip Irrigation Belt Production thumbnail-1

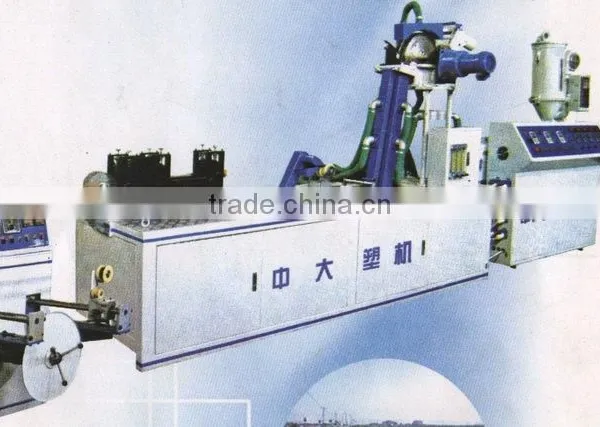

Drip Irrigation Belt Production photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hengxiang
Model Number:
MDGD-55/MDGD-60
Contact Supplier Request Quote Chat Now
Laiwu Everflying Plastic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Hengxiang
Model Number MDGD-55/MDGD-60
After-sales Service Provided Overseas service center available

Specifications

The drip irrigation belt products manufactured by this equipment are widely used for planting of farmland and greenhouse.







Product Description





»Features and application

  Specifications of the products:

  (A).  Space of the drip irrigation belt (mm):150, 200,300,400,600    (selected by user)

  (B).  Dripping quantity of the drip irrigation belts (L/H): 1.8,2.4,2.8,3.0,3.2,and 3.6 (selected by user)

  (C).  Application of the products:

  The drip irrigation belt products manufactured by this



    equipment are widely used for planting of farmland and



greenhouse, especially suitable for arid areas. It is a patent



product for water and energy saving irrigation.



  (D).  Properties of the products:

   The water saving apparatus of the labyrinth drop irrigation belt



has the function of turbulence flow regime and pressure



compensation. The Labyrinth flow passage molding is formed by



 vacuum one-time integrative hot pressure. With high



manufacturing precision and multiple outlets,it can prevent



blocking effectively and provide water evenly.



   Mechanical characteristics of the labyrinth drip irrigation belt:

  1. The screw and the barrel of the extruder use nitrogen



 treated superior alloy steel 3CrMoAIA.The surface of the screw



 will be sprayed again with alloy to increase its service life.The



screw adopts new type structure, which is especially suitable for



 PE regenerated material with good plasticzing effect.



   2. The molding die head of the drip irrigation belt membrane



tube used hot runner center to feed material helically. The



membrane tube uses cast aluminum air-ring and is pre-cooled



by air.It adopts far-infrared diameter measuring apparatus keep



 the evenness of the membrane tube thickness. High strength



and high controlling precision.



  3.  It used the domestic advanced molding device, which



makes the space of the inlet and outlet of the drip irrigation belt



labyrinth even and stable,so as to assure the evenness and



conformity of the dripping quantity.



  4. It uses the coupling (or crawler) hauling.The whole traction



process uses frequency control.The production line is stable



 during the producing process.



  5. It used double-stage center coiling,which makes the



operation flexible.It is equipped with electric length-counting





 device which can measure accurately.



  6. The whole machine set adopts digital electric control, which



 can be conveniently operated.













» Technical parameters

ModelExtruder modelScrew dia./L:dInstalled capacity(kw)Main motor power(kw)

Haul-off machine power

(kw)

Molding wheel rotation power(kw)



Coiling

torque(Nm)

Cooling

air volume(m3/min)

Dimensions(only for reference)

L*W*H

MDGD-55SJ-55Ø55/30:1 38 18.5  1.1or1.5  1.1or1.5  6*2  2840  12*1.5*2.3
MDGD-60SJ-60Ø60/30:1 40 18.5
