Specifications
1)100hp Marine Diesel Engine2)direct injection
3)sea water exchanger and sea water pump
4)gearbox
5)2 years warrany
1, 100hp Marine Diesel Engine Specification,
| Engine Model | R4105AZLM |
| Type | water-cooled,inline,4-stroke,direct injection |
| Rated Power | 100hp |
| Rated Speed | 1500rpm-2000rpm |
| Air intake type | turbocharged |
| cylinder number | 4 |
| Bore*Stroke | 105*130mm |
| Piston Speed | 6.25m/s |
| Compression Ratio | 16:1 |
| Mechanical Governor Rate | ≤5% |
| Electronical Governor Rate | ≤1% |
| Noise Level(dBA) | ≤95 |
| Exhaust Temperature(°C) | ≤600 |
| Rated Fuel Consumption(L/h) | 19 |
| Displacement(L) | 4.5 |
2,Advantages,
a,Steady and reliable performance
This series of diesel engines are optimized designed by container the structure performance,high intensity of original diesel engine. The performance and operation are thus more steady. And the lifetime of engine has been prolonged.
b,Strong power
All series engines are developed on basis of original model by optimizing its fuel system, air intake and exhaust, cooling system and transmitting system. Its power can be used more efficiently.
c,Good adaptability
Huatian engine, with perfect spare parts, various air filter, muffler,alternator,air compressor,fan, radiator,oil cooler, electrical stop solid, electrical governor. We can design accordoing to customers' specical demand.
d, Excellent and strickly team of research and development department
|
|
|
|

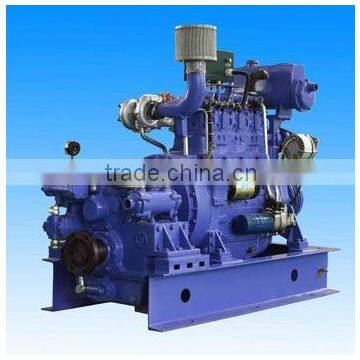

3,Marine Diesel Engines Pictures for reference,
|
|
|
|
