Specifications

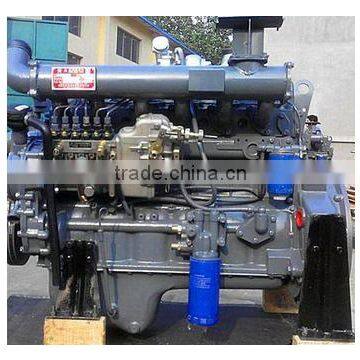

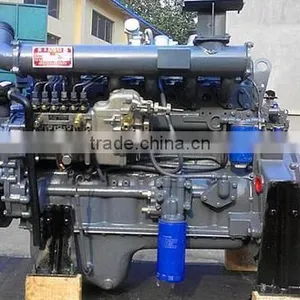

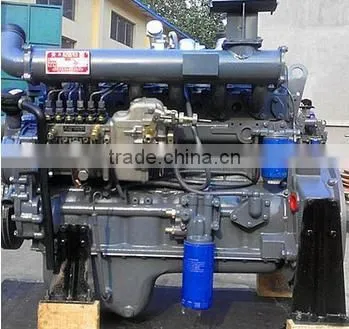

1).Ricardo 150kw diesel engine2).CE/ISO Certificated
3).Water Cooling
4).1 Year's warranty
Type | 4 Strokes, Water Cooling, Inline, Swirl Combustion Chamber |
Model | R6105IZLD2 |
Rated Power/Speed(kw/rpm) | 150/1800 |
Cylinder Number | 6 |
Bore*Stroke | 105*135 |
Total Displacement of Piston(L) | 6.49 |
Pressure Ratio | 17 |
Firing Order | 1-5-3-6-2-4 |
Air Intake Type | Turbo. |
Average Effective Pressure(Kpa) | 1232 |
Fuel Consumption(g/kw.h) | 224 |
Oil Consumption(g/kw.h) | 1.63 |
Exhaust Temperature | 650 |
Crankshaft ratating) | Inverse Hour(Facing to the power output end) |
Cooling Mode | Forced Cooling |
Provide Product
1. Offer the main Power range from 10kva~1500kva.
2. Adopt the famous engines like Weichai engines, Deutz engines, Steyr engines, Cummins engines, Perkins engines, Ricardo engines, Shangchai engines, Lovol engines, Daewoo engines etc. These are widely used all over the word.
3. We only adopt standard high-level quality alternator, to produce the high-level diesel generators.
4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.Intelligent type Generators
5. All spare parts serviced directly by our company.
Weifang huatian Diesel Engine Co., Ltd, is located in weifang city, of Shandong province.Hundreds of workers , 10 years experience, CE and ISO9001 certificated, less two hour reach Qingdao port. So far ,we already set up more than 20 sole agencies and dealer in the whole world ,such as Australia, Europe, Southeast Asia, East-Asia, Mid-east, America and Africa. Supply the fast and efficient after sales service. that’s how we keep superior quality and global valued customers.
