Specifications
1)Chinese weifang ricardo Diesel Engine2)10kw to 230kw
3)Water Cooled
4)Lifetime Service
5)2 Years Warranty
1,Chinese Brand Diesel Engine Specification,
| Diesel Model | 295/2100/495/K4100/K4102/K4106/R4105/R6105R6110//R6113/R6126 |
| Rated/Prime Power(kw/hp/rpm) | 10kw/13hp to 230kw/313hp |
| 110% Loading Power(kw/hp/rpm) | 11kw/15hp to 253kw/344hp |
| Rated Speed(rpm) | 1500/1800/2000/2200 |
| Type | Water Cooling, Inline, Direct Injection, 4 Strokes |
| Displacement of Piston(L) | 3.26 |
| Cylinder Number | 4 |
| Bore*Strokes(mm) | 95*115 |
| Air Intake Model | Turbocharged |
| Fuel Consumption(L/H) | 10 |
| Piston Speed(m/s) | 6.25 |
| Mechanical Governor Rate | ≤5% |
| Electronical Governor Rate | ≤1% |
| Noise Level(dBA) | ≤95 |
| Cooling Model | Forced Water Cooling by Radiator |
| Start Model | Electric by Battery |
| Cransshaft Rotation Direction | Inverse Hour(Facing to the power output end) |
| Application | Generator, Fixed Power with clucth& belt pulley, etc. |
| Packing Dimension(mm) | 1150*700*1120 |
| Gross Weight(kg) | 450 |
2,Advantages,
a,Steady and reliable performance
This series of diesel engines are optimized designed by container the structure performance,high intensity of original diesel engine. The performance and operation are thus more steady. And the lifetime of engine has been prolonged.
b,Strong power
All series engines are developed on basis of original model by optimizing its fuel system, air intake and exhaust, cooling system and transmitting system. Its power can be used more efficiently.
c,Good adaptability
Huatian engine, with perfect spare parts, various air filter, muffler,alternator,air compressor,fan, radiator,oil cooler, electrical stop solid, electrical governor. We can design accordoing to customers' specical demand.
d, Excellent and strickly team of research and development department
 | |
| |

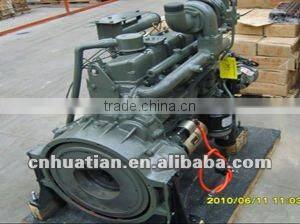

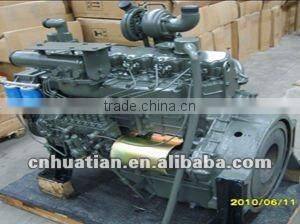

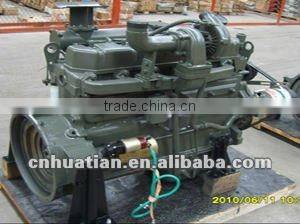

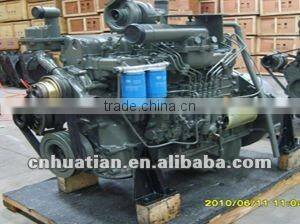

3,Chinese weifang ricardo Diesel Engines Pictures for reference
| |
| |
