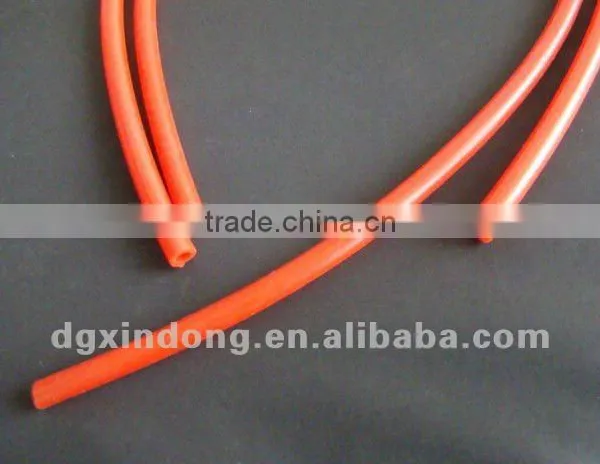

Heat Resistant Silicone Tubing ASR1095

Name: Heat Resistant Silicone Tubing ASR1095
Brand: Xindong
Price: USD $0.12 - 0.28 / Meter

FOB Price

USD $0.12 - $0.28 / Meter

1000 Meters(Min.Order)

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Xindong

Model Number:

ASR1095

Silicone Rubber Tube ASR1027

1. Approval: ROHS Black Rubber Foam Insulation Tubes

2. Common wall thickness: +/-0.2mm

3. Operating Temperature: -60C~+250C

The Silicone Rubber Tube of heat resistance is also called Flame Retardant Silicon Rubber Hose, which consists of Extrusion Tube and Special-shaped Tube or Strip. The Flame Retardant Silicon Rubber Hose is made by Common Silicone Rubber which refined into double roll mixing machine or closed kneading machine together with flame retardant. As the flame retardant grade, the Flame Retardant Silicon Rubber Hose is divided into UL94HB, UL94V2, UL94V1, UL94V0 and DIN5510.
Item	Unit	Test Standard	Targeted Value
Hardness	HA	GB/T 6031-1998	50-80
Appearance			White or grey
Proportion(25°C)	g/cm3	GB/T 533-1991	1.15-1.26
tensile strength	MPa	GB/T 528-1998	6.5-8.5
elongation at break	%	GB/T 528-1998	≥180
tensile set	%	GB/T 528-1998	6.0-8.0
tearing strength	kN/m	GB/T 529-1999	≥9
Temperature Renge	°C		-60°C-200°C

Specifications:

Size	Diameter		Thickness
Size	I.D.	O.D.	Standard	Minimum
0.8*1.8	0.8±0.1	1.8±0.1	0.5	0.38
1.0*2.0	1.0±0.2	2.0±0.2	0.5	0.38
1.2*2.2	1.2±0.2	2.2±0.2	0.5	0.38
1.5*2.5	1.5+0.4/-0.2	2.5+0.4/-0.2	0.5	0.38
2.0*3.0	2.0+0.4/-0.2	3.0+0.4/-0.2	0.5	0.38
2.5*3.5	2.5+0.4/-0.2	3.5+0.4/-0.2	0.5	0.38
3.0*4.0	3.0+0.4/-0.3	4.0+0.4/-0.3	0.5	0.38
3.5*4.5	3.5+0.4/-0.3	4.5+0.4/-0.3	0.5	0.38
4.0*5.0	4.0+0.5/-0.4	5.0+0.5/-0.4	0.5	0.38
4.5*5.5	4.5+0.5/-0.4	5.5+0.5/-0.4	0.5	0.38
5.0*6.0	5.0+0.5/-0.4	6.0+0.5/-0.4	0.5	0.38
6.0*7.0	6.0+1.0/-0.5	7.0+1.0/-0.5	0.5	0.38
7.0*8.4	7.0+1.0/-0.5	8.4+1.0/-0.5	0.7	0.56
8.0*9.4	8.0+1.0/-0.5	9.4+1.0/-0.5	0.8	0.56
9.0*10.6	9.0+1.0/-0.5	10.6+1.0/-0.5	0.8	0.68
10*11.6	10.0+1.0/-0.5	11.6+1.0/-0.5	0.8	0.68
11.0*13.0	11.0+1.0/-0.5	13.0+1.0/-0.5	1	0.89
12.0*14.0	12.0+1.0/-0.5	14.0+1.0/-0.5	1	0.89
13.0*15.0	13.0+1.0/-0.5	15.0+1.0/-0.5	1	0.89
14.0*16.0	14.0+1.0/-0.5	16.0+1.0/-0.5	1	0.89
15.0*17.0	15.0+1.0/-0.5	17.0+1.0/-0.5	1	0.89
16.0*18.0	16.0+1.0/-0.5	18.0+1.0/-0.5	1	0.89
17.0*19.0	17.0+1.0/-0.6	19.0+1.0/-0.6	1	0.89
18.0*20.0	18.0+1.0/-0.6	20.0+1.0/-0.6	1	0.89
19.0*22.0	19.0+1.0/-0.6	22.0+1.0/-0.6	1.5	1.35
20.0*23.0	20.0+1.0/-0.6	23.0+1.0/-0.6	1.5	1.35
OEM is accepted, the size and color could as customer's request.
