China Rubber Tube, Silicone Tube ASR1029
USD $0.12 - $0.28
/ Meter
1000 Meters(Min.Order)
- 10000 Meter / Meters per Month
- Shenzhen or Guangzhou
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Xindong | Model Number: | ASR1029 |
Product Description

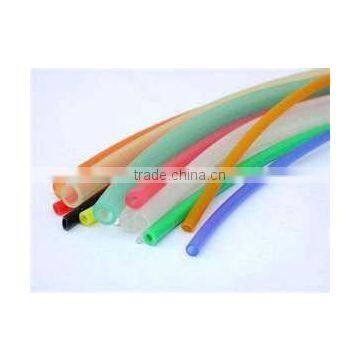

Silicone Rubber Tube ASR1027
1. Approval: ROHS Black Rubber Foam Insulation Tubes
2. Common wall thickness: +/-0.2mm
3. Operating Temperature: -60C~+250C
The Silicone Rubber Tube of heat resistance is also called Flame Retardant Silicon Rubber Hose, which consists of Extrusion Tube and Special-shaped Tube or Strip. The Flame Retardant Silicon Rubber Hose is made by Common Silicone Rubber which refined into double roll mixing machine or closed kneading machine together with flame retardant. As the flame retardant grade, the Flame Retardant Silicon Rubber Hose is divided into UL94HB, UL94V2, UL94V1, UL94V0 and DIN5510. | ||||
Item | Unit | Test Standard | Targeted Value | |
Hardness | HA | GB/T 6031-1998 | 50-80 | |
Appearance | White or grey | |||
Proportion(25°C) | g/cm3 | GB/T 533-1991 | 1.15-1.26 | |
tensile strength | MPa | GB/T 528-1998 | 6.5-8.5 | |
elongation at break | % | GB/T 528-1998 | ≥180 | |
tensile set | % | GB/T 528-1998 | 6.0-8.0 | |
tearing strength | kN/m | GB/T 529-1999 | ≥9 | |
Temperature Renge | °C | -60°C-200°C |
Specifications:
Size | Diameter | Thickness | ||
I.D. | O.D. | Standard | Minimum | |
0.8*1.8 | 0.8±0.1 | 1.8±0.1 | 0.5 | 0.38 |
1.0*2.0 | 1.0±0.2 | 2.0±0.2 | 0.5 | 0.38 |
1.2*2.2 | 1.2±0.2 | 2.2±0.2 | 0.5 | 0.38 |
1.5*2.5 | 1.5+0.4/-0.2 | 2.5+0.4/-0.2 | 0.5 | 0.38 |
2.0*3.0 | 2.0+0.4/-0.2 | 3.0+0.4/-0.2 | 0.5 | 0.38 |
2.5*3.5 | 2.5+0.4/-0.2 | 3.5+0.4/-0.2 | 0.5 | 0.38 |
3.0*4.0 | 3.0+0.4/-0.3 | 4.0+0.4/-0.3 | 0.5 | 0.38 |
3.5*4.5 | 3.5+0.4/-0.3 | 4.5+0.4/-0.3 | 0.5 | 0.38 |
4.0*5.0 | 4.0+0.5/-0.4 | 5.0+0.5/-0.4 | 0.5 | 0.38 |
4.5*5.5 | 4.5+0.5/-0.4 | 5.5+0.5/-0.4 | 0.5 | 0.38 |
5.0*6.0 | 5.0+0.5/-0.4 | 6.0+0.5/-0.4 | 0.5 | 0.38 |
6.0*7.0 | 6.0+1.0/-0.5 | 7.0+1.0/-0.5 | 0.5 | 0.38 |
7.0*8.4 | 7.0+1.0/-0.5 | 8.4+1.0/-0.5 | 0.7 | 0.56 |
8.0*9.4 | 8.0+1.0/-0.5 | 9.4+1.0/-0.5 | 0.8 | 0.56 |
9.0*10.6 | 9.0+1.0/-0.5 | 10.6+1.0/-0.5 | 0.8 | 0.68 |
10*11.6 | 10.0+1.0/-0.5 | 11.6+1.0/-0.5 | 0.8 | 0.68 |
11.0*13.0 | 11.0+1.0/-0.5 | 13.0+1.0/-0.5 | 1 | 0.89 |
12.0*14.0 | 12.0+1.0/-0.5 | 14.0+1.0/-0.5 | 1 | 0.89 |
13.0*15.0 | 13.0+1.0/-0.5 | 15.0+1.0/-0.5 | 1 | 0.89 |
14.0*16.0 | 14.0+1.0/-0.5 | 16.0+1.0/-0.5 | 1 | 0.89 |
15.0*17.0 | 15.0+1.0/-0.5 | 17.0+1.0/-0.5 | 1 | 0.89 |
16.0*18.0 | 16.0+1.0/-0.5 | 18.0+1.0/-0.5 | 1 | 0.89 |
17.0*19.0 | 17.0+1.0/-0.6 | 19.0+1.0/-0.6 | 1 | 0.89 |
18.0*20.0 | 18.0+1.0/-0.6 | 20.0+1.0/-0.6 | 1 | 0.89 |
19.0*22.0 | 19.0+1.0/-0.6 | 22.0+1.0/-0.6 | 1.5 | 1.35 |
20.0*23.0 | 20.0+1.0/-0.6 | 23.0+1.0/-0.6 | 1.5 | 1.35 |
OEM is accepted, the size and color could as customer's request. |
