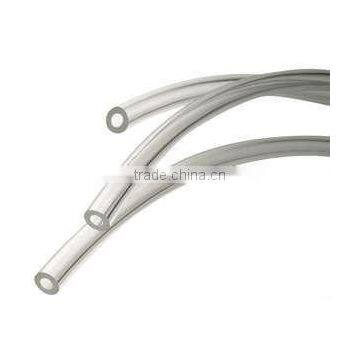

PVC Clear Level Hose Pipe APT-027

PVC Clear Level Hose Pipe APT-027 thumbnail-1
PVC Clear Level Hose Pipe APT-027 photo-1
US$ 0.01 - 1.2 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Xindong
Model Number:
APT-027
Contact Supplier Request Quote Chat Now
Dongguan Xindong Rubber Plastic & Hardware Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Xindong
Model Number APT-027
Type Insulation Sleeving
Material Other, PVC, UL PVC
Application Low Voltage
Rated Voltage 600 v
Tensile Strength 10.4, ≥10.4

flexible PVC Clear Level Hose Pipe APT-027





Specifications:

       PVC Electrical Pipe
       1.105 Centigrade UL PVC Material
       2.Voltage Rating 300V, 600V
       3.Excellent insulation
       4.UL224 VW-1




Product Description:

  • Specification: φ1.00mm ~ φ20.00mm
  • 105oC UL PVC material
  • Rated voltage: 300V, 600V
  • Excellent insulation and flexibility
  • UL approved
  • Meet RoHS standards

Application: Be popular used in H-grade motors, home electrical appliances dielectric, etc.





Colors: clear, black, white, red, yellow, brown, gray and etc.







Characters:


Item

Unit

Test Condition

Numerical Value

HCY-3

HCY-6

Voltage rating

v



300

600

Temperature rating

°C

UL224

105

Voltage resistance

Before aging



UL224 23°C

2500V/60sec

After aging

UL224 136°C 168hr

2500V/60sec

Volume resistivity

Ω.cm

UL224

≥1010

Tensile Strength

Before aging

Mpa

UL224 23°C

≥10.4

After aging

Mpa

UL224 136°C 168hr

≥7.3

Elongation

Before aging

%

UL224 23°C

≥100%

After aging

%

UL224 136°C 168hr

≥100%

Flexibility



UL224 136°C 168hr

No cracking

Heat shock



UL224 180°C 4hr

No cracking

Cold bend



UL224 -30°C 1hr

No cracking

Copper stability



UL224 136°C 168hr

No eroding

Flame resistance



UL224

VW-1




Demensions:



AWG      No.

I.D.  (mm)

Wall Thickness (mm)

Packing Size (m/r)

HCY-3

HCY-6

24

0.55±0.1

0.25±0.05



0.40±0.05



305



22

0.65±0.1

20

0.85±0.1

19

0.9±0.1

0.30±0.05

0.40±0.05

305

18

1.0±0.15

0.30±0.05



0.45±0.05





305



17

1.2±0.15

16

1.3±0.15

15

1.5±0.15

14

1.7±0.15

13

1.9±0.2

12

2.1±0.2

0.35±0.05



0.50±0.05

305



11

2.4±0.2

10

2.7±0.2

9

3.0±0.2

0.40±0.05



0.50±0.05



305



8

3.3±0.2

7

3.7±0.2

6

4.2±0.3

0.45±0.05

0.50±0.05

305

5

4.7±0.3

0.45±0.05

0.55±0.05



305



4

5.3±0.3

3

5.9±0.3

2

6.6±0.3

0.45±0.05



0.55±0.05



152



1

7.4±0.35

0

8.3±0.35





Especial directions:









1.The PVC Tubing supplied for the customers should be based upon the samples that both sides have confirmed, not restricted by the numerical capability value above.



2.The company can manufacturer PVC Tubings which have achieved all the numerical capability value above, however the price should be consulted face to face.



3.Our company can manufacture PVC Tubing on customers' requirements of the size and col or.
