Factory produce brass bronze material sea water pump
Overview of sea water pump
QI modelchemical pump is single-stage end-suction (axial suction) cantilever type centrifugal pump, which is used to transport corrosive liquid with viscosity similar towater and without solid particles. The marked and rated performances and dimensions adopt ISO2858 international standard.
It has such characteristics as wide range of performance, high efficiency, high mechanical, chemical and physical level and convenient main tenance etc.
The temperature of transported media of QI model chemical pump is -20-180 C deg .
Through adopting cooling method, it can transport me dia with higher temperatur e if necessary,and is applied to tran sport various corrosive media or media in which pollution is forbidden similar to water in such industries as chemical industry, petroleum, metallurgy , electric power, papermaking, food, pharmacy and synthetic fiber etc.
Range of Performance
Capacity: 3 - 1200 m3/hr
Head: 3 - 128 m
Speed: 2900r/min and1450 rpm
Power of fitted motor: 0.55 - 132kW
Inlet diameter: 32 - 300 mm
The highest work pressure 1.6MPa
QI model pumps are classified as 29 basictypes, among which,22 two-speed (2900,1450r/min) types being
transformedafter cut by the impeller diameter of A and B and C models, the total specifications can be 112.

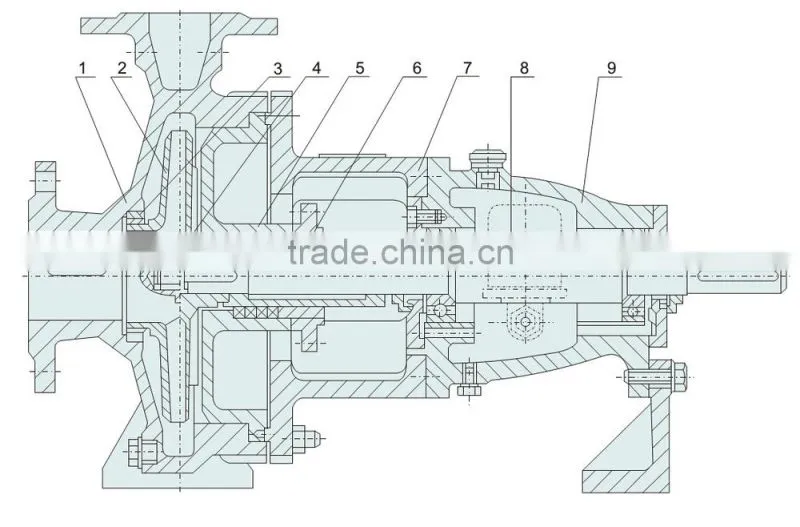

sea water pump Structure
| 1. Pump Casing | 4. Impeller nut | 7. Mid bracket |
| 2. Impeller | 5. Pump cover | 8. Shaft |
| 3. Sealing ring | 6. Seal parts | 9. Hanging stand |
Pump Application
QI Series sea water pump Application
1. Cleanout system.
2. Every series of food machining and medicine produce
3. Environment protect system.
4. Waste water treatment for papermaking, metallurgy, galvanization, smelting, dye.
5. Electroplate and Dyeing system.
6. Industrial and chemical sump treatment
7. Explosion proof motor for oil, alcohol and other explosive liquid
Standard wooden case packing of QS Water irrigation agriculture split casing water Pump
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
24x7 service for your Electric Agriculture farm irrigation split casing water Pump:
