Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Pump Parts > Centrifugal Slurry Pump Rubber Wet End Parts

Centrifugal Slurry Pump Rubber Wet End Parts

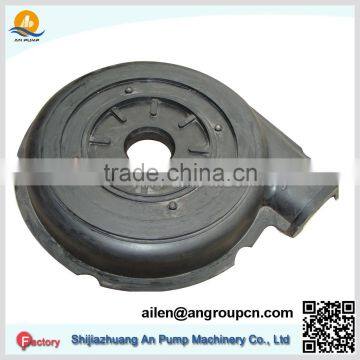

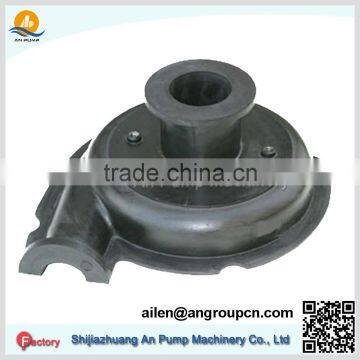

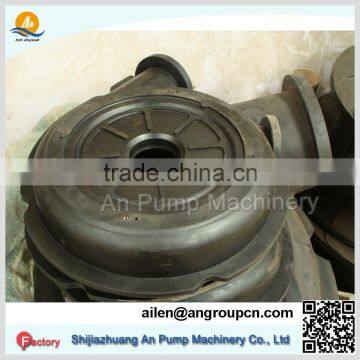

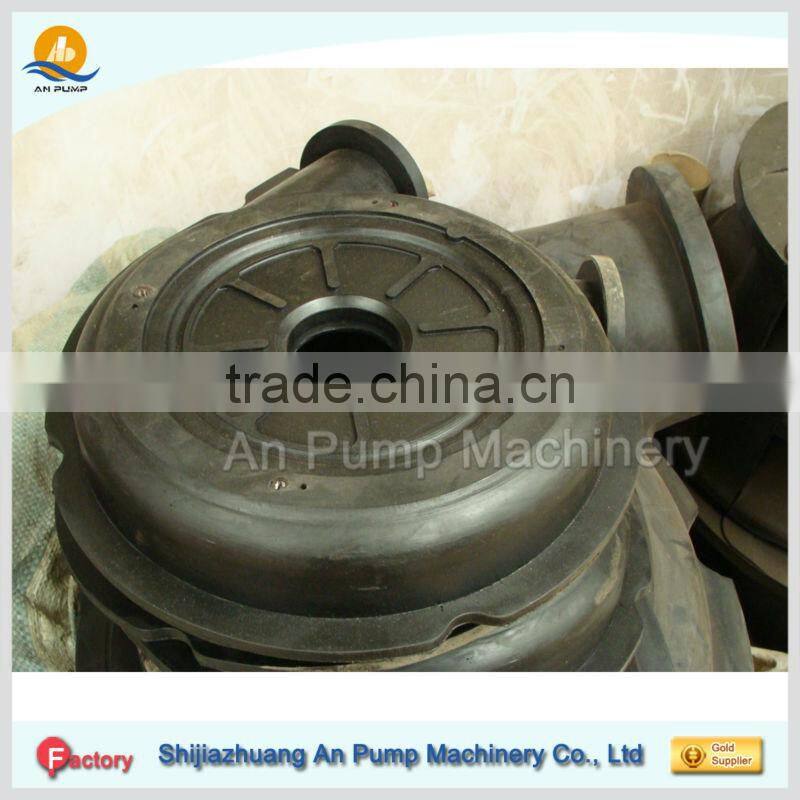

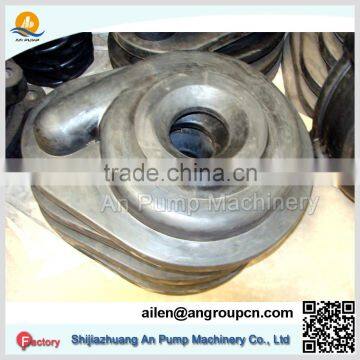

Centrifugal Slurry Pump Rubber Wet End Parts photo-1
Centrifugal Slurry Pump Rubber Wet End Parts photo-2
Centrifugal Slurry Pump Rubber Wet End Parts photo-3
Centrifugal Slurry Pump Rubber Wet End Parts photo-4
Centrifugal Slurry Pump Rubber Wet End Parts photo-5
Centrifugal Slurry Pump Rubber Wet End Parts photo-6
US$ 60 - 900 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
AN PUMP
Model Number:
AM wet end parts
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai/Shenzhen/Dalian
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name AN PUMP
Model Number AM wet end parts
Standard or Nonstandard Standard
Description

Centrifugal Slurry Pump Rubber Wet End Parts Details:

We Shijiazhuang An Pump Machinery is a professional manufacturer of slurry pumps and parts located Shijiazhuang city, China.
There are the full range of pumps and parts.

-Impeller                                     -Metal Liner
-Rubber Liner                             -Bearing Assembly
-Base                                           -Cover Plate & Frame Plate
-Others OEM parts

Materials

Materials for Centrifugal Slurry Pump Rubber Wet End Parts

For the Centrifugal Slurry Pump Rubber Wet End Parts have many different kinds of rubber material, details check below:

Rubber
Code
Natural Rubber
R08
R26
R33
R55
Other Rubber
S21 Butyl
S01 EPDM Rubber
S10 Nitrile
S31 Hypalon
S42/44 Neoprene
S50 Vition

Other Materials

For other parts, also have other materials:

No.
Part Name
Part Number
Standard Material
Also Available Material
1

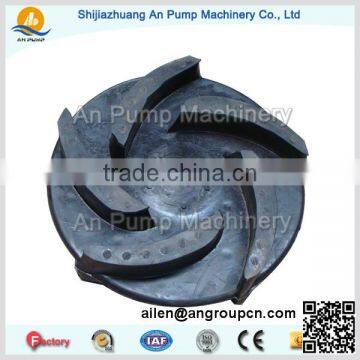

Impeller
*127/*147
A05(Cr27)/Rubber
A33, AA37,A49, A51,SS, Brass
2
Throatbush
*083
A05(Cr27)
A33, AA37,A49, A51,SS, Brass
3
FPL insert
*041
A05(Cr27)
A33, AA37,A49, A51,SS, Brass
4
Volute liner
*110
A05(Cr27)
A33, AA37,A49, A51,SS, Brass, Rubber
5
Expeller ring
*029
A05(Cr27)
Cast iron, A33, AA37,A49, A51,SS, Brass
6
Expeller
*028
A05(Cr27)
Cast iron, A33, AA37,A49, A51,SS, Brass
7
Cover plate liner
*018
Rubber
R08, R26, R33, R55, S12, S10
8
Frame plate liner
*036
Rubber
R08, R26, R33, R55, S12, S10
9
Frame plate
*032
Ductile cast iron
Grey cast iron, SS, Cast steel
10
Cover plate
*13
Ductile cast iron
Grey cast iron, SS, Cast steel

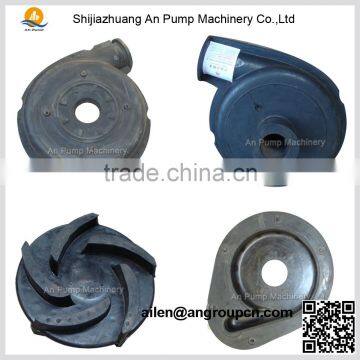

Different Wet end parts and other parts

We list some spare parts in different material for your reference:

Spare Parts Assembly

How to assembly the slurry pump spare parts to be one whole pump?

We have the strict certain assembly process, if you have interest, please email us as below picture showed email.

Our Company

Factory

Our Factory 50,000 m2

Workshop

5 Workshops for different process and product line

Warehouse

Our Warehouse

Team

Our Team

For other requirement, please contact:



Ailen Peng

Email: ailen @

Skype: ailenflypeng

Wechat: AilenPeng

What'sApp:+8615203116877

Fax: +86-311-86271170


ON LINE 24H x 7Days

Packing & Delivery

Packing Details of Centrifugal Slurry Pump Rubber Wet End Parts:

Outside: Standard fumigated wooden case

Inner: Stretch film
Bottom: Wooden pallet

Delivery Details for Centrifugal Slurry Pump Rubber Wet End Parts:

3 days for standard models.

Fumigated wooden case
Water proofing stretch film
Wooden pallet
Our Certifications

Quality Assurance for Centrifugal Slurry Pump Rubber Wet End Parts

We Guarantee the products quality.
Our material are in line with international standards and
We have strictly inspection rule to supervise the production process. We accept third party inspection.

Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide Centrifugal Slurry Pump Rubber Wet End Parts samples ?

A: Yes, we could offer the sample.

Q: What is your terms of payment ?

A: Payment<=3000USD, 100% in advance, but also nego.
If you have another question, pls feel free to contact us as below:
