Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Marking Machine > ZYT Stamping Machine Automatic Marking System

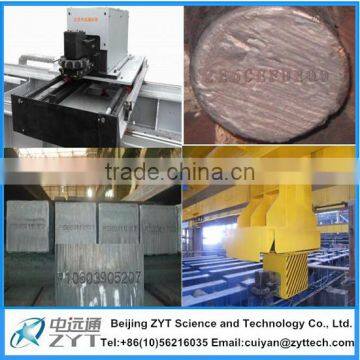

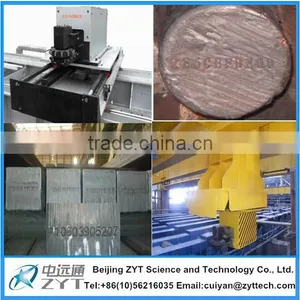

ZYT Stamping Machine Automatic Marking System

Name: ZYT Stamping Machine Automatic Marking System
Brand: AIGER
SKU: 141176278
Availability: InStock

ZYT Stamping Machine Automatic Marking System thumbnail-1

ZYT Stamping Machine Automatic Marking System photo-1

US$ 12,000 - 35,555 MOQ: 1 Set

Key Specifications

Get Latest Price

Control Software:

Software

Place of Origin:

Beijing, China

Brand Name:

AIGER

Contact Supplier Request Quote Chat Now

Beijing Zhongyuantong Science And Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port or as you need

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Control Software Software

Place of Origin Beijing, China

Brand Name AIGER

Model Number ZYT-DHJ-S200-D / L

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

ZYT Stamping Machine Automatic Marking System

Product Description

ZYT Automatic Marking System:Stamping Machine

The codes inputed through HMI are converted to relevant control logic by PLC, when billet reaches its set position, PLC outputs a serial of control signal to drive the character substitution device and punching device to work, thus the character is stamped on the surface of billet one by one.

Features

•Can automatically follow the billet and then stamp quickly.

•Can store codes of billet stamped.
•Can set the stamping location of characters on the billet.
•Can set the stamped character as wanted.

•Adopt unique allotype handling technology for the character to avoid it's unidentified because of unevenness of surface to be stamped.
•Can real time monitor the machine through remote monitoring system.

Technical paramet

Type:	Slab, bloom, rectangle billet
Machine type	Floor, bridge
No. of marking heads	1, 2 or 3 according to need
The position of marking	Side or end of slab
—Type of Character	26 English letters, 10 numbers (0-9)
Height of Character	8 to 25mm (optional)
Width of Character	6 to 16mm (optional)
Number of Character	12 or 16 according to need
Main Supply:	3 x 380V, 50 HZ (other voltages possible)
Power Consumption	Approx. 15 kVA (floor); 20 kVA (bridge)
Communication way	TCP/IP
Compressed Air	Filtered and drained
Pressure	min. 4 bar
Consumption	Max. 100 Nm3/min

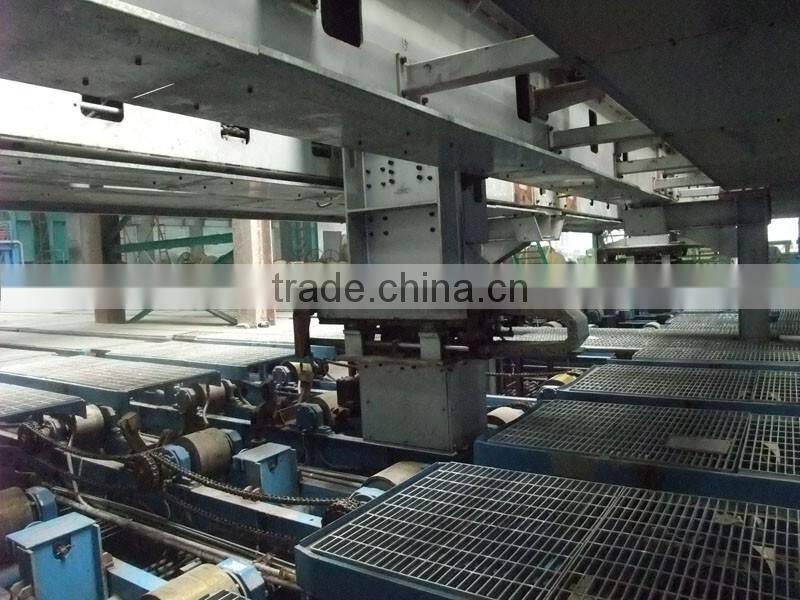

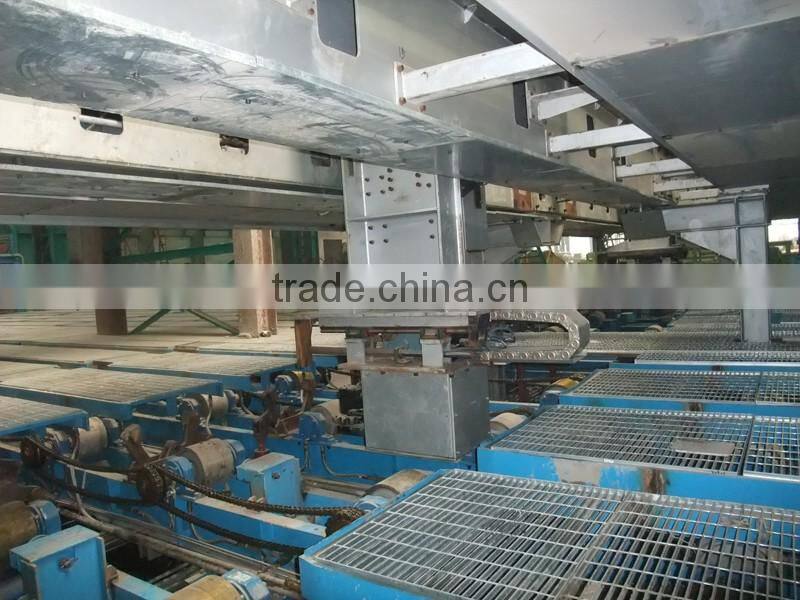

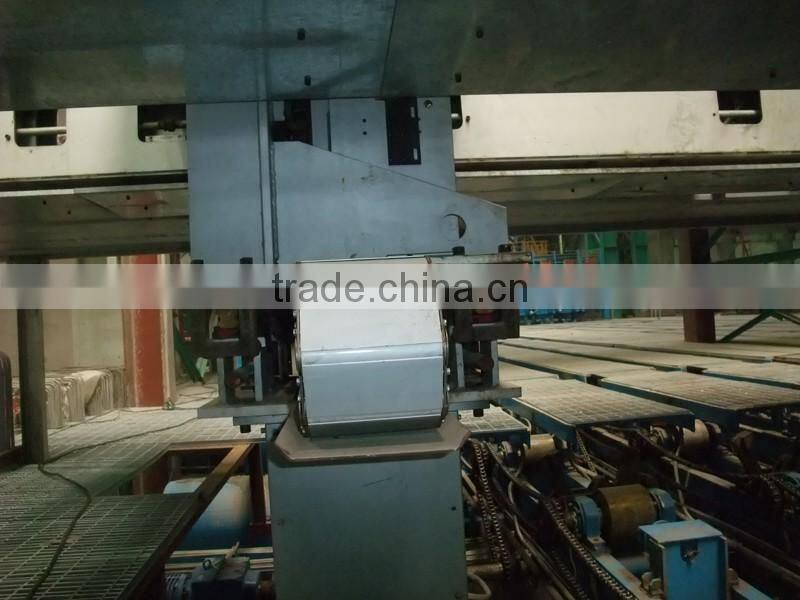

installation

Our Typcial Customer --Hebei Jingye Iron & Steel Group,CISDI ENGINEERING CO.,LTD,RIZHAO STEEL HOLDING GROUP CO., LTD.Etc.The Follow project is in ZhongTian steel China .

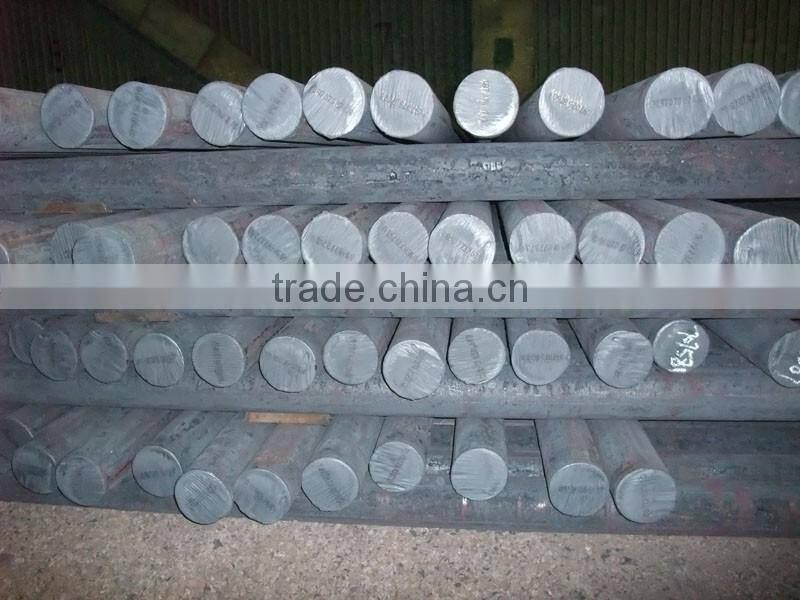

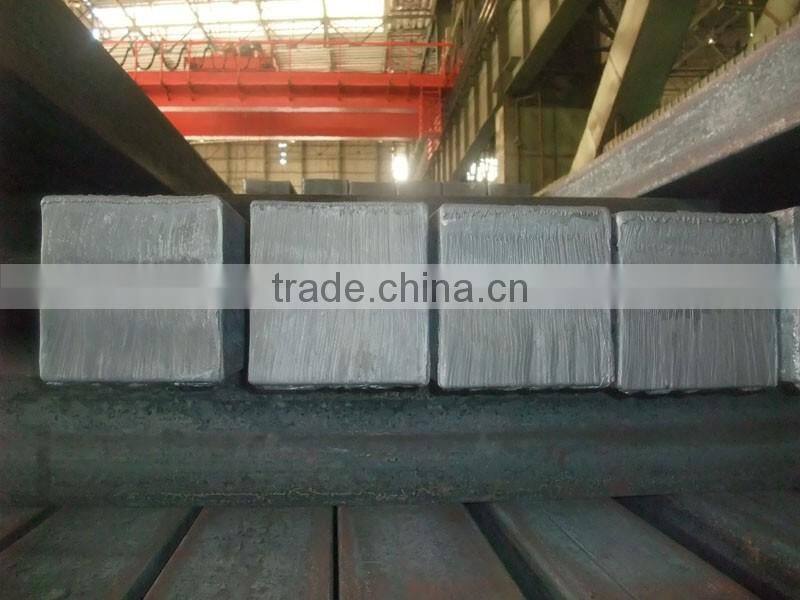

Stamping effect
