Metal Marking machine

The goods are packed in airtight container

Specifications

1.Voltage: Three-phase 380V/50HZ
2.Air pressure: filtered air or nitrogen less or equal to 0.6Mpa
3.Equipment Size: According

Equipment overview

 The ZYT billet marking machine, which is the automatic billet marking equipment widely used in iron and steel enterprises at present , it is generally through the host computer or local industrial machine for continuous casting billet of setting identification code, through the PLC control driver of marking machine positioning device and automatic device, achieved by the use of impact cylinder, the billet identification code accurately and clearly identified in hot casting billet or side.The system has complete functions, friendly man-machine interface, stable and reliable performance.It's the first choice of Iron and steel enterprises to realize the automation of continuous casting billet marking device. Equipment composition

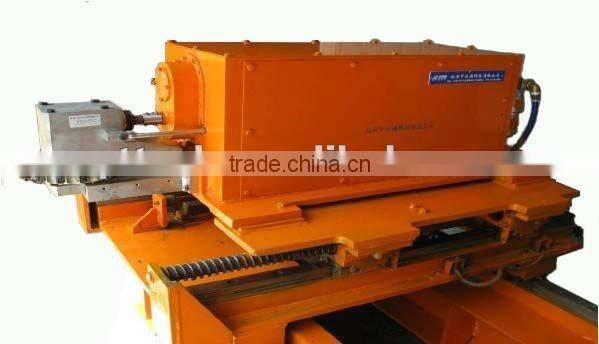

Constituted by the seven components: body mechanical systems, running gear, sliding bodies, elevator, marking electronic control gas agencies and regulators, software, operating control.



Equipment type

ZYT-DHJ-S200-D / L D-floor type; L-door beam

System parameter

1. Voltage: Three-phase 380V/50HZ
2. Air pressure: filtered air or nitrogen ≤ 0.6Mpa
3. Equipment Size: According to the site
4. Billet temperature: ≥ 400 °C
5. Billet section: flatness tolerance <0.5mm, section slope <1 °
6. Height adjustment: according to the actual needs of design (gate beam)

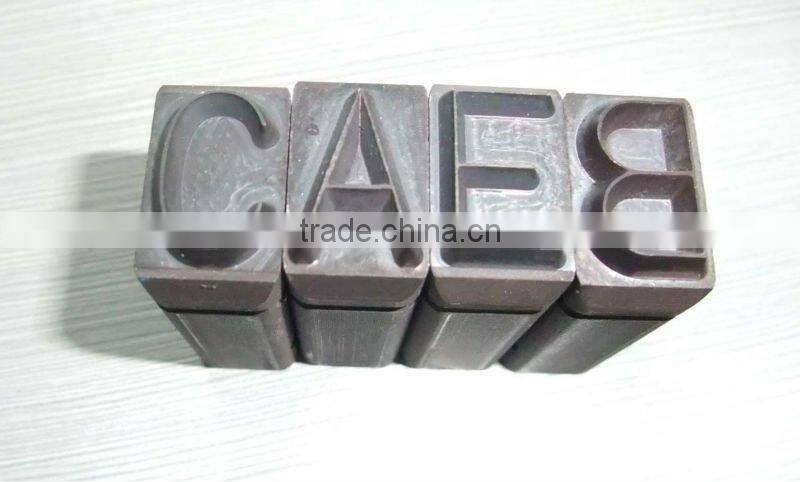

7. Content characters: the digits 0 to 9, letters
8. Character height: 8 ~ 25mm (optional)
9. Print speed: 1.2 ~ 1.5s / characters
10. Impact frequency: 40 ~ 50 times / min
11. Sliding speed: <0.3s / characters
12. Servo drive: with a high temperature resistant, low speed, high torque motor
13. Turntable speed: <0.3s / characters
14. Sliding accuracy: error <0.5mm
15. Landing accuracy: error <1mm
16. Print Depth: 1 ~ 3mm
17. Communication: standard industrial Ethernet, CANopen and PROFIBUS variety of communication
18. Gas consumption: ≤ 100N m3 / h
19. Modes of operation: computer / remote / manual operation. switch , operation control system can easily Connection with  Level 2 system of  users.
20. P L C: SIMENS S7 ~ 300 type
21. Distance from prefix to the billet end: 75mm ~ 100mm

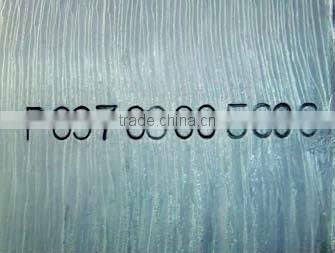

Marking effect chart

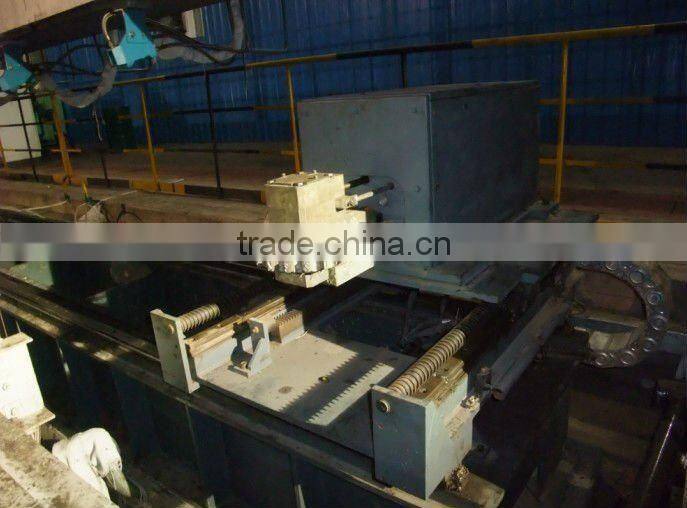

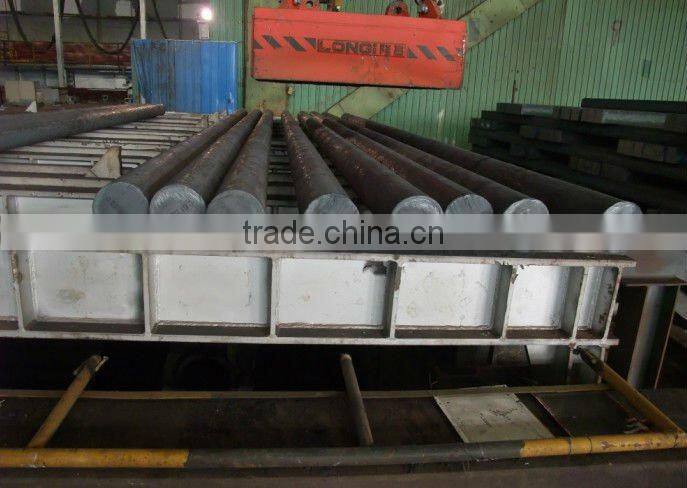

Working site
