Distance Measurer With Laser Pointer

The ZYT-0050-1 / 2 series High temperature laser range finder have IP66 heavy industry protection grade ,and the optional protective, dust, air cooling, water cooling and quickly change device of window,which can ensurethe instrument be used safely and effectively in high temperature, dust and other harsh industrial environment .

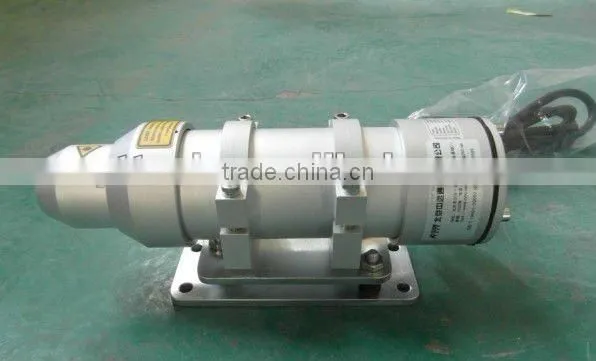

The ZYT-0050-1 / 2 series High temperature laser range finder with a spring cushion three point mounting bracket, installation simple solid. The mounting bracket base has a horizontal and a vertical two kinds of installation.

Product features

1.2level laser grade

2.Near distance measurement without reflector

3.up to millimeter level measurement accuracy

vides a variety of interfaces such as: RS232 / 422,4-20mA current, ProfiBus, E-net

5. IP 66level of protection, high protection level

6.low power consumption

lid structure compact

8.a wide range of applications

Product type

ZYT-0050-1  10Hz    RS232/RS422

ZYT-0050-2  50Hz    RS232/RS422
Working principle

The industrial laser ranging sensors usesthe phase comparison principle for measurement. Laser sensor transmits different frequency visible laser beam from the object to be measured, receiving back scattering laser, and then compare the received laser signal to a reference signal,finally by the microprocessor calculates the corresponding phase shift the distance corresponding to between objects. The measurement precision can reach mm level.
