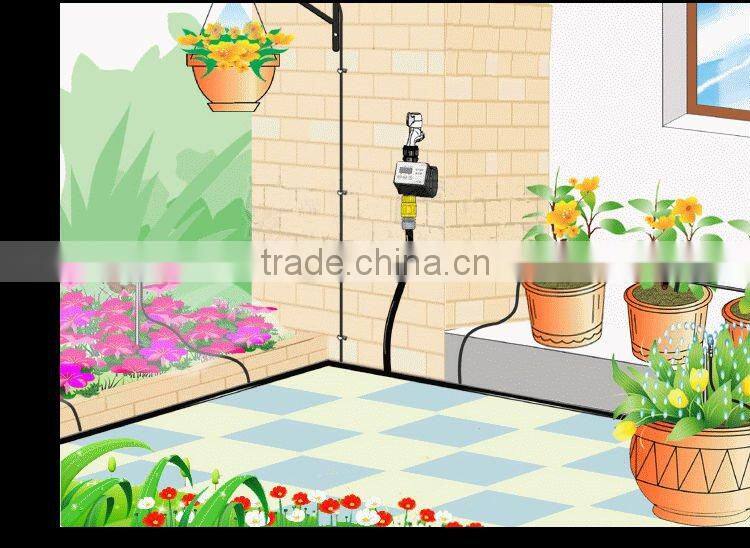

Irrigation Systems in GardenHX-T612

Solar Irrigation SystemHX-T612

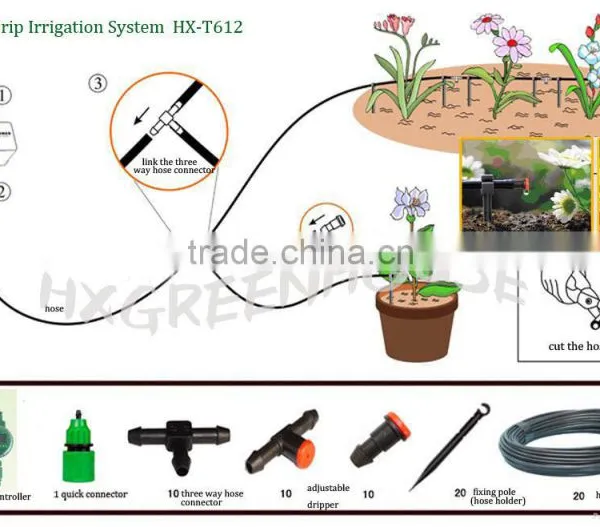

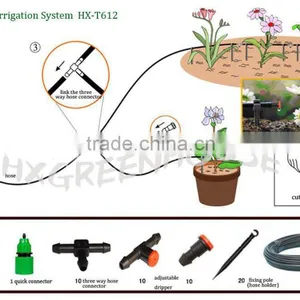

Assembly and use instruction

• GS-519 electronic timing watering device which has worked by 9V laminated cell. In general, it can work over half a year, even more than half a year. The schedule of opening you can set as 00-99 minutes (It can be adjustable by yourself), and the time of shutdown as 00, 02, 04, 06, 08, 12, 24, 48, 72 and 96 hours (It can be adjustable by yourself).

The function of controller panel

• LCD display

It will shows as“00 00”when turns on; There are two numbers on the left is the opening time (show as minutes), and the other two numbers on the right is the time of shutdown (show as hour). The method of setting the time that please setting the opening time at first, and then the shutdown time.

• The button of timing open which is used for setting opening time.

There are two numbers on the left of the LCD which it will be increased when you press this button once that it will increase one minute, Even, if you are busy for press this button again and again that it will increase step by step. But please care for the setting range can be as from 00-99 minutes.

• The button of timing shutdown which is used for shutdown time.

When you press the button, there are two numbers on the right of the LCD is twinkleing which it will be increased when you press this button once that it will increase one minute, and please be care for the setting range as 00, 02, 04, 06, 08, 12, 24, 48, 72, 96. At last, after five times for flashing when you has finished press the button,. That’s mean to say the microcomputer has confirmed the setting, Meanwhile, it will turn on that the water will be flow out(The time is based on the turn on of the first time which it has started). Then it will based on the setting time for the operation again and again. (When you has changed the shutdown time that the setting time will be change again and has confirmed with this time which you has changed, but the openning time was not limited).

• For example:  There are two numbers on the left has showed as 05, and the other has showed as 24 on the right, it means to say that the water has flew out for 5 minutes. Even, after 24 hours that it has flew out the water for 5 minutes again According to this again and again. If the two numbers on the left are 10 and the two numbers on the right as usual in this period, it means to say that it can turn on the button and the water will be flew out for 10 minutes per 24 hours.
• Manual button
• Press this button once time that it will turn on and repeat this step that it will be turn off.
• Icon show

this is the icon of water flow, when the triangle symbol is twinkleing in here, it means to say the tap has turn on, By contrast, it means to say the tap has turn off.

this is the icon of under voltage, when the triangle symbol is twinkleing in here, it means to say that you should changed a new battery.

this is the icon of rain, when the triangle symbol is twinkleing in here, it means to say it will be raining and which is not good for turn on (But you can connect with the rain sensor which can help to come true the tap turn on. Attention please, this rain sensor unit has not included in this equipment, but if you in need that you can pay for the extra money pay for them), the product will be working again when it has stopped raining.

Notice: Don’t put it in the sun or some places with high temperature. (It will be shorten for the using time).
