Application

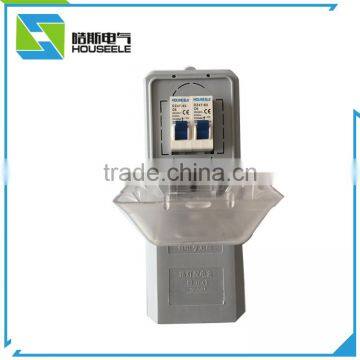

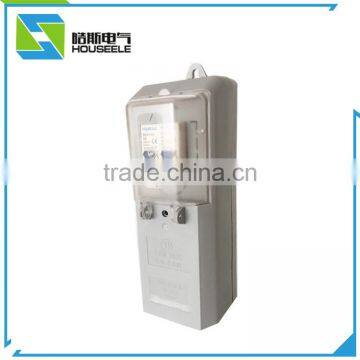

This connection box is intended to be installed in lighting ccolumns at the connection between looped-through feeder cables and the luminaire components protected by fuses.Special equipment as MCBs,timers,residual current devices or the like can be intergrated on DIN rails
Selection Criteria
- For application inside of Lighting columns
Pole diameter: ≥ 90 x 300 mm
Door size: ≥ 110 mm
- 4 sliding terminals for
2 cables 4 - 50 mm2 or
3 cables 4 - 35 mm2
- Optional Fuses D II (E27) up to 25 A
- Optional for standard installation devices on DIN-rail attachable up to 3 TE width (3 x 18mm),max.height of devices 75 mm.
Technical Data
- Acc. IEC 60439-1
- Impact resistant thermoplastic
- All metal parts corrosion protected
- Transparent fuse cover
- Ingress Protection: IP 43
- Class of Protection II
- Range taking self adapting cable sealing
Φ 16 - 35 mm feeder cable
Φ 8 - 14 mm luminaire cable
(2 sealing for 2 luminaire cables 3 x 1.5 mm2 - 5 x 2.5 mm2)
or 2 x 4 wires Φ 1.5 - 3 mm
| Fuse sockets | Cross section(mm2) | Ordering description | |
| for 1 and 2 cables | for 3 cables | ||
| 1 x D II(E27) | 4 x 4 - 50 | 4 x 4 - 35 | EKM - 2035 - 1D2 |
| 2 x D II(E27) | 4 x 4 - 50 | 4 x 4 - 35 | EKM - 2035 - 2D2 |
| none* | 4 x 4 - 50 | 4 x 4 - 35 | EKM - 2035 - 0D0 |
| none,DIN-rail** | 4 x 4 - 50 | 4 x 4 - 35 | EKM - 2035 - 0D0-1R |
* Connection block only and screws for fuse sockets
** Connector block only and DIN-rail for up to 3 MCB
Note: Fuses, adapter screws and screw craps not included.
