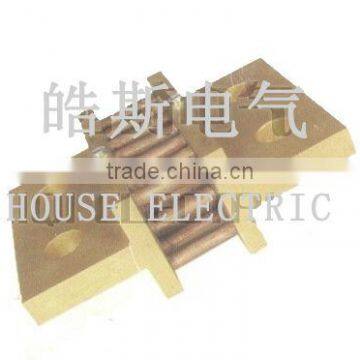

DC Shunt FL-2D Export Series,class 0.5, 6000-8000A

1.Standard type:

 FL-2D Type shunt  is DIN43703 shunt,we improve it and rename it as FL-2D.It is widely used in expand instrument's current,it is used in Communication system,electrical machines,automatic controlled power.

To make sure to provide best quality for customer,we choose high quality  manganin alloy sheet,use copper silver phosphorus welding flux,resistance welding.Each piece is checked by our quality Department before selling to Customer.

Prouduct standard:People Republic of China standard:GB/T 7676-1998  & JB/T9288-1999

Security standard: IEC61010-1:1990

Accuracy class:0.5

Temperature:-40~+60°C,

Relative humidity<95

Overload capacity:120% rated curent,2 hours

Voltage down:75mv

We can do OEM or manufacture according to sample or drawings from customers.

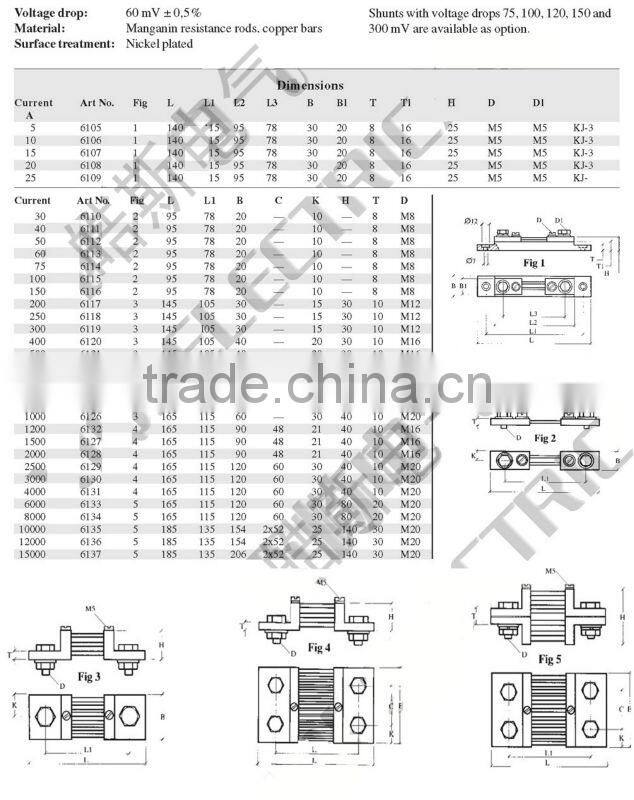

2.Dimension:
