Russia type FL-13 series Shunt,class 0.5, 2000A/75mV

1.Standard type:
1.FL-21 series type shunt ,precision class 0.5
   Specifications:1A-15000A
   Secondary voltage:20mv,30mv,50mv,75mv,100mv and so on.
2.FL-2 series type shunt,precision class 0.2
   Specifications:1A-4000A
   Secondary voltage:20mv,30mv,50mv,75mv,100mv and so on .
3.FL-13 series export type shunt,precision class 0.5
   Specifications:1A-6000A
   Secondary voltage:20mv,30mv,50mv,75mv,100mv and so on
4.FL-15 series type shunt,FL-13A type shunt,FL-29 type shunt,FL-39 type shunt,DIN43073 type shunt,Russia shunt,Korea shunt,India shunt,Turkey shunt,American shunt and so on.


We can do OEM or manufacture according to sample or drawings from customers.

2.Data:

On load temperature-raise:1-50A,lower than 80°C,above 50A,lower than 120°C .

Working temperature:-40~+60 °C ,

humidity:<95 (40 °C )

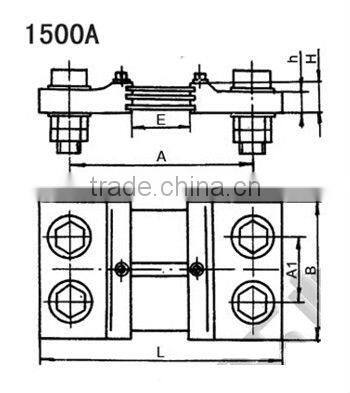

3.Dimension:
