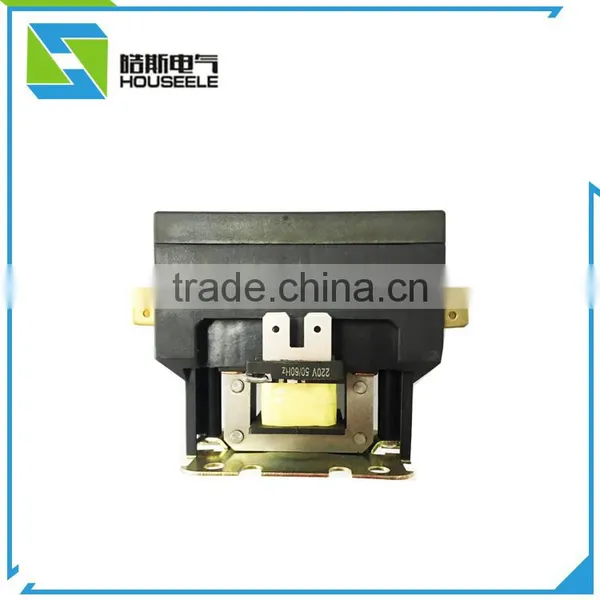

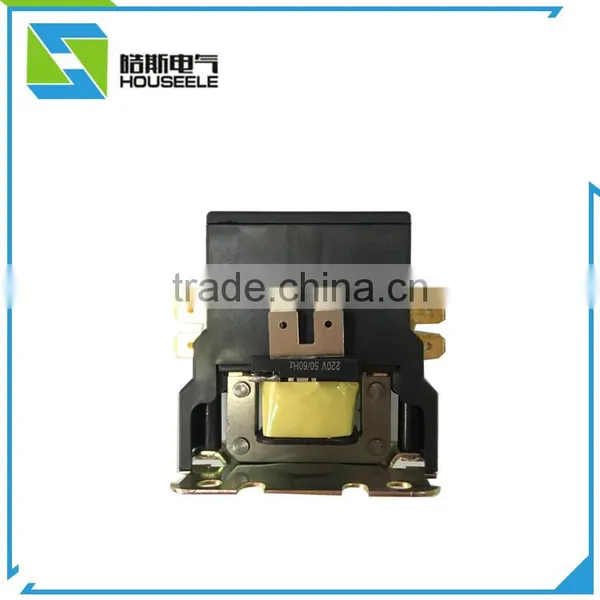

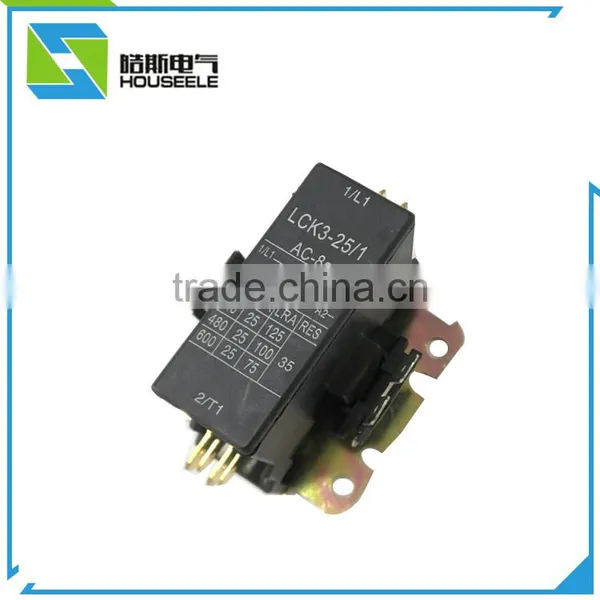

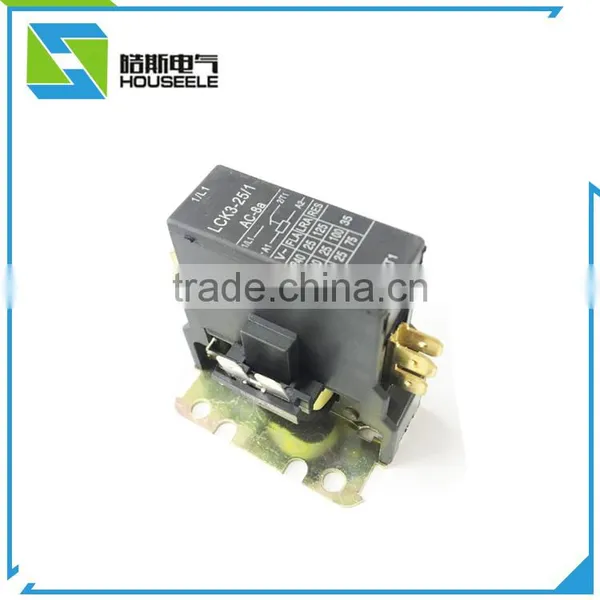

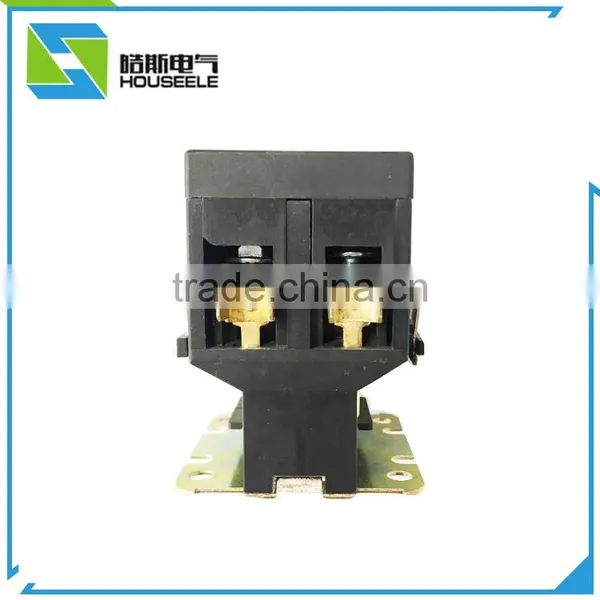

Air Conditioner AC Contactor HS-2M-30-24V

Name: Air Conditioner AC Contactor HS-2M-30-24V
Brand: HOUSE ELE
SKU: 141171102
Availability: InStock

US$ 2 - 2.5 MOQ: 10000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HOUSE ELE

Model Number:

HS-2M-30-24V

Yueqing House Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HOUSE ELE

Model Number HS-2M-30-24V

Electricity Type AC

Number of Pole 1

Phase 1

Main Circuit Rating Voltage Other, 24V

Main Circuit Rating Current Other, 30A

Product Description

Air conditioner AC contactor HS-2M-30-24V

Features:

Straight-Through Wiring,Replaces 1 1/2Pole Devices Used Primarily in Residential Central Air Conditioning.

1`Replaces many Type 117 contactors used by OEM's.

2`Universal style mounting bracket fits existing mounting holes.

3`Screw terminals and 1/4" quick connect terminals for easy installation.

Working temperature:

Temperature: -20℃~110℃

Relative humidity:<95%

Specification:

1.Contactor coil Voltage:24V/110V/220VAC

2.Current:25A

Coil Rating	1 Pole Contactors				2 Pole Contactors
Nominal Coil Voltage	24	120	208/240	227	24	120	208/240	227
Nominal Coil Resistance Ohms	18	420	1800	2500	11	237	1000	1600
Maximum Pick Up Voltage	18	88	177	221	18	88	177	221
Maximum Drop Out Voltage	6-15	20-70	40-140	50-165	6-15	20-70	40-140	50-165
Nominal Lnrush Va@50Hz	31	31	31	31	33	33	33	33
Nominal Lnrush Va@60Hz	28	28	28	28	30	30	30	30
Nominal Sealed Va@50Hz	6	6	6	6	8	8	8	8
Nominal Sealed Va@60Hz	5	5	5	5	6.5	6.5	6.5	6.5
Maximum Coil Voltage	30	132	264	300	30	132	264	300
