CE STANDARD HIGH PERFORMANCE PS FAST FOOD BOX MAKING MACHINE

Cissco Machinery Co., Ltd.

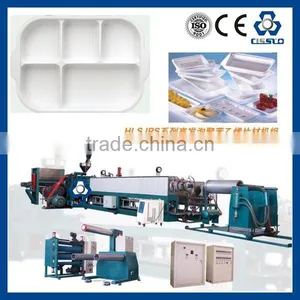

CE STANDARD HIGH PERFORMANCE PS FAST FOOD BOX MAKING MACHINE thumbnail-1
CE STANDARD HIGH PERFORMANCE PS FAST FOOD BOX MAKING MACHINE photo-1
US$ 200,000 - 600,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Sheet
Plastic Processed:
Polystyrene
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Sheet
Plastic Processed Polystyrene
Screw Design Single-screw
Automatic Grade Automatical
Place of Origin Shanghai, China
Brand Name PS FAST FOOD BOX MAKING MACHINE
Model Number PS FAST FOOD BOX MAKING MACHINE
Voltage 380V
Power(W) 300kw-500kw
Dimension(L*W*H) 80m*4m*4m
Weight 20ton
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

PS FAST FOOD BOX MAKING MACHINE
1.Capacity:100-500kg/hr
2.CE standard
3.Mould Thermoforming
4.Low energy consumption

PS FAST FOOD DISPOSABLE CONTAINER MACHINE

1. HLSJPS Series High Foaming Polystyrene Sheet Extruder Unit

1.1 Product details

CissCo is the invigation to supply high foaming polystyrene sheet extruder unit in the market. We have more than 20 years experience in developing and manufacturing this unit. After constant improvement, the machine has the features: high capacity, low power consumption, stable performance, high automation and high quality products.

The high foaming polystyrene sheet extruder unit is mainly used in food packaging, such as food boxes, plates, bowls, industrial protecting packaging, KD board and also can also be used as the thermal insulation and sound- proof material.



1.2 The high foaming polystyrene sheet extruder unit has the following advantages:

•Optimal designed precise screws.

• Equip with precise extrusion elements

•Special designed end of second stage extruder to ensure no leakage.

• With static mixing elements to ensure uniformity of plasticized.



1.3 Main Technical Parameters:

Model Parameters

Unit

HLSJPS-

70/90

HLSJPS-

80/100

HLSJPS-

90/120

HLSJPS-

100/310

HLSJPS-

120/150

Capacity

Kg/h

90-110

110-150

170-210

250-310

370-500

Sheet thickness

mm

1.2-5

1.2-6

1.2-6

1.2-6

1.2-6

Sheet width

mm

500-1100

600-1300

1000-2000

1000-2000

1000-2000

Foaming ratio

times

11-30

11-30

11-30

11-30

11-30

Density

kg/m3

33-90

33-90

18-30

18-30

18-30

Length diameter ratio

L/D

36/1,33/1

36/1,33/1

36/1,33/1

35/1,33/1

35/1,33/1

Cooling type

 Air cooling for first stage extruder,water cooling for second stage extruder

Liner speed

m/min

5-30

5-30

5-40

5-40

5-40

Center height

MM

1100

1100

1100

1100

1100

Compressed air pressure

Mpa

0.7

0.7

0.7

0.7

0.7

Compressed air amount

m3/min

              0.4

0.6

0.8

1.1

              1.5

Butane injection pressure

Mpa

                1

1

1

1

                1

Cooling water amount

T/H

6

8

11

13

18

Cooling water pressure

Mpa

≥0.2

≥0.2

≥0.2

≥0.2

≥0.2

Weight of whole machine

T

11

13

15

18

22

Installation  size(L*W*H)

M

25×4×3

26×4×3

27×4×3

33×5×3

33×5×3

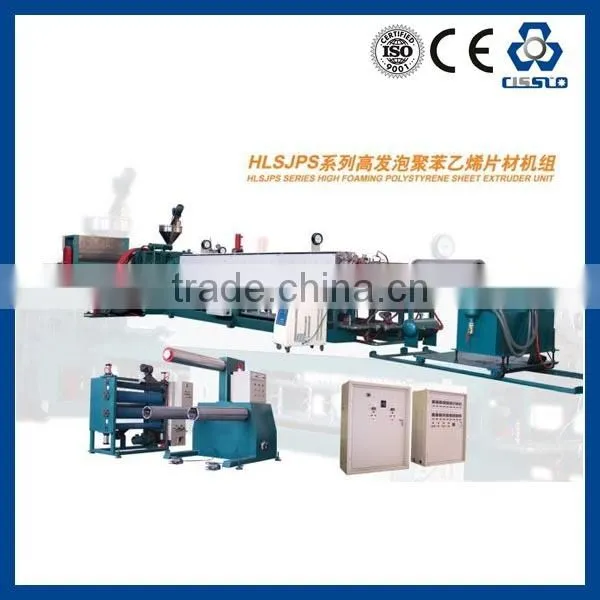

1.4 Pictures:CE STANDARD HIGH PERFORMANCE PS FAST FOOD BOX MAKING MACHINE



2. Food Box Foaming and Trimming Line

2.1 Product details

HLRCH series high speed thermoforming machine and HLZCZ automatic in-line punch press consist of fully automatic forming ,punch cutting and automatic stacking which are the new generation developed by us This line has high efficiency in producing , perfect cutting performance, easy operataion, high durability and trouble free of punching mould (generally more than 8 years) .

HLRCH series high speed thermoforming machine equipped fully servo system on sheet feeding and forming, which can provide high efficiency cycle time within 2 sec/cycle and high accurate , and can make high quality in forming with 60 Tons clamping force It is suitable for vacuum forming. EPS, PVC, PP, BOPS, HIPS, PLA and PET sheet are suitable for this machine.



2.2 High speed thermoforming series technical specifications:

Model Parameters

Unit

HLRCH-

760/1010

HLRCH-

1060/1300

HLRCH-

1100/1300

HLRCH-

1300/1300

HLRCH-

1300/1420

Max.forming area

mm2

762*1016

1065*1295

1120*1295

1270*1295

1270*1420

(30"*40")

(42"*51")

(44"*51")

(50"*51")

(50"*56")

Max.forming depth

mm

127(5")

127(5")

127(5")

127(5")

127(5")

Mould Clamp Force

T

40

60

60

60

60

Max.formingspeed

s/die

1.8

2

2

2

2

Oven length

mm

3000

5300

5300

5300

5600

Mounted capacity

kw

110

315

330

365

400

Weight

T

7

10

11

14

16

Intallation size(L*W*H)

m

10*2*2.5

14*2.2*2.5

14*2.2*2.5

14*2.35*2.5

15*2.35*2.5



2.3 Main Technical Parameters Auto inline Trim Press Unit:

Model parameters

Unit

HLZCZ-760

HLZCZ-1060

HLZCZ-1100

HLZCZ-1300

HLZCZ-1100

(horizontal)

(horizontal)

(horizontal)

(horizontal)

(vertical)

Max.Effective cutting area

mm2

762*400

1065*400

1120*400

1270*500

1000*400

(30"*15.7")

(42"*15.7")

(44"*15.7")

(50"*19.5")

Max.Cutting heigh

mm

150(5.9")

150(5.9")

150(5.9")

150(5.9")

150

Max.cutting force

T

20

35

35

35

35

Cutting efficiency

t/min

160

160

160

160

80

Mounted capacity

kw

15

22

22

25

22

Weight

T

6

8

8

9

6

Installation size

m

5*3.7*3.5

5*4*3.5

5*4.5*3.5

5*4.5*3.5

10*3*2.5

(L*W*H)



2.4 Pictures of PS Foam Fast Food Box Forming and Trimming machineCE STANDARD HIGH PERFORMANCE PS FAST FOOD BOX MAKING MACHINECE STANDARD HIGH PERFORMANCE PS FAST FOOD BOX MAKING MACHINECE STANDARD HIGH PERFORMANCE PS FAST FOOD BOX MAKING MACHINECE STANDARD HIGH PERFORMANCE PS FAST FOOD BOX MAKING MACHINECE STANDARD HIGH PERFORMANCE PS FAST FOOD BOX MAKING MACHINE



3. CONTACT ME FOR FAST FOOD DISPOSABLE CONTAINER MACHINE

1. Contactor: Mr. Louies Liu

2. Skype: louies.cissco

3. Whatsapp: +86 18917527205

4. Cell: +96 18917527205

5. Web:

6. Add: Pudong, Shanghai, China
