Assembly yarn winding production line
1. Technical specification of yarn assembly production line
Method of the operation |
Single-side and stand-up machine |
Spindle No. |
12-48 |
Spindle Gauge |
550mm |
Cone winding Size |
Dia.250*250mm |
Air pressure |
5.5kg-10kg/cm2 |
Water supply |
2-6 drop/sec, 0.5-1.5 L/spindle/hour |
Air consumption |
0.12-0.3m3 /min/spindle |
Creel type |
separate (at one side of machine) |
Machine dimension |
2200*1000*1900mm |
2. Product description of yarn assembly production line
Model |
HLK-A-I |
HLK-A-II |
HLK-A-III |
Basic equipment |
One set of core filament roller |
One set of core filament roller |
One set of core filament roller |
One set of effect filament roller |
One sets of effect filament roller |
three sets of effect filament roller |
|
One set of winding roller |
One set of winding roller |
One set of winding roller |
|
Electric control |
One spindle driven by one motor |
One spindle driven by four motors, and controlled by PLC, touch screen and inverter adjustable speed. |
One spindle driven by six motors, and controlled by PLC, touch screen and inverter adjustable speed. |
products |
Air textured yarn |
Fancy air textured yarn with two colors gradual changing or sudden changing. Long or short knot fancy air textured yarn. |
Fancy air textured yarn with three colors gradual or sudden changing. Long or short knot fancy air textured yarn. |

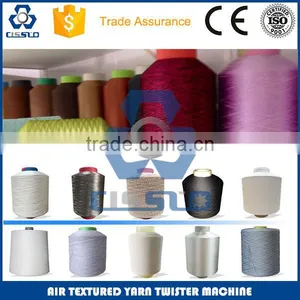

4.Pictures of aty yarn spinning production line
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
