Nonwoven Plastic Fabric Production Machinery

Name: Nonwoven Plastic Fabric Production Machinery
Brand: Nonwoven fabric production machinery
SKU: 141169062
Availability: InStock

Cissco Machinery Co., Ltd.

US$ 900,000 - 1,500,000 MOQ: 1 Set

Key Specifications

Condition:

New

Automatic Grade:

Automatic

Place of Origin:

Shanghai, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Automatic Grade Automatic

Place of Origin Shanghai, China

Brand Name Nonwoven fabric production machinery

Model Number Nonwoven fabric production machinery

Voltage 380v

Power(W) 1000kw

Dimension(L*W*H) 50m*6m*6m

Weight 80tons

Certification CE, ISO9001

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

NONWOVEN FABRIC PRODUCTION MACHINERY

Product Description

I. Parameters of Nonwoven Fabric production Machine

1.1. Products:Dacron hot rolling nonwovens

1.2. Width: 2400mm

1.3. Filament number: 1.5-4dtex

1.4. Gram weight: 15-160g/m2

1.5. Material: Polyester bottle flakes

1.6. Production speed: 0-100m/min

1.7. Output: 3800 tons/year(8000 hours)

1.8. Install power: about 1000KW

1.9. Steam consumption: 500-1000kg/h

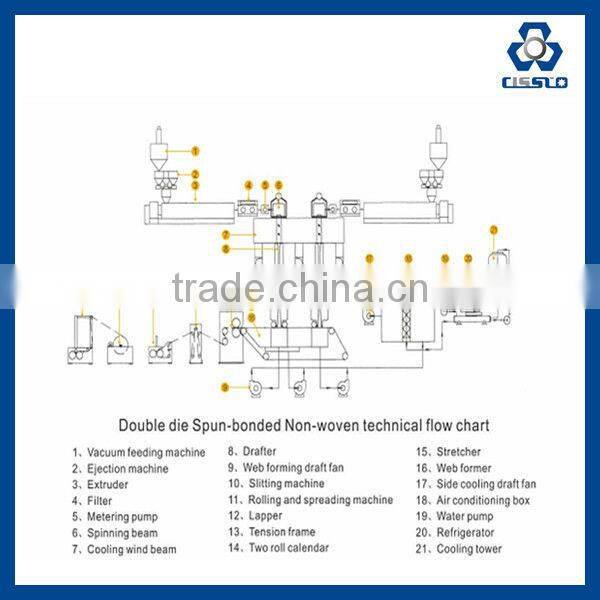

II. Configuration of Nonwoven Fabric production Machine

No.	Name	Type and Specification	Qty.
1	Continuous dry system	600kg/h	1set
2	Flakes delivery system		1set
3	Storage silo	5M³	1pc
4	Screw extruder	φ140	1set
5	Melt filter	Double-cylinder pressurizing	1set
5	Melt filter	Stair: 2x7.5M²; Second: 2x5.5M²	1set
6	Spinning manifold		1pc
7	Metering pump (with transmission)		1set
8	Distributing plate/Spinneret plate	Plate (one for backup)	2sets
9	Suction device		1set
10	Cross air blasting window (aluminum)	Against blowing	1set
11	Slot drafting machine		1set
12	Web forming machine		1pc
13	Hot rolling mill		1pc
14	Lap machine		1pc
15	Splitting machine		1pc
16	Compressor for drafting	40M³/h 1MPa	1set
17	Cross air blasting air conditioner	50M³	1set
18	Thermal oil furnace		3pcs
19	Refrigerator	300 thousand kilocalorie	1pc
20	Cooling tower (with water pump pipes)		1set
21	Vacuum calcinator		1pc
22	Ultrasonic cleaning furnace		1pc
23	Steel platform		1pc
24	Electrical control system		1set
