PLASTIC FLAT YARN EXTRUSION MACHINE
I. SPECIFICATION OF PE FLAT YARN MAKING MACHINE
The SJPL series of high-speed flat film stretching line is advanced foreign technology and combined with reference to domestic technology independent development of specialized production equipment. The equipment is used by micro-processor control frequency conversion and advanced electrical digital analog control technology. Science principal technical index of line reach international advanced level. The line has the performance of high speed, top output and good forming quality of the fiber drum. We apply automatic filter changing structure and fibrillating structure (for flexographic packing bag and fibrillating sewing string) according to customer’s requirement.
Our machine has such characters as follows,
- Specially designed screw can be used for both virgin and recycled material
- Six moisture absorption pipes dry the film perfectly
- Double layer oven is opened by double cylinder which makes the structure more

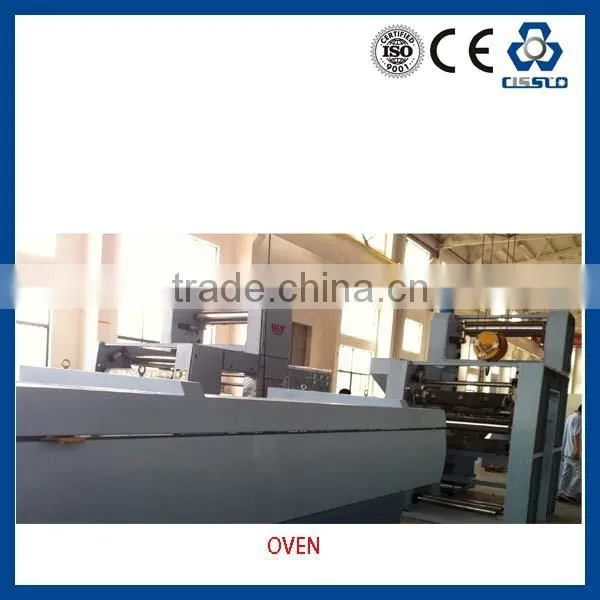

- The oven use PID intelligent temperature control and power regulator
- Specially designed passage, making hot wind distribute evenly
- The take-off units use casting frame to keep rollers running smooth
- High quality reciprocated screw with critically process
- European standard safeguard system
The principal technical index of this line reaches international advancing level.
This line has the performance of high speed, high production, low energy consumption, good forming quality of the bobbin.
The structure of this line is compact with a pleasing appearance, smooth running, flexible and reliable control excellent manufacturing techniques, convenient and safe operation.
It can be used in many aspects, especially in various flat forming conversions of thermoplastics, such as PP, HDPE, and LDPE etc. It is mainly used for woven bag, jumbo bag, geotexile.
II. MAIN TECHNICAL PARAMETERS OF PE FLAT YARN MAKING MACHINE
| Type | Z90/33-1000 | Z100/33-1100 | Z110/33-1300 | Z120/33-1500 |
Max extrusion output(kg/h) | 315 | 390 | 480 | 530 |
Diameter of Screw (mm) | 90 | 100 | 110 | 120 |
L/D ratio of screw | 33:1 | 33:1 | 33:1 | 33:1 |
Rotational speed of screw(r/min) | 20-120 | 20-120 | 20-120 | 20-120 |
Width of die(mm) | 1000 | 1100 | 1300 | 1500 |
Max. line speed (m/min) | 280 | 280 | 280 | 280 |
Flat yarn denier scope | 60-200tex | 60-200tex | 60-200tex | 60-200tex |
Drawing rate | 4-10 | 4-10 | 4-10 | 4-10 |
Number of winder (spindles) | 160 | 184 | 216 | 240 |
System installed power(kw) | 300 | 350 | 410 | 460 |
Normal consumption power | 180 | 210 | 246 | 276 |
Installing dimensions (L*W*H)m | 32×3.7×2.6 | 35×3.8×2.7 | 36×3.8×2.7 | 37×3.9×2.8 |
Weight (ton) | 26 | 27 | 29 | 32 |
III. CONFIGURATION OF PE FLAT YARN MAKING MACHINE
No. | Name | Qty. |
1 | Auto feeder | 1 set |
2 | Extruder | 1 set |
3 | Die head | 1 set |
4 | Screen changer | 1 set |
5 | Cooing water tank | 1 set |

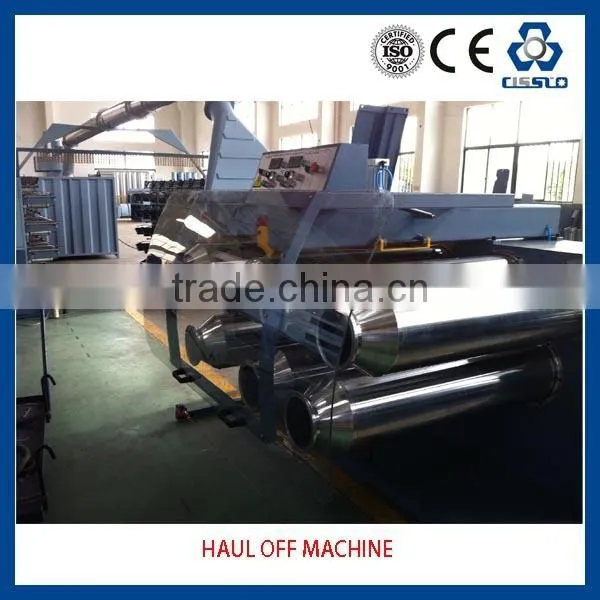

6 | Take-up, Cutting and Pulling device | 1 set |
7 | Hot stretching plate | 1 set |

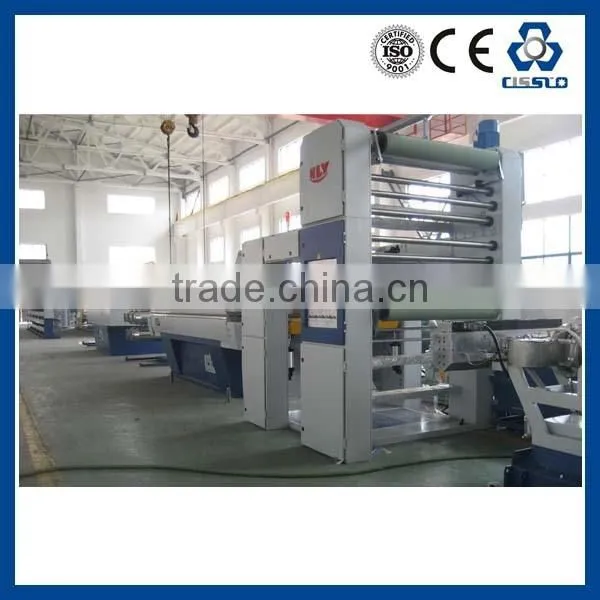

8 | Seven rollers take-off unit | 1 set |
9 | Fibrillated system | 1 set |

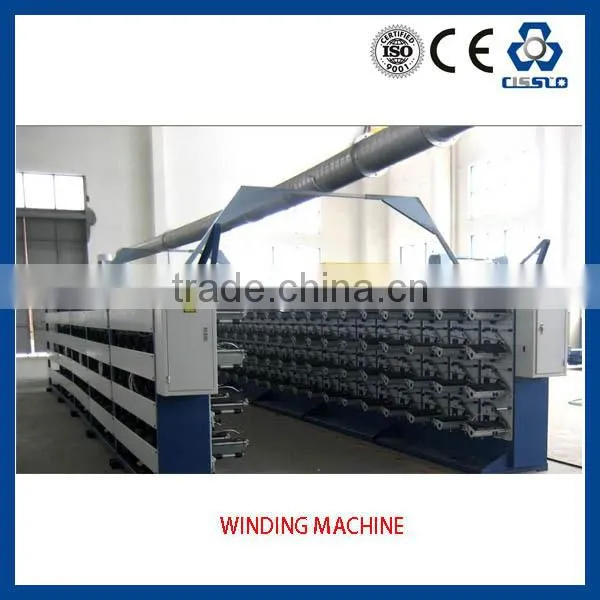

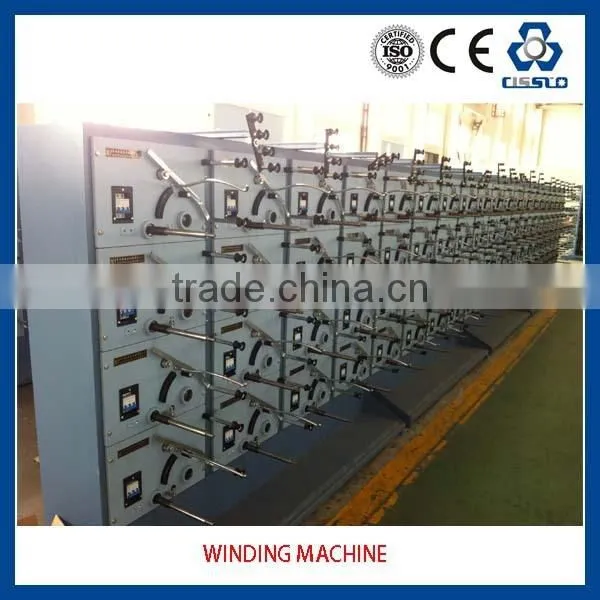

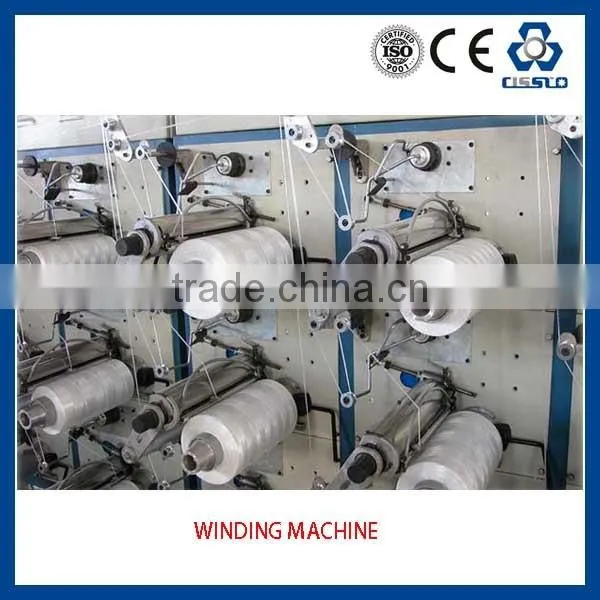

10 | Winder | 1 set |
11 | Crusher and recycling device for edge yarn | 1 set |
12 | Electric control system | 1 set |

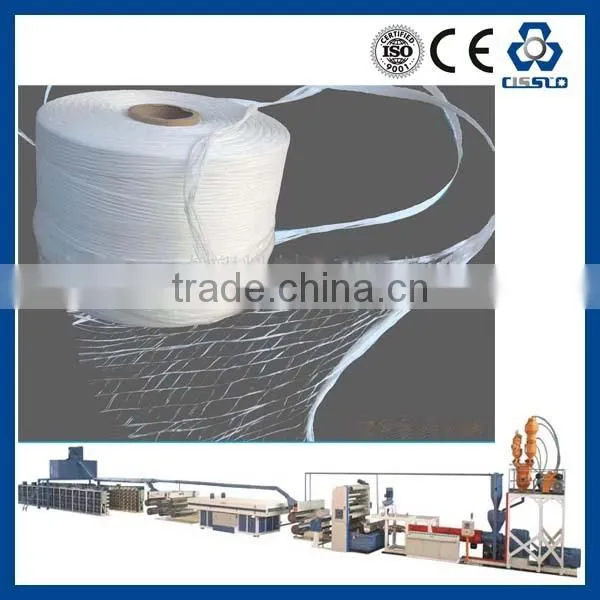

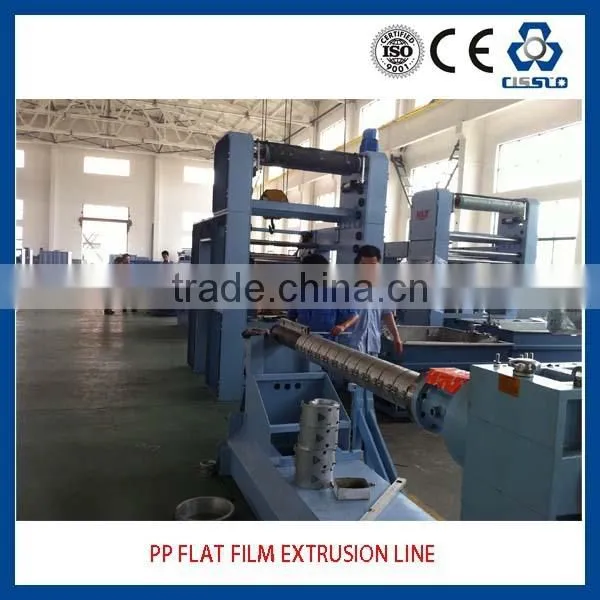

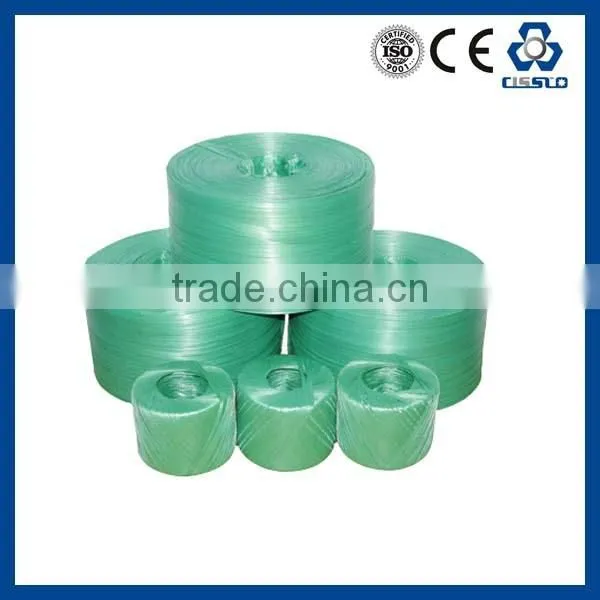

IV. PICTURES OF PE FLAT YARN MAKING MACHINE
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
Comparing with the low price low quality machine, please note our strong advantages:
1. 20 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services.
