Product Details
Condition: | New | Application: | Other, ADHESIVE TAPE, ADHESIVE FILM | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 380V | Power: | 70KW |
Packaging Type: | Cartons | Packaging Material: | Plastic | Place of Origin: | Shanghai, China |
Brand Name: | CISSCO | Model Number: | CS | Dimension(L*W*H): | 32m*4m*6m |
Weight: | 40Tons | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

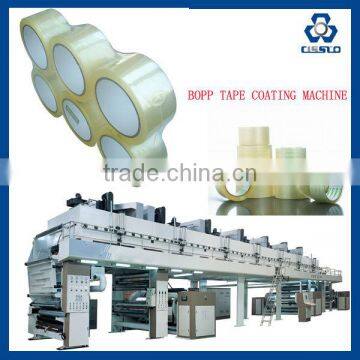

FULLY AUTOMATIC ADHESIVE BOPP TAPE COATING PRODUCTION LINE
At Cissco, we design, engineer and manufacture customized plastic extrsusion lines. There is a proven Cissco technology for virtually every extrusion line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.
To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals. When you have service needs, you can count on an immediate response from your nearest Cissco facility, one of many we have located strategically throughout the world.
For the best investment decision or further details please do not hesitate to contact to us at your earliest convenience. You can also refer to our website to browse other product categories.
1. MAIN TECHNICAL PARAMETERS OF FULLY AUTOMATIC ADHESIVE BOPP TAPE COATING PRODUCTION LINE
I. MAIN APPLICATION
1.1. Used to produce BOPP packing tape;
1.2. Suitable material:
1.2.1. Base material: BOPP film (0.023-0.032mm) ;
1.2.2. Glue: acrylic acid glue, solid content no less than 55%, viscosity: 150~200CPS.
II. COATING TECHNOLOGY
1.1. Coating type: Comma roller coating;
1.2. Technology process: Unwinding,Coating, Drying, Cooling and Winding
III. MAIN TECHNICAL PARAMETERS
1.1. Valid width: 1300mm;
1.2. Roller width: 1450mm;
1.3. Max. mechanical speed: 250m/min;
1.4. Operation speed: 200-250m/min (according to the glue and coating thickness)
1.5. Maximum unwinding diameter: 800mm;
1.6. Maximum winding diameter: 700mm;
1.7. Heating method: Electrical heating; other options available
1.8. Edge winding uniformity: ±3mm;
1.9. Coating homogeneous degree: ± 0.001mm (dry glue);
1.10. Tension control accuracy: less than ± 0.15kg
1.11. Temperature control accuracy: less than ±2°C
1.12. Max. temperature: 120°C
1.13. Mechanical power: About 125Kw
1.14. Heating power: About 460Kw
1.15. Overall size: 50m (length) * 4m (width) *7m (Height)
1.16. Color of machine: Rose white (decided by customer)
2. SCOPE OF DELIVERY OF FULLY AUTOMATIC ADHESIVE BOPP TAPE COATING PRODUCTION LINE
3. PICTURES OF FULLY AUTOMATIC ADHESIVE BOPP TAPE COATING PRODUCTION LINE
4. CONTACT ME FOR FULLY AUTOMATIC ADHESIVE BOPP TAPE COATING PRODUCTION LINE
