FULLY AUTOMATIC ADHESIVE BOPP TAPE COATING PRODUCTION LINE
MAIN TECHNICAL PARAMETERS OF FULLY AUTOMATIC ADHESIVE BOPP TAPE COATING PRODUCTION LINE
I. MAIN APPLICATION

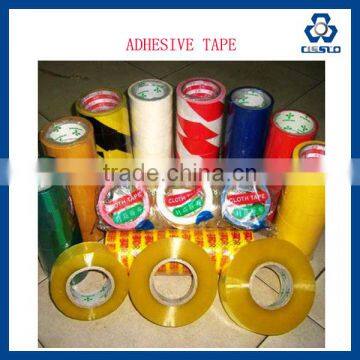

1.1. Used to produce BOPP packing tape;
1.2. Suitable material:
1.2.1. Base material: BOPP film (0.023-0.032mm) ;
1.2.2. Glue: acrylic acid glue, solid content no less than 55%, viscosity: 150~200CPS.
II. COATING TECHNOLOGY
1.1. Coating type: Comma roller coating;
1.2. Technology process: Unwinding,Coating, Drying, Cooling and Winding
III. MAIN TECHNICAL PARAMETERS
1.1. Valid width: 1300mm;
1.2. Roller width: 1450mm;
1.3. Max. mechanical speed: 250m/min;
1.4. Operation speed: 200-250m/min (according to the glue and coating thickness)
1.5. Maximum unwinding diameter: 800mm;
1.6. Maximum winding diameter: 700mm;
1.7. Heating method: Electrical heating; other options available
1.8. Edge winding uniformity: ±3mm;
1.9. Coating homogeneous degree: ± 0.001mm (dry glue);
1.10. Tension control accuracy: less than ± 0.15kg
1.11. Temperature control accuracy: less than ±2°C
1.12. Max. temperature: 120°C
1.13. Mechanical power: About 125Kw
1.14. Heating power: About 460Kw
1.15. Overall size: 50m (length) * 4m (width) *7m (Height)
1.16. Color of machine: Rose white (decided by customer)
2. SCOPE OF DELIVERY OF FULLY AUTOMATIC ADHESIVE BOPP TAPE COATING PRODUCTION LINE

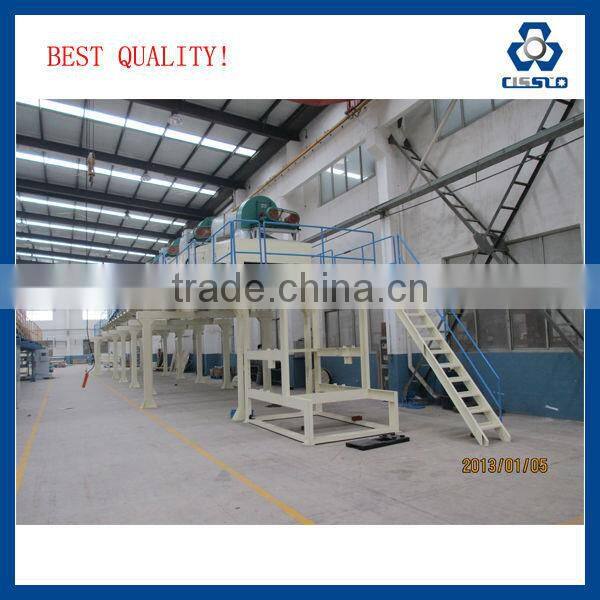

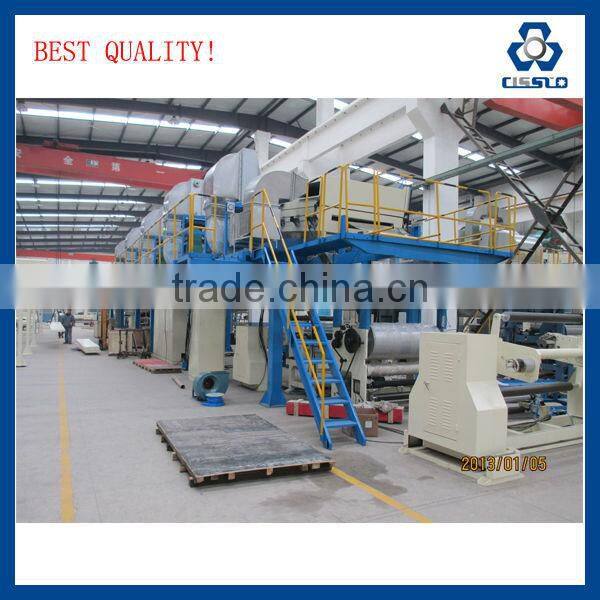

3. PICTURES OF FULLY AUTOMATIC ADHESIVE BOPP TAPE COATING PRODUCTION LINE
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
