high quality bopp film coating plant
- 10 Set / Sets per Month
- Shanghai
- T/T
- TMEP-LED18230T plate making equipment prepress proofing machine
- TMEP-LED18230T plate making equipment prepress proofing machine
- Economical, Efficient and Energy-Saving Manual Screen Printing PU Scraper Cleaning Machine
- Tamprinter glitter powder machine The operating principle
- flame treatment machine TM-F4 car bumpers flame processor equipment
- Air-Gas burner Bottle flame treatment machine with automatic ignition
Product Details
Condition: | New | Application: | Other, TAPE FILM COATER | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 380 V | Power: | 70 KW |
Packaging Type: | Cartons | Packaging Material: | Plastic | Place of Origin: | Shanghai, China |
Brand Name: | high quality bopp film coating plant | Model Number: | high quality bopp film coating plant | Dimension(L*W*H): | 36m*4m*6m |
Weight: | 40 tons | Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
BOPP FILM COATING PLANT
1. MAIN TECHNICAL PARAMETERS OF PVC FILM COATING PLANT
1.1. Suitable base material: PE film;
1.2. Valid width: 1600mm;
1.3. Coating type: Anilox roller directly coating, anilox roller reverse kiss coating
1.4. Mechanical speed: 60-120m/min
1.5. Heating type: Electrical heating
1.6. Mechanical power: About 65Kw
1.7. Heating power: About 300Kw
1.8. Overall size: 31580mm (L) * 3800mm (W) * 5423mm (H)
1.9. Overall weight: About 40 tons
2. SCOPE OF DELIVERY OF FILM COATING MACHINE
NO. | Name | Qty. |
1 | Turret unwinding machine | 1 set |
2 | Anilox roller coating head | 1 set |
3 | Drying oven (4m * 6 = 24 m) | 6 sets |
4 | Cooling roller group | 1 set |
5 | Four-position winder | 1 set |
6 | Rectification unit | 3 sets |
7 | Corona treatment system | 1 set |
8 | Electrostatic clearing device | 2 sets |
9 | Electrical control system | 1 set |
10 | Electrical parts | 1 set |
11 | Frame | 1 set |
12 | Pipeline | 1 group |
13 | Spare parts | 1 group |

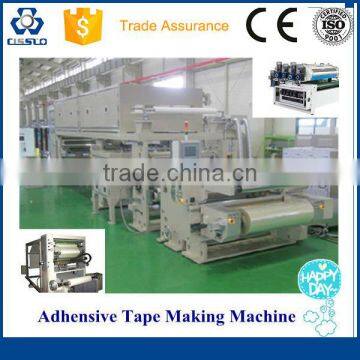

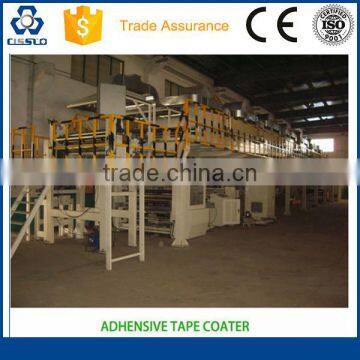

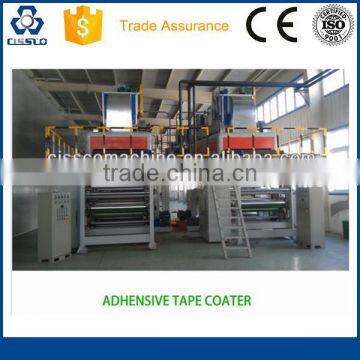

3. PHOTO SHOW FILM COATING MACHINE
4. OTHER EQUIPMENTS : AUTOMATIC CUTTING MACHINE/REWINDER bopp tape slitting
Application : Suitable for cutting double side tape, kraft paper, foam tape, PET,PVC and cloth
Features:
- Cutting widht can be freely set up with high cutting precision
- Servo motor drives for transverse moving
- PLC control, touch screen operating, can set parameters freely
- Circular knife is driven by motor, main shaft speed stepless adjustable by frequency covering
- Circular knife angle is adjustable manually or by servo motor and the knife-feeding is controlled by hydraulic or servo motor
- equipped with circular knife system
5. OUR LOCATION : SHANGHAI , CHINA
Loyal Luo, Sales Export & Business Developer
CissCo Machinery Co., Ltd.
Mob.: +86 18817937157 I Office: +86 2138726398 / 99
Email: market02@ I Skype: cisscomachine03 I Web:
Add.: 30B, No.58 New Jinqiao Road, Pudong, Shanghai, China
