High Quality BOPP Adhesive Tape Coating Production Line
- 30 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
- Economical, Efficient and Energy-Saving Manual Screen Printing PU Scraper Cleaning Machine
- Tamprinter glitter powder machine The operating principle
- flame treatment machine TM-F4 car bumpers flame processor equipment
- Air-Gas burner Bottle flame treatment machine with automatic ignition
- Manufacturer Wholesale Custom Tamprinter glitter powder machine
- Factory Supply Tamprinter Squeegee Clean machine for sale
Product Details
Condition: | New | Application: | Beverage, Chemical, Commodity, Other, Medical, Beverage, Chemical, Commodity, Machinery & Hardware, Medical | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 380V | Power: | 65 kw |
Packaging Type: | Cartons | Packaging Material: | Plastic | Place of Origin: | Shanghai, China |
Brand Name: | High Quality BOPP Adhesive Tape Coating Production Line | Model Number: | High Quality BOPP Adhesive Tape Coating Production Line | Dimension(L*W*H): | 30m*3m*7m |
Weight: | 40 TONS | Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High Quality BOPP Adhesive Tape Coating Production Line
1. Main Application
1.1. Used to produce BOPP packing tape;
1.2. Suitable material:
1.2.1. Base material: BOPP film (0.023-0.032mm) ;
1.2.2. Glue: acrylic acid glue, solid content no less than 55%, viscosity: 150~200CPS.
2. Coating Technology
2.1. Coating type: Comma roller coating;
2.2. Technology process: Unwinding→→Coating→→Drying→→Cooling→→Winding
3. Main Techinical Parameters
3.1. Valid width: 1000mm;
3.2. Roller width: 1150mm;
3.3. Max. mechanical speed: 180m/min;
3.4. Operation speed: 100-150m/min (affected by glue and coating thickness)
3.5. Maximum unwinding diameter: 800mm;
3.6. Maximum winding diameter: 700mm;
3.7. Heating method: Electrical heating;
3.8. Edge winding uniformity: ±3mm;
3.9. Coating homogeneous degree: ± 0.001mm (dry glue);
1.10. Tension control accuracy: less than ± 0.15kg
1.11. Temperature control accuracy: less than ± 2°C
1.12. Max. temperature: 120°C
1.13. Mechanical power: About 125Kw
1.14. Heating power: About360Kw
1.15. Overall size: 42m (length) * 4m (width) *7m (Height)
1.16. Color of machine: Rose white (decided by customer)
4.Scope Of Delivery
NO. | Name | Qty. | Remark |
1 | Two-position unwinding machine | 1 set | With automatic film picking unit |
2 | Haul-off unit | 1 set |
|
3 | Comma roller coating head | 1 set | With smoothing and haul-off unit |
4 | Drying oven (4m * 8 = 32 m) | 8 pcs |
|
5 | Rectification unit | 1 set |
|
6 | Cooling roller group | 1 set |
|
7 | Two-position winder | 1 set | With automatic film picking unit |
8 | Frame | 1 set | Connection, Guardrail, Aisle |
9 | Fan pipe | 1 set |
|
10 | Electrical control system | 1 set | Connection cable and protective tube |

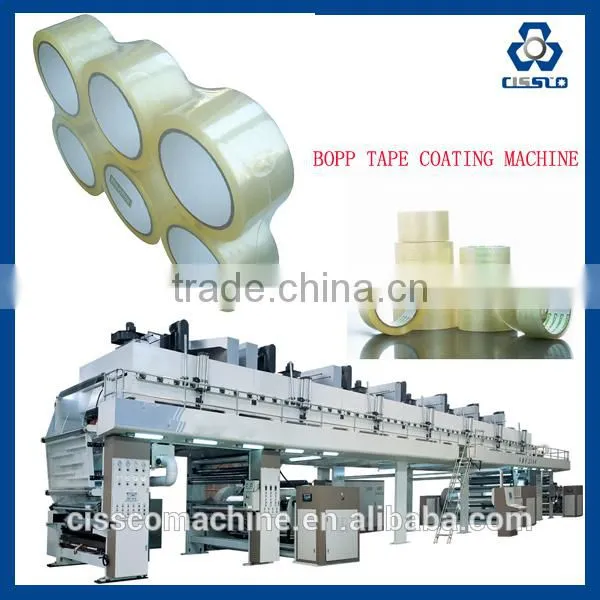

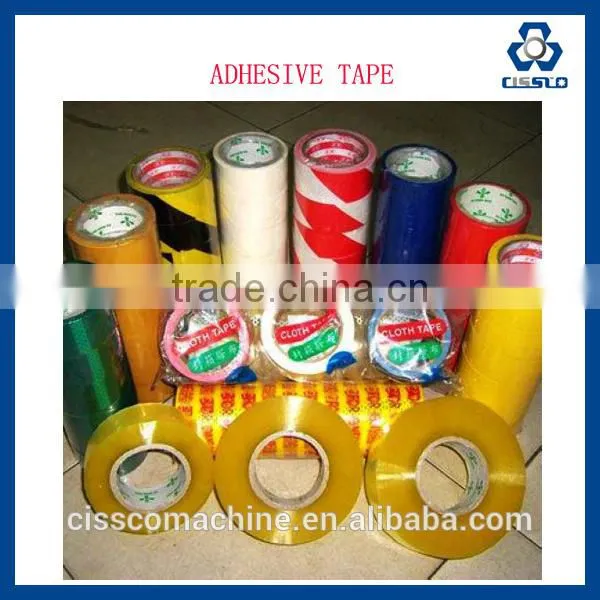

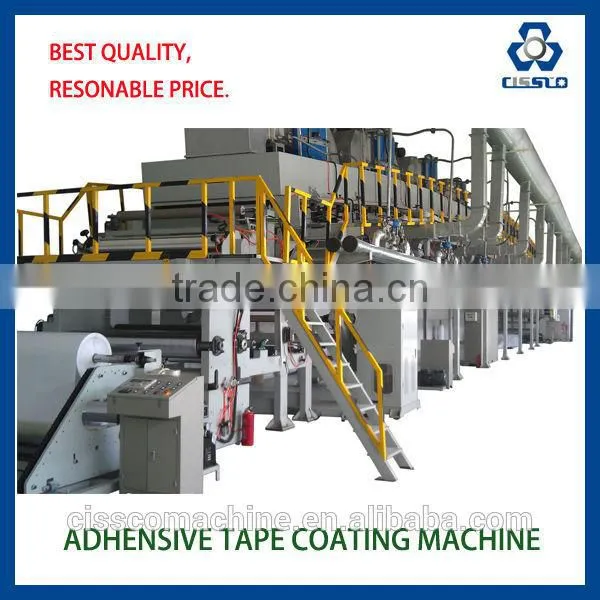

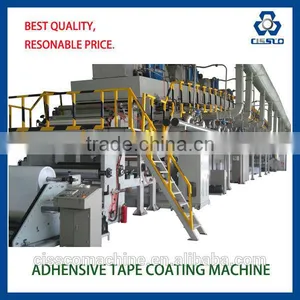

5.Pictures of
7.Contact Information for
Shelley Huang
Skype:shelley2737
QQ:402911055
Cell:086-18602153584
CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUDing MACHINERY for more than 20 years and has acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
• We design, engineer and manufacture and customized the production line for every customer.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
