PE PROTECTIVE TAPE COATER MACHINERY

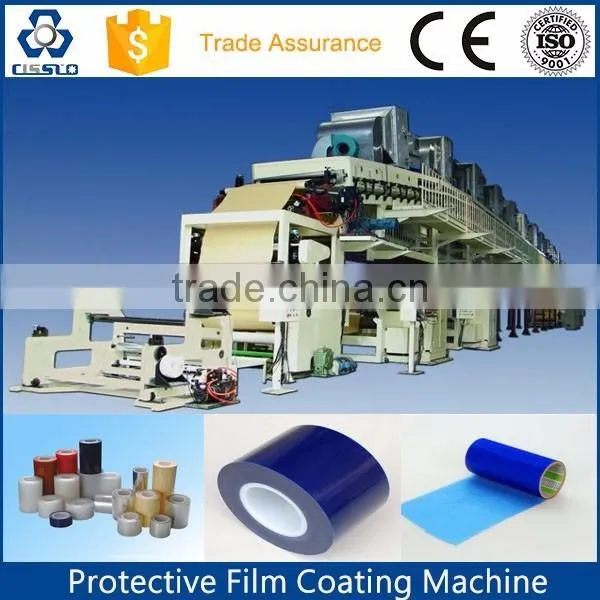

PE Protective Film Coating Machine
1. Main Technical Parameters
1.1. Suitable base material: PE film;
1.2. Valid width: 1600mm;
1.3. Coating type: Anilox roller directly coating
1.4. Mechanical speed: 10-60m/min
1.5. Heating type: Steam heating
1.6. Mechanical power: About 65Kw
1.7. Heating power: About 300Kw
1.8. Overall size: 31580mm (L) * 4200mm (W) *

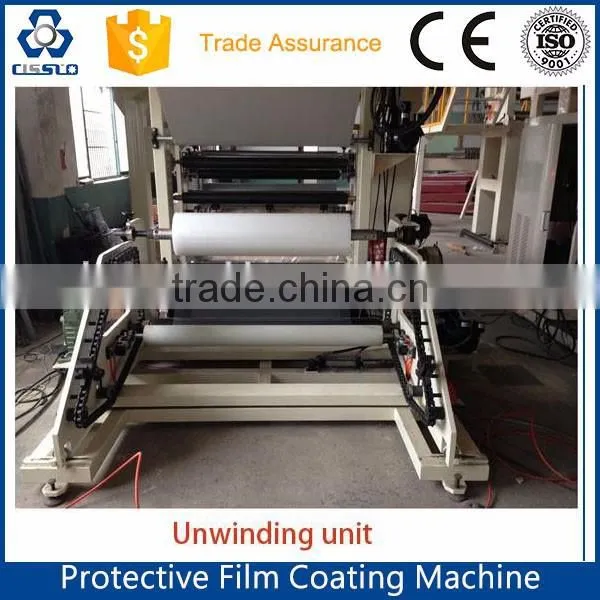

2. Turret Unwinding Machine
2.1. Type: Turret
2.2. Maximum unwinding diameter: 800mm
2.3. Inner diameter of tube core: up to customer’s requirement
2.4. Unwinding shaft: 2 pcs
2.4.1. Type: 3” Air shaft
2.5. Braking tension: 1 set
2.5.1. Type: magnetic powder brake
2.5.2. Torque: (10 Kg·M)
2.6. Tension detecting: 2 pcs
2.6.1. Type: micro tension detector
2.6.2. Brand: mitsubishi (Japan)
2.7. Tension controlling: 1 pcs
2.7.1. Type: automatic tension controller
2.7.2. Brand: Mitsubishi
2.7.3. Control: closed-loop control
2.8. Position correcting: 1 set
2.8.1. Type: Gas sensitive type rectification machine
2.8.2. Brand: Jinpai (Taiwan)
2.9. Electrostatic clearing device: 1 set
2.10. Type:Ion wind wand
3.Scope of Delivery
| No. | Name | Qty. |
| 1 | Turret unwinding machine | 1 set |
| 2 | Anilox roller coating head | 1 set |
| 3 | Drying oven (4m * 6 = 24 m) | 6 sets |
| 4 | Cooling roller group | 1 set |
| 5 | Four-position winder | 1 set |
| 6 | Rectification unit | 3 sets |
| 7 | Corona treatment system | 1 set |
| 8 | Electrostatic clearing device | 2 sets |
| 9 | Electrical control system | 1 set |
| 10 | Electrical parts | 1 set |
| 11 | Frame | 1 set |
| 12 | Pipeline | 1 group |
| 13 | Spare parts | 1 group |
4.Pictures of PE Protective Film Coating Machine.
CissCo Machinery Co., has been engineering and manufacturing a series of COATING MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
Comparing with the low price low quality machine, please note our strong advantages:
1. 20 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services;
9. CE certificate..
