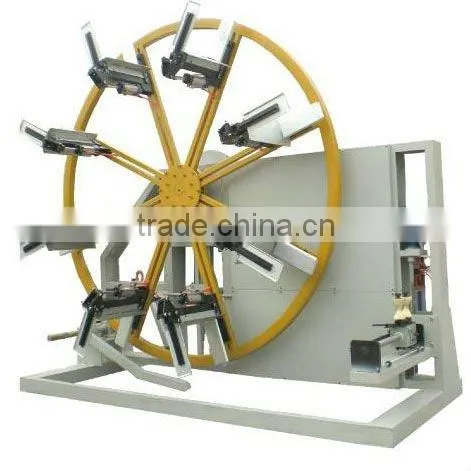

PE PIPE WINDER MAKING MACHINE
1.The machine is mainly used to rolling and packing of the PE pipe. It mainly matches other equipments such as extruder, vacuum calibration machine, cooling tank, haul-off machine, cutter and so on necessary use to form a complete extrusion line, usually installed next to cutting machine for process after, leading the formation pipe to be rolled and packed directly after hauling-off to avoid of the confusion brought by unwound affecting the product’s appearance image.
2.The machine runs in the case of the motor working, to guarantee the continuity of operation of the entire production line. Winding length is counted by encoder in the haul-off machine, when reaches the set length, the meter counter automatically output signal to cutting machine system. The pipes are clamped and cut off from the cylinder. After replacement, the new round of rolling enters to the next.
3. Technical Parameters
Serial No. | Item Description | Specifications |
1 | Inner diameter of coiler | Adjustable between 1600, 1800, 2000mm |
2 | Max. outer diameter of coiler | 3000mm |
3 | Width of winding | 1000 mm |
4 | Linear speed | 0.5-4m/min |
5 | Pipe diameter | 75-110mm |
6 | Motor power | 4KW |
7 | Unloading mode | Manual necking |
8 | Pressure of air | 0.6Mpa |
9 | Dimensions | Winder base L2000×W2000×H2200mm Plate rolling L3100×W250×H2000mm |
10 | Overall weight | 2500kg |
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our clients factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
Loyal Luo, Sales Export & Business Developer
CissCo Machinery Co., Ltd.
Mob.: +86 18817937157 I Office: +86 2138726398 / 99
Email: market02@ I Skype: cisscomachine03 I Web:
Add.: 30B, No.58 New Jinqiao Road, Pudong, Shanghai, China
