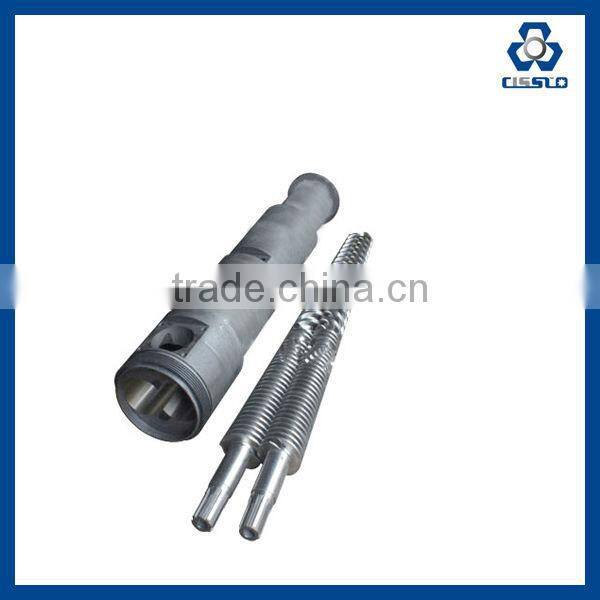

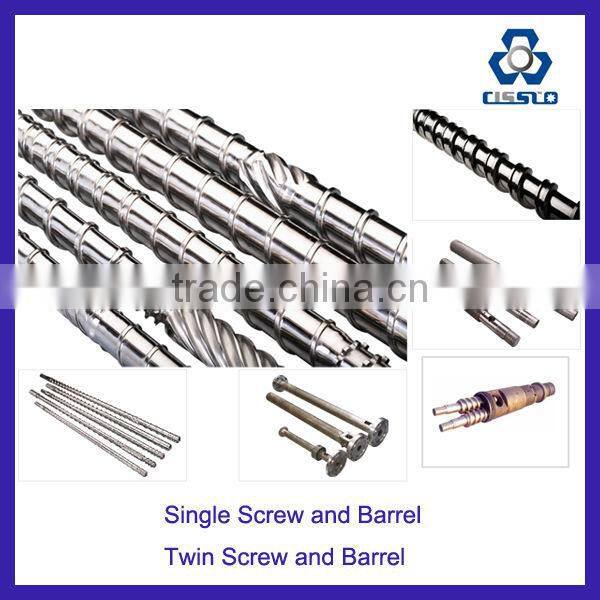

SINGLE &TWIN SCREW AND BARREL

Cissco Machinery Co., Ltd.
SINGLE &TWIN SCREW AND BARREL thumbnail-1
SINGLE &TWIN SCREW AND BARREL photo-1
US$ 100 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
CISSCO
Model Number:
CS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name CISSCO
Model Number CS

Specifications

1. GOOD QUALITY, PRICE AND SERVICE.
2. HELP TO SERVEY AND DESIGN.
3. NITROGEN TREATMENT OR BIMETAL TREATMENT.

TEH SPECIFICATION OF THE PRODUCTION RELATED:Screw and Barrel 1)38 CrMoALA Material  2)Nitriding Depth:0.5~0.7mm  3)High Quliaty, precision and rigidity

TEH SPECIFICATION OF THE PRODUCTION RELATED:Screw and Barrel 1)38 CrMoALA Material  2)Nitriding Depth:0.5~0.7mm  3)High Quliaty, precision and rigidity

TEH SPECIFICATION OF THE PRODUCTION RELATED:Screw and Barrel 1)38 CrMoALA Material  2)Nitriding Depth:0.5~0.7mm  3)High Quliaty, precision and rigidity

TEH SPECIFICATION OF THE PRODUCTION RELATED:Screw and Barrel 1)38 CrMoALA Material  2)Nitriding Depth:0.5~0.7mm  3)High Quliaty, precision and rigidity







1. We can manufacture all types of screws and barrels according to clients' requirement.

size:

  • screw diameter:Φ20-Φ500mm
  • Maximum screw length:10000mm
  • Barrel inner bore diameter:Φ500mm

2.Technology:nitriding treatment ,alloy coating spraying, heat-treatment applied

3. Technical parameter:



Material38CrMoAIA,42CrMo,alloy powder
Nitride depth0.7mm
Surface hardnessHV950 - HV1,020
Fragility of nitritionless than grade 1
Screw straight tolerance0.015 mm/m
Surface roughnessRa 0.4μm
Linearity of the screw0.015mm
Depth of double alloys > 2ram
Bimetallic layer depth3mm



SINGLE &TWIN SCREW AND BARRELSINGLE &TWIN SCREW AND BARREL
