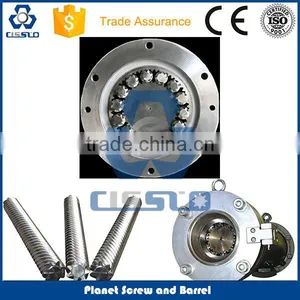

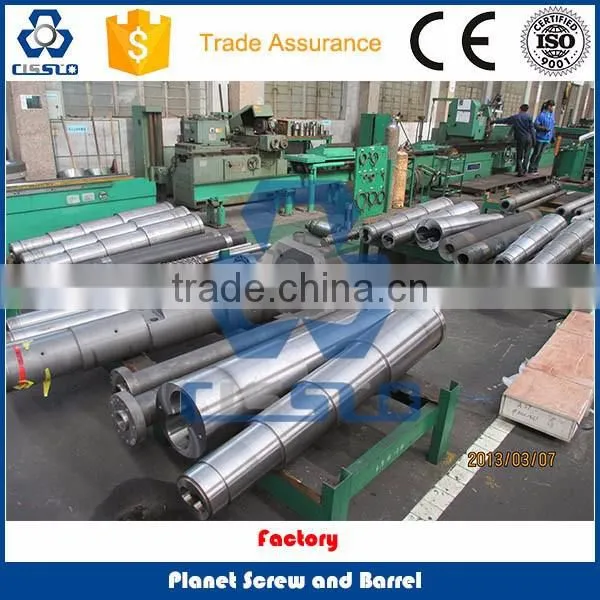

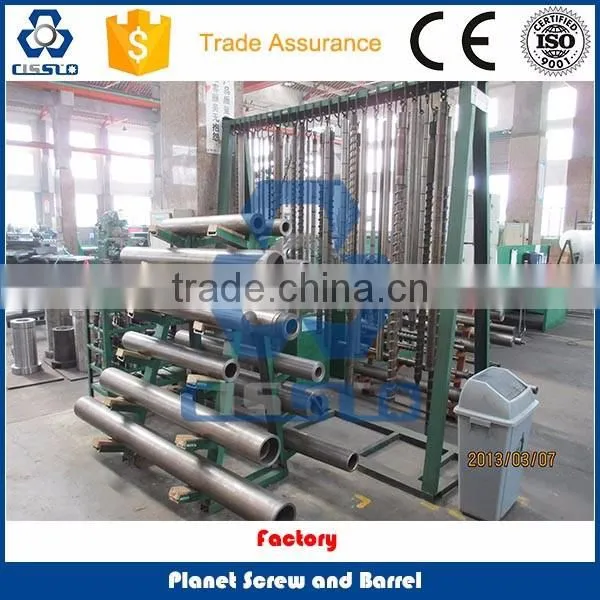

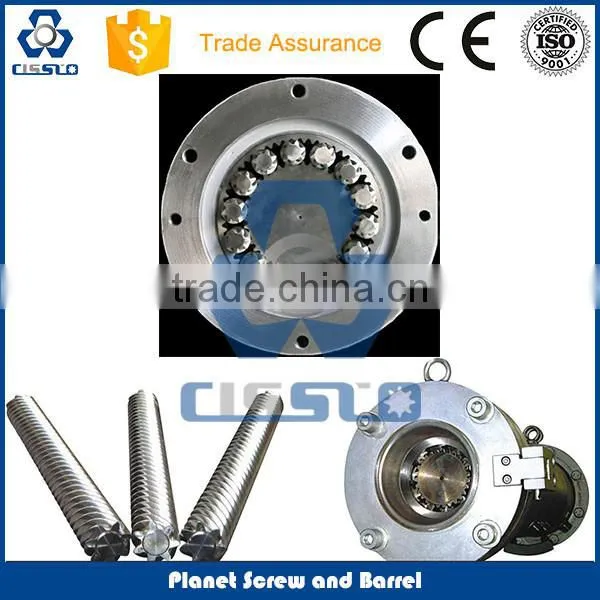

Screw and barrel for plastic extruder machine
Specifications
SCREW AND BARREL FOR PLASTIC EXTRUDER MACHINE
1. ISO 9001:2008 Certificate .
2. Cold alloys hot alloys
SCREW AND BARREL FOR PLASTIC EXTRUDER MACHINE
Material:
1. 38 CrMoAIA(JIS SACM645)
2. 42CrMo(AISI4140)
3. 9Cr18MoV
4. CW6Mo5Cr4V2
5. SKD61
Processes:
Technical Parameters:
Screw
1. Nitride Depth: 0.55-0.7mm
2. Nitride Hardness: 850-960HV
3. Surface Roughness: Ra≤0.8um
4. Screw Straightness: 0.015mm
5. Bimetallic Hardness: HRC50-62
6. Bimetallic Depth: 1.5-2.0mm
Barrel
1. Nitride Depth: 0.55-0.7mm
2. Nitride Hardness: 960-1020HV
3. Surface Roughness: Ra≤1.6um
4. Bimetallic Hardness: HRC50-65
5. Bimetallic Depth: 1.5-2.0mm
Our products can ensure high performance and low energy consumption of extruder and Injection molding machine. More over, we can supply professional screw and barrel to your order! Sincerely looking forward to establishing new business ship with you in the near future.
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
