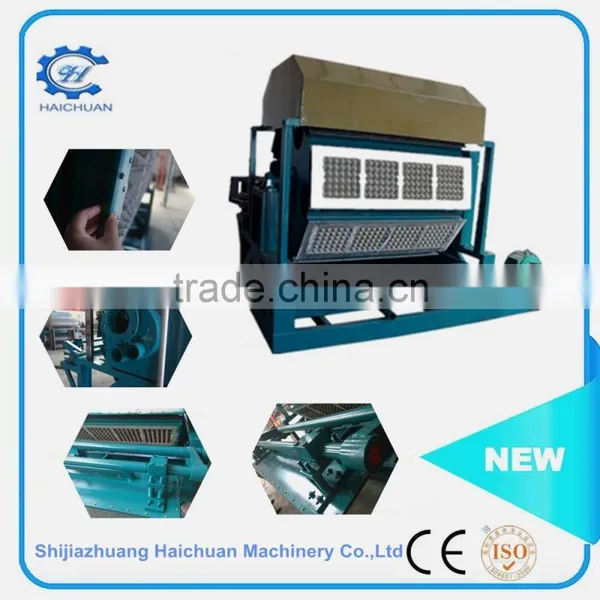

New Arrival High Quality Used Paper Egg Tray Machine
Haichuan egg tray machine specification :
Paper pulp tray has widely usage, it can pack eggs , fruit, beverage bottle filling , glass ceramics , handicrafts, small machinery , spare parts , electronic products , toys and other goods .
Egg tray mostly recycled pulp molding machines by repression, because the production process is simple, low cost, no pollution, known as the " green " packaging , egg tray usually pack eggs , duck eggs and others, its main role is to shock , easy to transport and carry. it is hot sale around the world.
1.4*8 recycle egg tray machine (output:4500-5000pieces)
Introduction of Egg Tray Machine
This machine is controlled by PLC, highly automation, easily learned, convenient services, and can widely use in different business.
It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing. The equipment is best-selling nation and is sold abroad.
Main Equipment of Egg Tray Machine
1. pulp molding system: Hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet of pulping system
2. forming system: Rotary forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, Highpressure water pump, Refiner machine, Power cabinet of forming system
3. drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc
4. packing system: Packing machine
Feactures of pulp paper egg tray machine
1. Raw material: used newsprint, waste cartons and mixed waste paper.
2. Type: Rotary forming.
3. Control method: fully automatic controlled by PLC(international famous brand).
4. Dryer type: fashionable Multilayer dryer.
5. Target product: egg trays, fruit trays, cup holders.
6. Output: 4000-4500 pcs/hour of egg trays.
7. Workshop size: 50m*18m*5m
8. Power: 100KW.
9. Labor: 4workers/shift
10.Fuel:diesel,gas,LPG.
Haichuan form egg tray machine advcanage :
1.our egg tray machine main shafts , The material is 45# steel , There are solid shafts . This steel easy to modulate, pulling, stretchi bending force is strong, so the egg tray machine quality is higher .

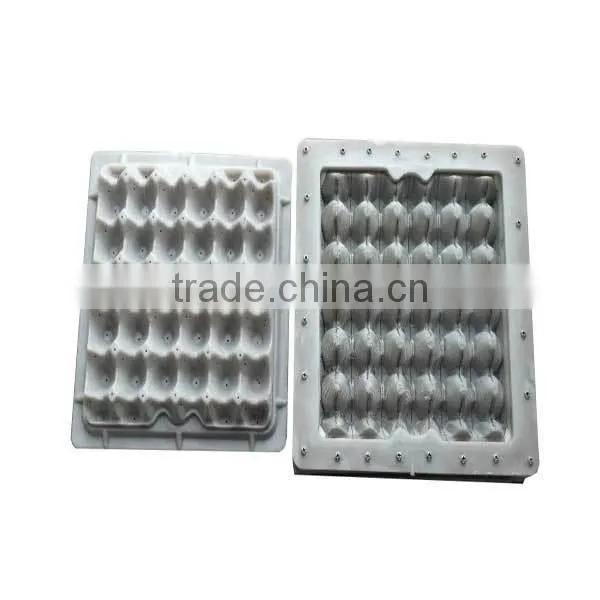

2.The molds of the machine . The total molds for 32 pieces, per sizes for 4 molds . And 4 transfer molds per set egg tray machine . Our egg tray machine molds product is used in the CNC cutting techniques, plasma, laser cutting, precision controls within the 0.05mm, total control in 0.1mm, accuracy is quite high .Specifically, theoctahedral drum machine, for example, viewed from the side of the machine, the drum part isa regular Octagon, design ensures the stability and adsorptive capacity of drum, canreduce egg tray machine wear and prolong servicelife .
3.Specifically ,The important thing ,haichuan New type egg tray machine , adopt the new gearbox . The egg tray machine gearbox was imported, using Taiwan technology, the material thickness of up to 20 thick, wellmade, egg tray machine work stability, maintenancefree within five years, costsavings, reduced maintenance times and longer service life .
4.Haichuan Egg tray machine , the forming machine of dehydration tube is overstriking, the material is stainless steel .which can dehydrate faster, reducing the dryingtime of egg cartons, increased yields. .

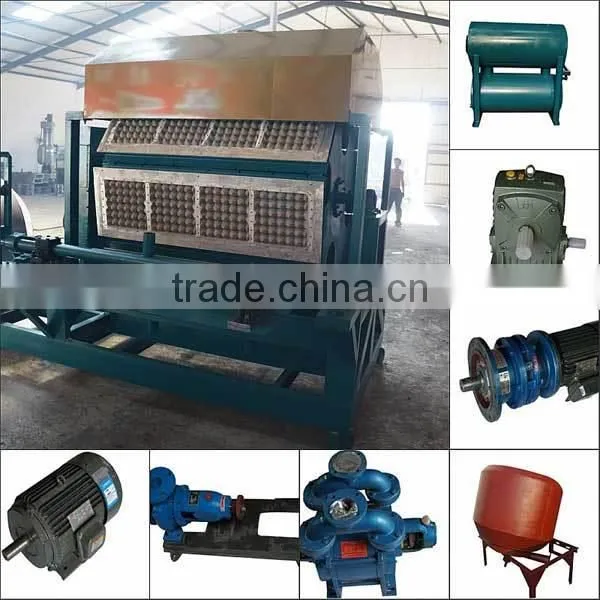

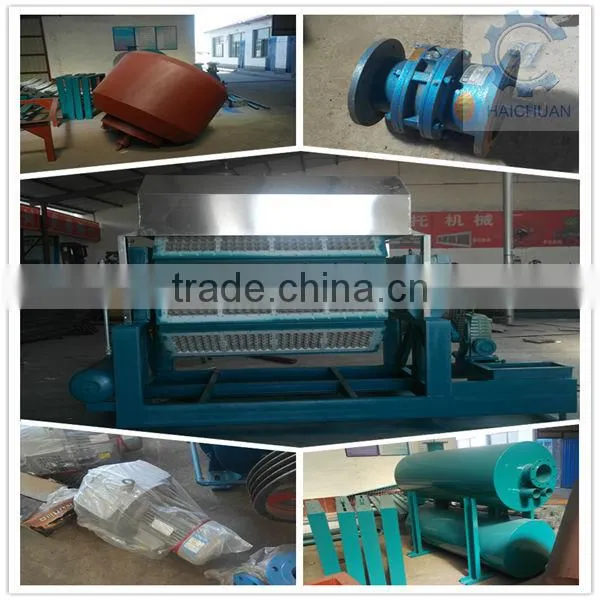

Standard Accessories :

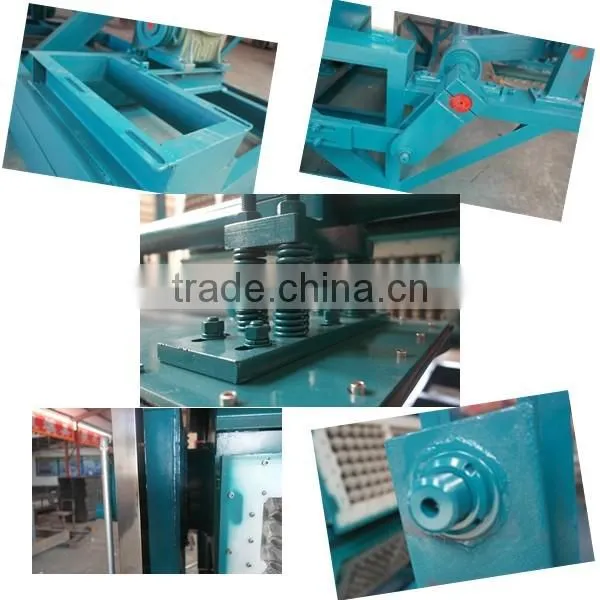

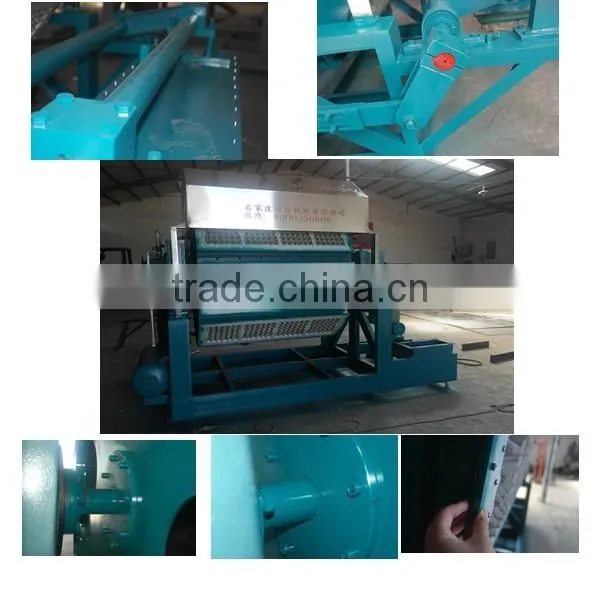

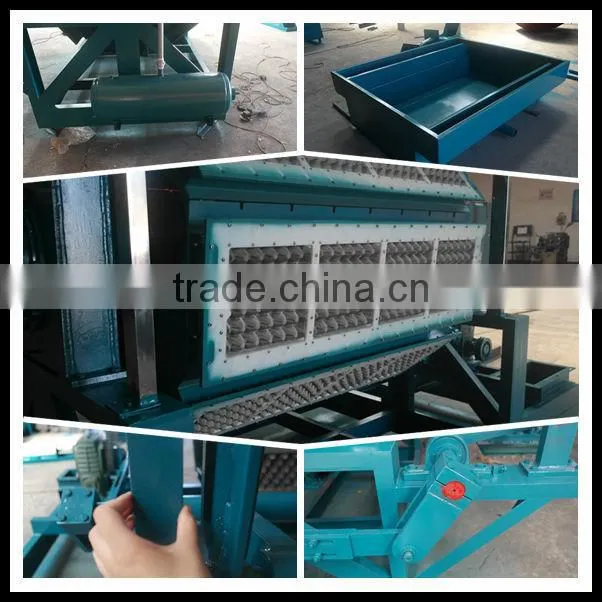

Working Live-action:

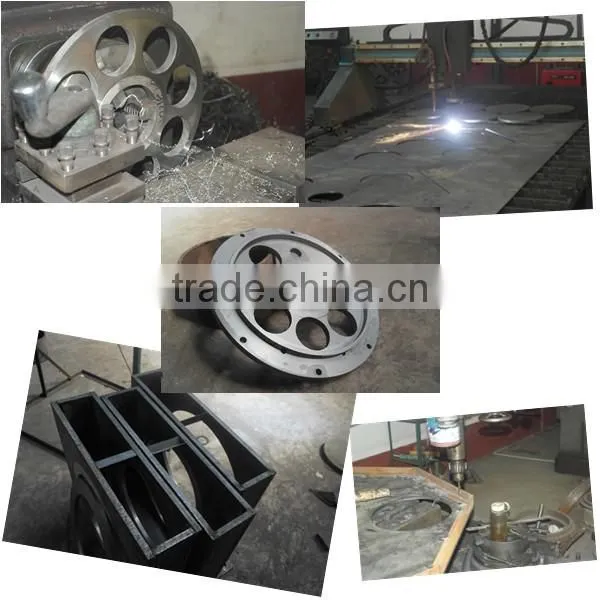

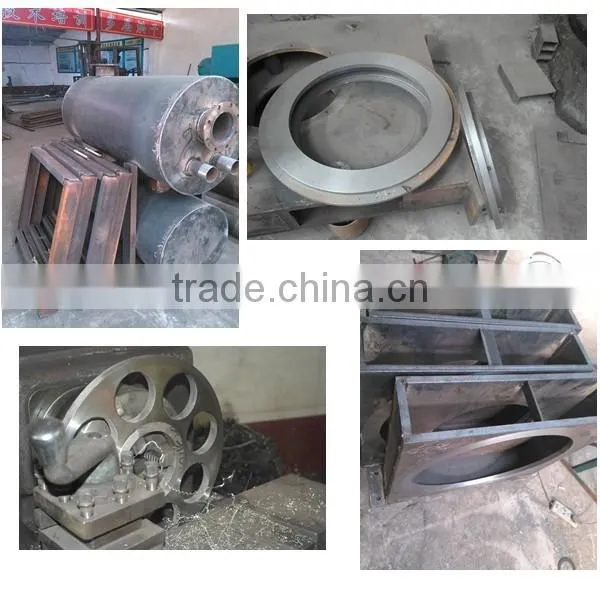

Machine of material :
Customers visit our haichuan factory :
:
Haichuan Factory :
:
Guarantee And after-sale service:
1. one year guarantee for whoe machine except for forming machine .
2. 24 hours techinical support by email .
3. calling or door-to-door service
4. ues-friendly English sofeware user manual and detail videos .
if you interest in our product,please contract us
