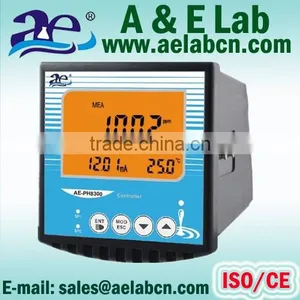

Online pH / ORP Controller With pH Range -2~16pH
Feature:
♦Application : For monitoring o f Industrial Process, Waste water measurements, Pharmaceutical, Chemical and Food & Beverage industries.
♦Panel or Wall mounts Enclosures, NEMA4X, IP65 waterproof, dust proof.
♦Provide precise measurement at industrial site or water treatment process.
♦Symmetric signal output inte rface , preventing electromagnetic interference.
♦Scaleable isolated output: 0/4~20 mA.
♦Two level password protections prevent unauthorized tampering of setting.
♦Large LCD, with orange backlit.
♦T wo separate mechanical relays for high and low (HH/HL/LL) set points or delay time.
♦Separately adjustable high and low set-point hysteresis (dead bands) prevent chattering of relays around the set point.
♦The third mechanical relays for electrode self-cleaning or alarm.
Technical Specifications:
Model | AE-PH8000 | AE-PH8300 | AE-PH8500 |
pH Range | -2.00~16.00pH | -2.00~16.00pH | -2.00~16.00pH |
Resolution / Accuracy | 0.01pH / ±0.01pH | 0.01pH / ±0.01pH | 0.01pH / ±0.01pH |
pH Standard Buffer | USA / NIST | USA / NIST | USA / NIST |
pH Calibration | 1 or 2 point | 1 or 2 point | 1 or 2 point |
ORP Range | -2000~2000mV | -2000~2000mV | -2000~2000mV |
Resolution | 1mV | 1mV | 1mV |
Accuracy | ±1mV | ±1mV | ±1mV |
Temperature Range | -9.9~130.0°C | -9.9~130.0°C | -9.9~130.0°C |
Resolution / Accuracy | 0.1°C / ±0.5°C | 0.1°C / ±0.5°C | 0.1°C / ±0.5°C |
Temperature Sensor | PT1000 | PT1000 | PT1000 |
Temperature Compensation | ATC Automatic / MTC Manual | ATC Automatic / MTC Manual | ATC Automatic / MTC Manual |
pH Electrode | Standard pH or Antimony electrode | Standard pH or Antimony electrode | Standard pH or Antimony electrode |
Signal Input | Symmetrical / Asymmetrical | Symmetrical / Asymmetrical | Symmetrical / Asymmetrical |
Signal Output / Load | 0 / 4~20mA / 600Ω | 0 / 4~20mA / 600Ω | 0 / 4~20mA / 600Ω |
Output Interface | — | RS-485 | RS-485 |
Relay Specification | 2 SPST / 250V 1A | 3 SPST / 250V 1A | 3 SPST / 250V 1A |
Frequency of Cleaning Time | — | 1~999hours / 1~999sec | 1~999hours / 1~999sec |
Control hysteresis band | 0.01~2.00pH / 1~200mV | 0.01~2.00pH / 1~200mV | 0.01~2.00pH / 1~200mV |
EMC Standard | EN 50081-1 / EN50082-1 | EN 50081-1 / EN50082-1 | EN 50081-1 / EN50082-1 |
Operation Temperature | -10~50°C (14~122°F) | -10~50°C (14~122°F) | -10~50°C (14~122°F) |
Operation Humidity | 10~95% | 10~95% | 10~95% |
Power Supply | 220/110VAC | 220/110VAC | 220/110VAC |
Size / Weight | 100x108x150mm/900g | 100x108x150mm/900g | 190x160x133mm/1.5Kg |
Model | AE-PH8000 | AE-PH8100 | AE-PH8200 | AE-PH8300 | AE-PH8500 |
Type | Embedded PH | Embedded PH | Wall-Mounts PH | Embedded PH | Wall-Mounts PH |
relay specifications | 2 relays/250V,1A | 3 replays/250V,1A | 3 replays/250V,1A | 3 replays/250V,1A | 3 replays/250V,1A |
Output interface | 0/4-20mA Output | 0/4-20mA Output | 0/4-20mA Output | 0/4-20mA/RS485 Output | 0/4-20mA/RS485 Output |
