Hot DNA Amplifier Machine/The Most Economic PCR Thermal Cycler/Biological Analysis System

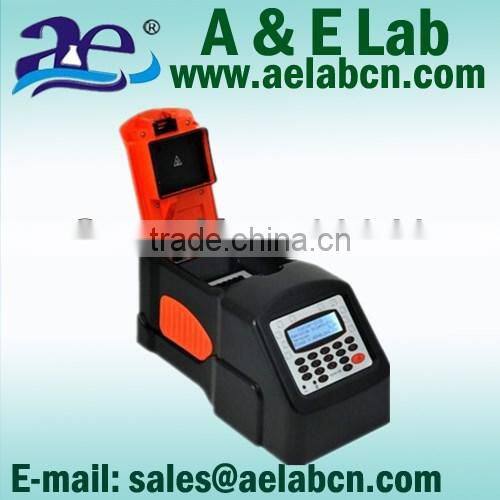

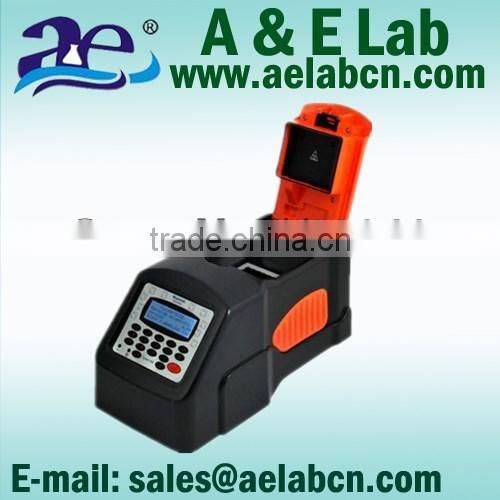

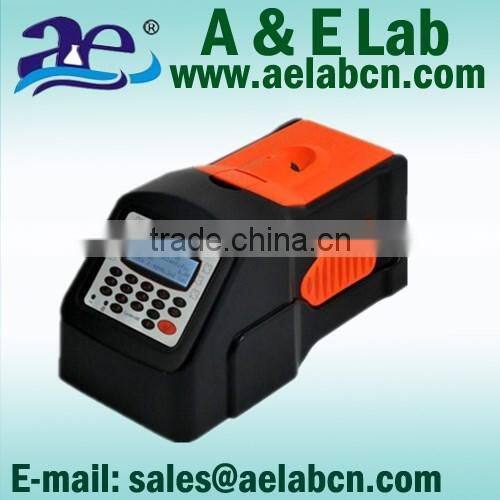

Cycler 003

Most economic and high performance cycler

The Cycler 003 thermal cycler is reliable with excellent ramping rate (maximum over 5 ºC/sec) and most economic personal PCR.

The Cycler 003 is designed to be compact and portable.  It is only 600 cm² footprint and weighs 6.8 Kg.

The self-adjusted heated lid (100ºC to 115ºC), designed to reduce the risk of sample evaporation, can be enabled or disabled. The heated lid only comes on if the block is set above 35°C.

The powerful programming logic makes it user friendly.  Several common used methods have been created as templates for users, this helps with even the most complicated protocol program set ups.  The on-screen displayed ramping rate helps users to monitor the working condition of the machine.

Two major sample blocks formats can be chosen.

1. The small personal block:  25 X 0.2 ml and 20 X 0.5 ml

2. The half-full-size blocks:  48 X 0.2 ml and 30 X 0.5 ml.  This design allows users to have more flexibility.

Technical Specification

Temperature

Temperature range

4°C to 99°C

Block uniformity

± 0.5°C

Temperature accuracy

± 0.5°C

End of program cooling below

ambient

YES

Heating/Cooling Rate

Maximum heating rate

4.5°C/sec

Maximum cooling rate

3°C/sec

Heated Lid

Heated lid temperature

100°C to 115°C

Heated lid enable/disable

YES

Programming

Program naming using alpha keys

YES

Program password protection

YES

Number of programs (3 step)

100

Dimensions

Height

185 mm

Width

185 mm

Length

330 mm

Weight

6.8 Kg

Power

AC INPUT

120V or 230V with Switch
