Specifications
1.lab universal facilities See-saw Wave Lab Rockers2.Certificate:ISO,CE.
3.Warranty:1-2 years.
A & E Lab.
Main Products:
Atomic Absorption Spectrometer (AAS), Fluorescence Spectrophotometer,
UV Vis Spectrophotometer, Visible Spectrophotometer, Flame Photometer,
Whiteness Meter, Turbidity Meter, Colorimeter, Gloss Meter, Tintometer,
Automatic Polarimeter, Auto Melting Point Apparatus, Automatic Refractometer,
Abbe Refractometer, PH/DDS/TDS Meter, Incubator, shaker, Hotplate, Mixer, PCR, Oven, etc.

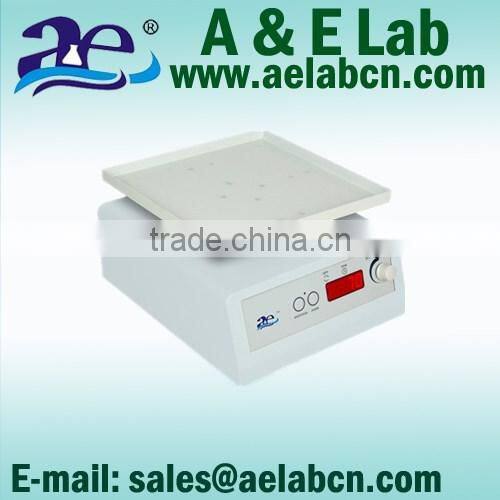

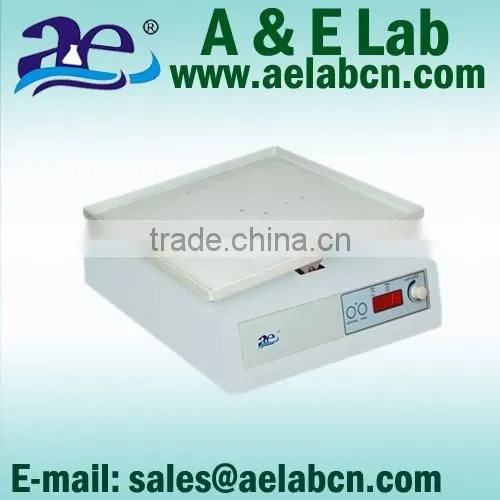

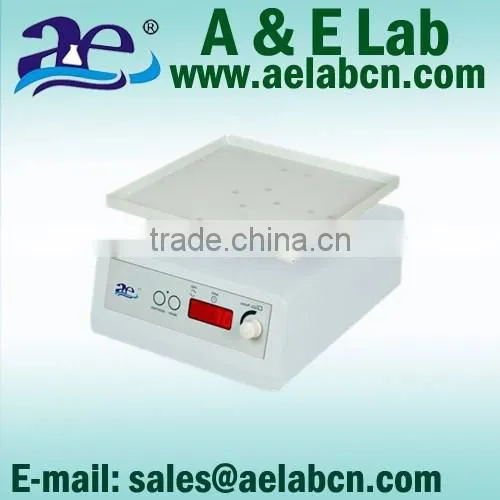

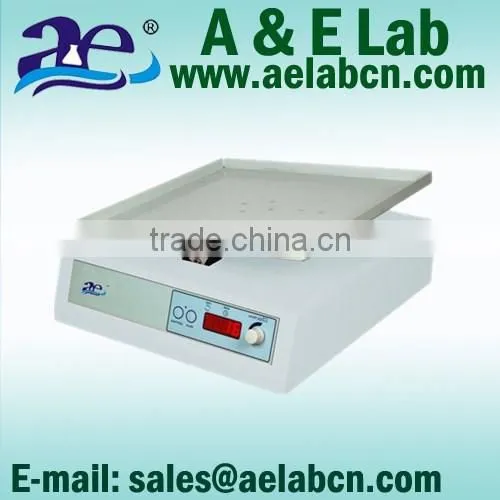

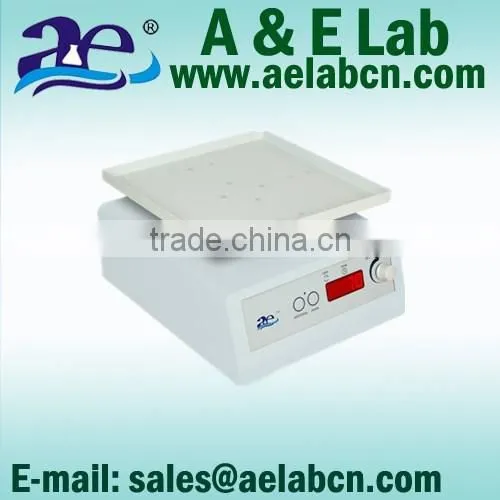

lab universal facilities See-saw Wave Lab Rockers
Model:ASRM7
Application:
Different from 3D gyration motion, the ASRM7 and ASRM8 use a see-saw motion to create wave-like
mixing process. These rockers are suitable for mixing various flat bottles, such as culture flasks, Petri
dishes etc. .
With smaller footprint, but the high driving force, more platforms can be added by stacking two more
platforms to accommodate more samples.
There are two models for this type of the rocker: Both of them are microprocessor controlled. The digital
model (ASRM8) provides digital timer with up to 9 hours setting and speed control in 1rpm increment.
The ASRM7 model provides 2-hours timers (in 10 minute integral) and 10 steps speed control without
digital display as shown in MOS.
The ASRM8 model provides a good safety feature: when the motor stalled or overload, the unit will stop,
beep and show error message in the LED display.
Technical Specification:
Model | ASRM7 | ASRM8 |
Speed range (rpm) | 5 to 70 | 5 to 70 |
Rocking type | See-saw, wave | |
Platform dimensions (mm, WXL) | 235x235 | |
Tilting Angle (degree) | 7 | |
Angle adjustable | No, fixed at 7º | |
Timer (min) | 120 | digital, 540 |
Speed control mode | 10 integral selection | digital in 1 rpm increment |
Maximum load (KG) | 10 | |
Dimensions (mm, WXDXH) | 240x300x180 | |
Operation temp. Range (°C ) | +4 to +40 | |
Maximum operation humidity | 80% | |
Net weight (KG) | 6 | |
Power supply | 230V, 50Hz, 50W | |
Product Show:
