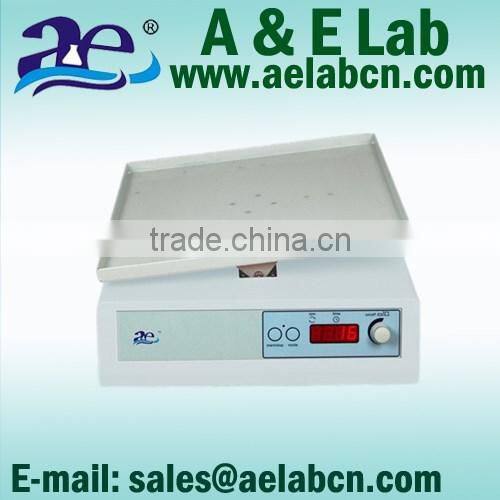

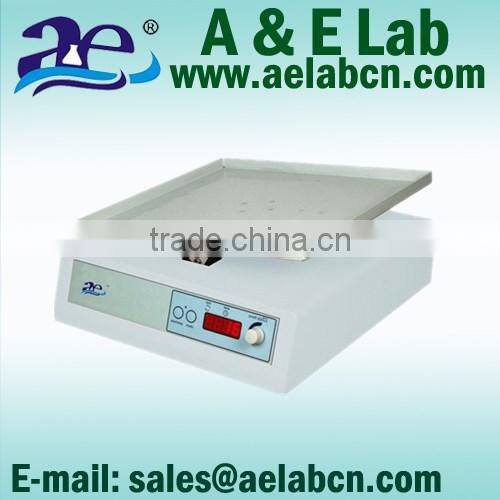

Lab Scale See-saw (wave) Rockers
A & E Lab.
A & E Lab Hot Selling includes: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer,
PCR-Cycler, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker,
See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!
The information of our instruments:
Warranty : All of our products will provide one year warranty only.
Certifications: CE&ISO
Delivery time: Within 10 days after received your payment. (AAS: Within one month)
MOQ: 1 unit
Payment term: T/T advance, paypal, western union, Moneygram.
Cooperation type: Distribute / Neutral packing / OEM / ODM.
Application:
Different from 3D gyration motion, this rocker use a see-saw motion to create wave-like mixing process. These rockers are suitable for mixing various flat bottles, such as culture flasks, Petri dishes etc.
With smaller footprint, but the high driving force, more platforms can be added by stacking two more platforms to accommodate more samples.
There are two models for lab scale rocker: Both of them are microprocessor controlled.
The digital model (ASRL-4) provides digital timer with up to 9 hours setting and speed control in 1rpm increment.
The ASRL-3 model provides 2-hours timers (in 10 minute integral) and 10 steps speed control without digital
display as shown in AOSM.
There are two models for mini size rocker: Both of them are microprocessor controlled.
The digital model (ASRM-8) provides digital timer with up to 9 hours setting and speed control in 1rpm increment.
The ASRM-7 model provides 2-hours timers (in 10 minute integral) and 10 steps speed control without digital
display as shown in AOSM.
Technical Specification:
Type | Lab Scale | Mini Size | ||
Model | ASRL-3 | ASRL-4 | ASRM-7 | ASRM-8 |
Speed Range (rpm) | 5 to 70 | |||
Rocking Type | See-saw, wave | |||
Platform Dimensions | 355x355mm | 235x235mm | ||
Tilting Angle (degree) | 7 | |||
Angle Adjustable | No, fixed at 7º | |||
Timer (min) | 120 | Digital 540 | 120 | Digital 540 |
Speed Control Mode | 10 integral selection | digital in 1 rpm increment | 10 integral selection | digital in 1 rpm increment |
Maximum Load (KG) | 10 | |||
Dimensions (mm, WXLXH) | 360x420x180 | 240x300x180 | ||
Operation Temp. Range (°C ) | +4 to +40 | |||
Maximum Operation Humidity | 80% | |||
Net Weight (KG) | 10 | |||
Power Supply | 230V, 50Hz, 50W | |||
