Introduction:

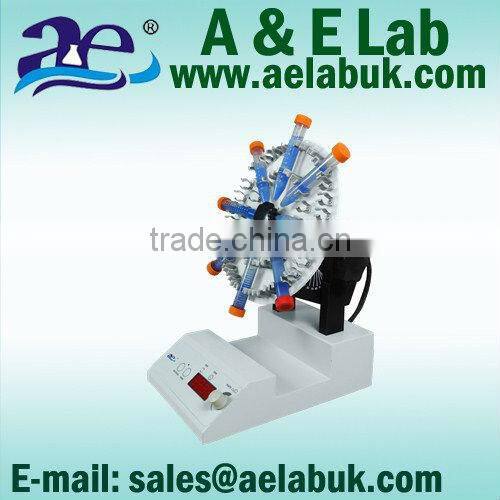

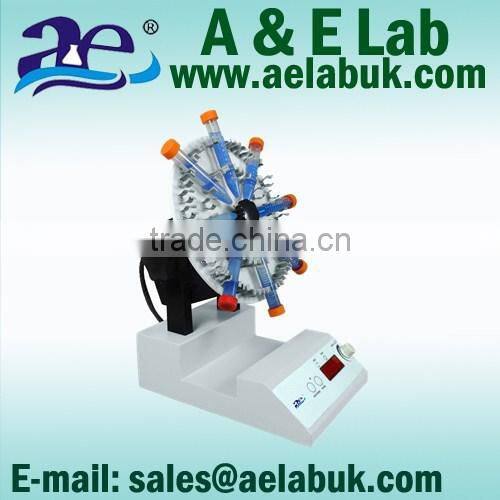

The rotatory mixers are designed to mix samples by rotating the samples platform in 360 degree through a single axis. With different platform designs, the mixers generate two types of mixing actions:
1.) The up-to-down action: when samples place along the radius direction of the sample tray, i.e. Parallel to the platform, the mixers perform up-to-down mixing action;
2.) The rolling action: when the samples place against the radius of the sample tray, i.e. perpendicular to the platform, the mixer perform a rolling effect on the samples. To prevent the fall off of the samples during rotation,
the head of the rotator can be adjusted in certain angle.
The ARM-801 and ARM-802 can be used in some biological samples which need gentle manner to avoid the disruption of the cells, such as blood samples etc.
The mixers can be operated in environment with temperature 4 – 60 degree There are two models for this type of the mixer: Both of them are microprocessor controlled. The ARM-802 provides digital timer with up to 9 hours setting and speed control in 1rpm increment.
The ARM-801 model provides 2-hours timers (in 10 minute integral) and 10 steps speed control without digital display as shown in MOS.
The ARM-801 model provides a good safety feature: when the motor stalled or overload, the unit will stop, beep and show error message in the LED display.
Technical Specifications:
Model | ARM-801 | ARM-802 |
Speed range (rpm) | 2 - 40 | |
Timer (min) | 120 | 540 |
Operation Mode | Digital without LED Display | Digital |
Operation temp. range (°C ) | 4 - 60 | |
Dimensions, mm (w x L x h) | 200 x 270 x 230 | |
Net weight (KG) | 3.2 | |
Power supply | 230V, 50Hz, 50W | |
Accessories Information:
Part Number | Description |
ARM-01 | Micro-tube holder, suits 10-11.5 diameter tubes |
ARM-02 | Test tube holder, suits 9-20 dismeter tubes |
ARM-03 | 50ml centrifuge tube holder, 25-35mm diameter |
ARM-04 | Test tube holder, 12mm, hole depth 80mm |
ARM-05 | Test tube holder, 16mm, hole depth 80mm |
ARM-06 | Test tube holder, 26mm, hole depth 80mm |
Tube rotators:
