A & E Lab.
Welcome to inquire us!
The information of our instruments:
Warranty : 1 year / 3 years / 2 years
Certifications: CE&ISO
Delivery time: Within 10 days after received your payment
MOQ: 1pc
Payment term: T/T advance, paypal, western union, Moneygram
Cooperation type: Distribute / Neutral packing / OEM / ODM.
Introduction:

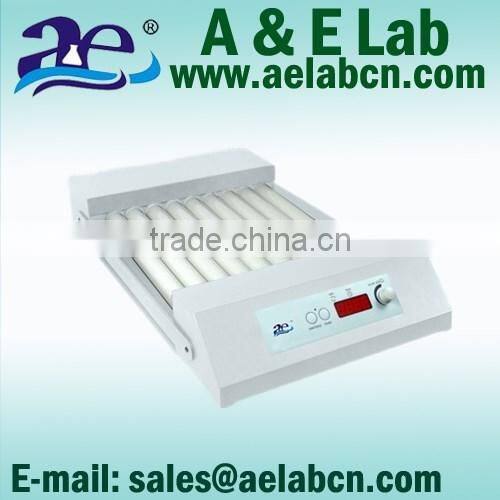

The Tube Roller Mixers mix samples through the simultaneously rolling action of the tubes and the carried
vessels (bottles, test tubes etc.). As the tubes rolling, the vessels are rolling too, causing continuous mixing of the liquid inside the vessels. The most advanced features are the convenient sample handling and the
accommodation of various types of vessels in the mixer without adding any adapters or accessories compared to other types of mixers.
There are two types of action on the tube rolling mixers:
1. With a slightly tilted angle on the axes of the tubes, a gently rocking action happens when tube rolling.
It helps the mixing efficiency of some viscous samples in gentle mode. And it is ideal for mixing blood
samples, viscous substances and liquid-solid suspensions where minimum aeration is required or for
aiding de-frosting of samples.
2. A rolling action without rocking effect. Samples are mixed with the continuous rolling action. There are
two models for the rollers: Both of them are microprocessor controlled. The digital model (D) provides
digital timer with up to 9 hours setting and speed control in 1rpm increment. The AD model provides
2-hours timers(in 10 minute integral) and 10 steps speed control without digital display.
The D model provides a good safety feature: when the motor stalled or overload, the unit will stop, beep
and show error message in the LED display.The LTR series are having nine rollers which suitable for large vessels and tubes. And the MTR series are smaller version with six rollers. The loading capacity is 10kgfor the above mixers.
Technical Specifications:
Model | ATRL-1 | ATRL-2 |
Action Mode | Rocking/Rolling | |
Number of Rollers | 9 | |
Speed | 5 to 60 rpm,10 | 5 to 60 rpm, Digital |
Maximum Load | 10kg | |
Controls | Digital | |
Timer | 120min | 540min |
Roller Size | 340X30,mm (LXD) | |
Dimension | 565X360X110mm | |
Net Weight | 7kg | |
Power Supply | 230V, 50Hz, 50W | |
Model | ATRL-5 | ATRL-6 |
Action Mode | Rocking/Rolling | |
Number of Rollers | 6 | |
Speed | 5 to 60 rpm,10 integral selection | 5 to 60 rpm, Digital |
Maximum Load | 10kg | |
Controls | Digital | |
Timer | 120min | 540min |
Roller Size | 340X30,mm (LXD) | |
Dimension | 565X360X110mm | |
Net Weight | 5kg | |
Power Supply | 230V, 50Hz, 50W | |
Model | ATRL-3 | ATRL-4 |
Action Mode | Rolling only | |
Number of Rollers | 9 | |
Speed | 5 to 60 rpm,10 integral selection | 5 to 60 rpm, Digital |
Maximum Load | 10kg | |
Controls | Digital | |
Timer | 120min | 540min |
Roller Size | 340X30,mm (LXD) | |
Dimension | 565X360X110mm | |
Net Weight | 7kg | |
Power Supply | 230V, 50Hz, 50W | |
Model | ATRL-7 | ATRL-8 |
Action Mode | Rolling only | |
Number of Rollers | 6 | |
Speed | 5 to 60 rpm,10 integral selection | 5 to 60 rpm, Digital |
Maximum Load | 10kg | |
Controls | Digital | |
Timer | 120min | 540min |
Roller Size | 340X30,mm (LXD) | |
Dimension | 565X360X110mm | |
Net Weight | 5kg | |
Power Supply | 230V, 50Hz, 50W | |
