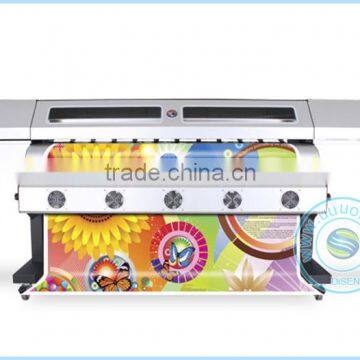

Indoor and outdoor 1.6M DX5 high speed galaxy printer

Model

UD-161LC

Full aluminum platform / Bearing rail, stable and long durability

Print head

DX5

Number of print head

1 Head

Maximum print width

1,600mm

Print Speed (m2/h)

Print mode

Standard output(m2/h)

RD

2 PASS 29

D

3 PASS 19

S

4 PASS 14

Q

6 PASS 9

HQ

8 PASS 7

BL

12 PASS 4

Ink

Type:

Water based / Eco Solvent Ink

Color :

4 Color (C,M,Y,K)

Capacity:

1L per Main Tank of Each Color

Ink Supply System

Auto Ink Supply System

Media Width

Maximum 1,680mm

Media Type

Vinyl, Polyester, Flex, Back-lit Film, PS Board, KT Board, PVC Board, etc.

Auto Media Feeding System

Equipped (Max. Media Weight 25kg)

Auto Cleaning System

Anti-clogged Flash Function & Capping System

Pre-heating & Drying System

Equipped

Clamp

Equipped

Print Interface

USB 2.0

Print head Height

2 to 6 mm from Media

RIP Software

Ultraprint, Maintop, Photoprint, Wasatch, Ergosoft

Input Power

AC 220V, 50Hz/60Hz

Machine Dimension / N.W

L2,820 x W990 x H1,260mm / 200KG

Package Dimension / G.W

L2,860 x W1,050 x H685mm / 377KG

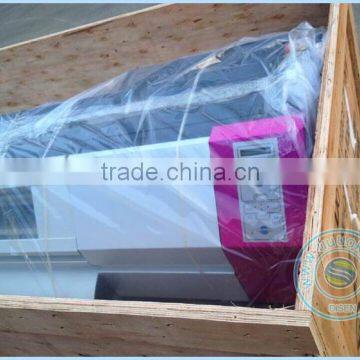

Shipping info.:

Measurement for 1 set:2.057CBM
