Eyelet Punching Machine for Sale

Eyelet machine

1. Details

2. Application:
Fabric, Canvas, Banner, Poster, Sailcloth, Flexible materials, etc.

3. Introduction

(1). With dual safety circuit design, preventing from continuous impact.

(2). Usually, a couple of grommets are made on the banner fabric, while our machine just use only one grommet to make the eyelet.

(3). The good for using one grommet is the fixing speed can be 5 times faster than using a couple of grommets.

(4). The operation is more convenient and the worker can make 30 eyelets per minute(1800 eyelets per hour).

(5). The machine can reduce the material cost by using one grommet.

(6). The eyelets are not easy to rust by using one grommet in this way.

eyelet machine

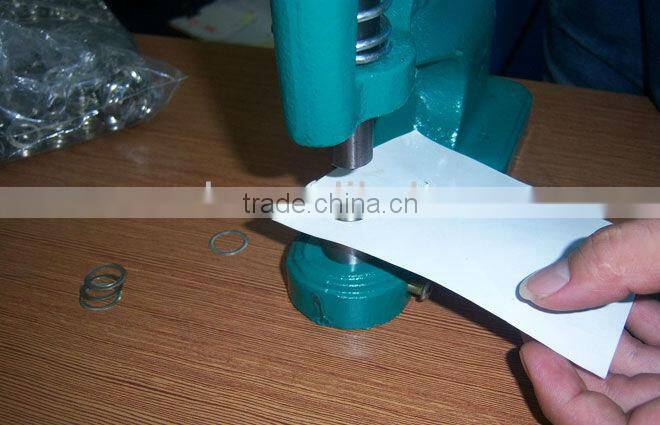

Eyelet punching machine for sale

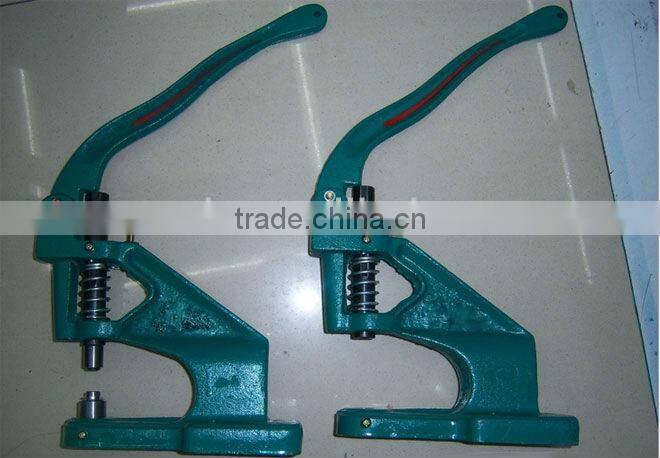

Eyelet punching machine for sale

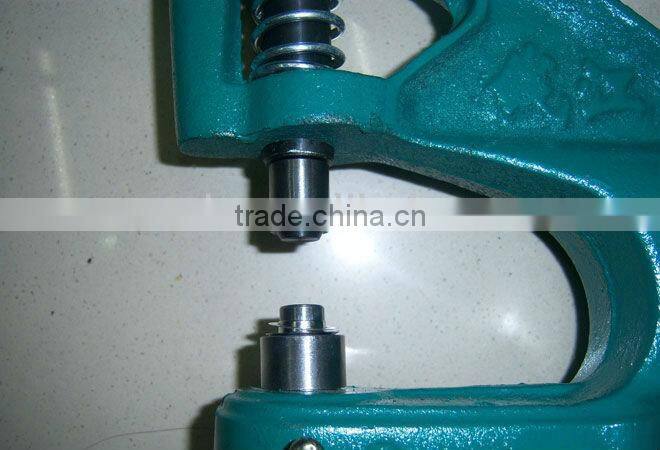

Eyelet punching machine for sale

Eyelet punching machine for sale

1. Grommets:

There are nearly 70 kinds of different grommets for choosing : different sizes, different colors, different grades,etc.

2. Dies:

Three popular models for choosing: 4# ( 10mm), 5#( 12mm), 6#( 14mm).

Manual eyelet machine Steps
Step 1: Using hex keys, loosen upper and lower screws (they hold die pieces in place).

Place cap die in the bottom hole of snap press. The cap die is the solid metal one with a curved top.

The hex key can be used to secure the cap die in place, however this isn really necessary as it stays in place on its own.

Step 2: Decide which side of the snap you want to apply first (socket or stud), then insert the appropriate die piece in the snap press. We have decided to use a socket die. When die is in place, tighten the screw with the smallest hex key to hold it in place

Step 3: Find a socket piece and snap it into the socket die. It will click in place

Step 4: Take the cap piece and push the cap prong into the fabric. It doesn need to push all the way through the fabric, just hold it firmly in place.
