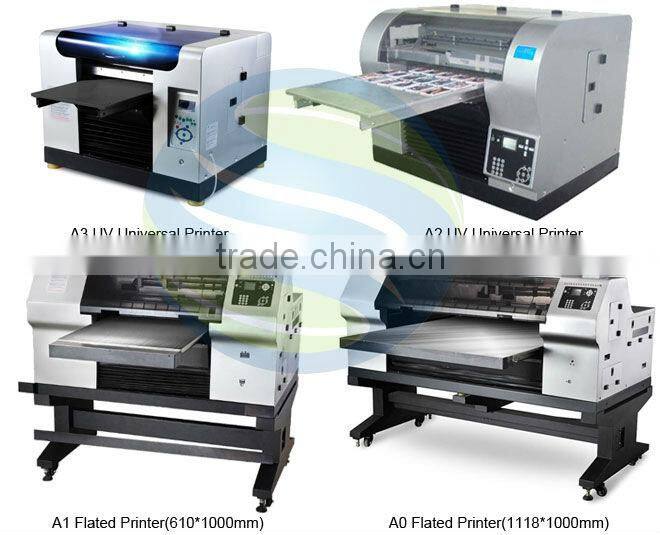

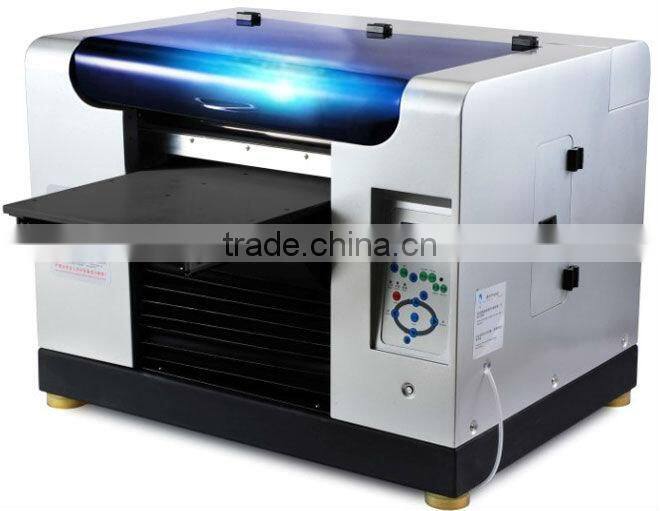

Digital Ceramic Tile Printing Machine

ceramic tile printing machine

ceramic tile printing machine

ceramic tile printing machine

ceramic tile printing machine

ceramic tile printing machine

ceramic tile printing machine

Other relevant
Recommended Products

UV flatbed printer common faults and troubleshooting
1, you can not operate the printer:
1), did not turn on the power
Solution: Press the power button in the operation panel
2) is not online
Solution: Press the start key on the operation panel online
3), the drive is not installed
Solution: Based on the above UV flatbed printer driver installation "

2, break, plug
Appear disconnected, first check the print cartridge is out of ink. No ink, you need to add a check; no shortage of ink, inking tube whether there is a bubble, a bubble, it must be 5ML clean syringes alignment ink sac mouth, out of the air. No shortage of ink and ink feed tube and there are no air bubbles, the need for nozzle check still appear broken, nozzle clogging.
Nozzle clogging, can generally be divided into: Sprinklers soft plug nozzle rigid plug. Most dust particles in the air, clogging of the nozzle, it may be UV flatbed printer unused for a long time, the ink has dried, condensation in the nozzle, or different ink mix with each other, resulting in a chemical reaction.
Soft plug is larger viscosity ink in the nozzle due to disconnection fault caused due to various reasons, sometimes just be attached to the surface of the ink outlet nozzle, usually after self-cleaning ("Printing Preferences à Maintenance à print head cleaning" ) up to more than three times, can be restored, if the three are not clear, indicating that the nozzle block was more serious, more cleaning frequency is not necessarily effective, and waste a lot of ink.
If the break is serious or not print color nozzle blocked, the first pumping waste ink nozzle check, if the test line is complete, which means that the effective pumping waste ink, continue to smoke, then print the patch, and then nozzle check.

3, even for the system failure
Cartridges, the ink delivery lines, towline and ink sac composition even for the system.
The inking tube should be inserted into the bottom of the ink cartridge, but the gap should be left with the bottom, or will cause the the inking tube not suck the ink. The inking pipe can not be bent, otherwise it will cause the ink supply is not smooth. The ink sac Loumo, should be promptly replaced.

4, grating failure
The grating transfer data channel, you must at all times be kept clean, so as not to cause the sensor to read data, Carriage moves back and forth abnormal fuzzy print effect.
Grating is not clean, wash immediately with alcohol.

5, Print imaging heap ink or bulk ink
If the print object to print out the pattern heap ink or bulk ink, may be:
Print object not spray coating;
Coating spray unevenly;
Spray too little.
Print Print object, too far away from the nozzle, it will cause the print imaging or bulk ink is not clear.

UV flatbed printer on the market predominate
UV universal printer is the printer to print all planes or to tile on a flat surface paper, cloth, glass, film, etc.. It is composed by a rectangular frame member and a lateral movement to control the printing head in this rectangle, it requires something to be printed as long as the plane or to tile the plane, it can be printed, regardless of its size, width, thickness, wet and dry, elastic, soft and hard, light and heavy even walls, buildings and so on. UV flatbed printer suitable for small batch production of personalized, but also a large batch of high-volume production requirements, it is representative of the emerging productivity.

UV flatbed printer production advantages:
1, the original digital printing confined to a flexible material, needs to be printed flexible live parts stick mounted to a rigid material, UV flatbed printer inkjet many economic, printing materials in prepress and postpress virtual deal specifically with save a lot of manpower and material resources.
2, screen printing can be used for the printing of rigid material, but because of the higher cost of the plate making, applicable only in the long version of the live parts, and now with UV flatbed printer, to achieve a true no printing, leaflets and batch processing costs, you can cost-effectively in the short version of live parts, you add more business opportunities and profits.
3, UV flatbed printer supplement the deficiencies of the traditional screen printing process, not only for a small print run of live parts, can also be used for proofing or analog image effect, customers can choose from a variety of techniques most suitable technology.
4, UV flatbed printer design, the production process is simple, even single-person operation to meet customer delivery needs Lidengkequ.

UV flatbed printer Industry:
Glass industry
UV flatbed printer can print directly on the glass surface of a variety of patterns, instead of hand painting, free version, efficient, low-cost, colorful real-time processing, ease of operation for the glass industry customers save a lot of time using the device has brought considerable economic benefits for the manufacturer.

Decoration Industry
UV flatbed printer can print directly to the ceiling, fire board, aluminum composite panel, MDF, stone, ceramics, glass and other decorative surface of the material to the desired pattern, to meet the demand for personalized decoration, building decoration companies bring considerable economic benefits .

Signage industry
UV flatbed printer can print directly to the surface of the plate material in all kinds of hard pattern alternative to screen printing, corrosion, film and other traditional signs of reduced process, reduce costs, and increase the firm level, electric signs, traffic signs safety instructions signs, reflective signs and other manufacturers is the ideal equipment.
The shell phone industry as well as U disk industry here is not listed.

UV flatbed printer maintenance strategy
1, to ensure that the UV flatbed printer surroundings clean. Working environment too much dust, easily lead to poor lubrication car guide shaft, blocked the movement of the print head during printing, causing the print position is inaccurate or damage and crash impact mechanical framework. When the print head back to the initial position and restart the computer, the printer will make the print head back to the initial position, then clean printhead, will therefore result in unnecessary waste of ink. Method to solve this problem is often to wipe dust from the axis of the guide and the guide shaft to be lubricated (the choice of good fluidity and lubricants, such as sewing machine oil).
2, must ensure that UV flatbed printer has a solid working platform, do not place any objects on top of the UV flatbed printer. The printer prints the front cover must be closed to prevent dust from entering the machine or other hard objects to hinder the movement of the printer trolley. The prohibited hot plug the printer cable, this may damage the printer port of the printer and the PC parallel port, serious and even cause damage to the motherboard of the PC. If the printout is not clear, the available printers automatic cleaning function to clean the nozzle, but consumes a small amount of ink. The continuous cleaning after a few print still not satisfied, this time may have run out of ink, the ink cartridge needs to be replaced.
3, UV flatbed printer is turned off, so that the print head back to the initial position (the printer is in the suspended state, the print head automatically returns to the initial position). This one to avoid the next time you turn on the printer re-cleaning nozzle operating a waste of ink, the second is because the nozzle protective cover can be sealed in the initial position, the nozzles are not closed.
4, UV flatbed printer cartridges require frequent calibration: a printer experienced users know the printer reinstall the ink cartridge or for a new cartridge, the printer must be corrected in order to improve print accuracy and print quality.
5, UV flatbed printer ink cartridge is not used, it is best not to remove, so as to avoid the waste of ink or printer ink measurement errors.
6, UV flat-panel printer cartridges when not in use for a long period at room temperature away from direct sunlight. Ink evaporates quickly in this environment, it is easy to cause nozzle clogging. In addition, in the cold and damp environment, the print head circuit and ink is problematic.
7, other UV flatbed printer cartridges must be carried out in accordance with the operating manual steps, with particular attention to the power turned on. Because after replacing the ink cartridges, printer ink delivery system will charge the ink, and this process will not work in the off state, the printer can not be detected to reinstall the print cartridges. In addition, some printers is the use of the metering of the ink capacity of the inside of the printer to the electronic counter (especially in the color ink usage statistics), when the counter reaches a certain value, the printer Analyzing the ink end. Its internal electronic counter in the cartridge replacement procedure, the printer will be reset to confirm the installation of a new cartridge.
