medical neonatal incubators for infant

neonatal incubators specification:

neonatal incubator Brief Introduction:
Two control modes: Air mode and baby mode controlled by micro-computer.
Set temperature, air temperature, baby temperature are displayed separately.
Natural air flow humidity.
Inclination of bassinet is adjustable.
Failure alarm indication.
RS-232 connector.

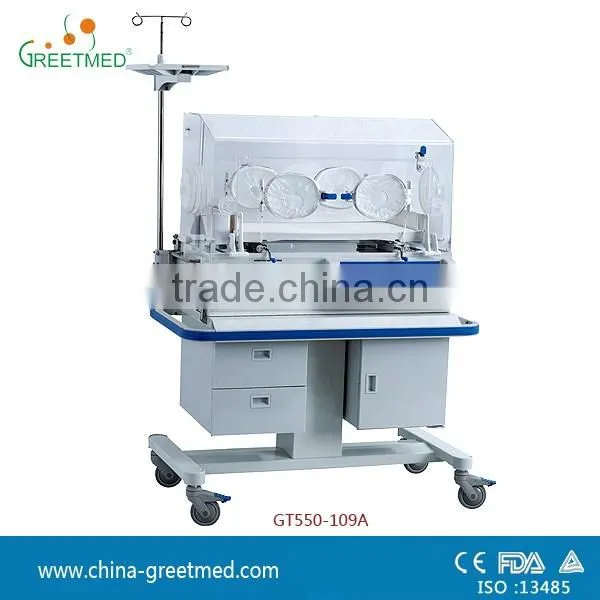

GT550-109A is configured with fixed neonate bilirubin phototherapy equipment(with blue fluorescence lamps)

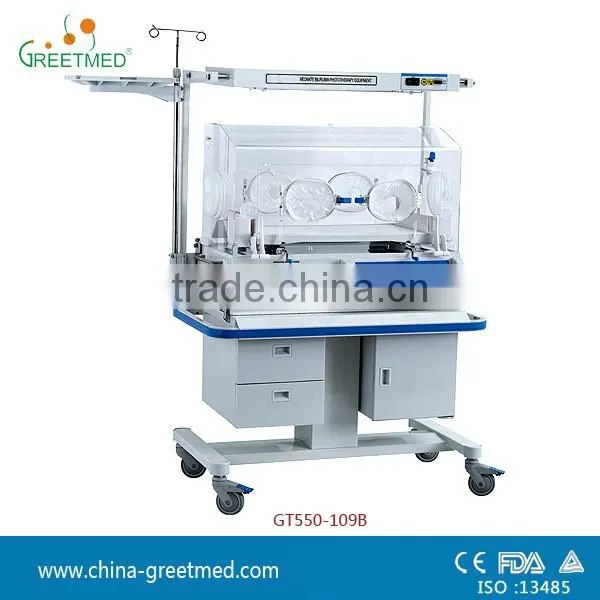

GT550-109B is configured with fixed neonate bilirubin phototherapy equipment mode (with LED blue lights)
neonatal incubator Standard configuration:
GT550-109A: Main body, mobile cabinet, temperature controller, baby compartment, I.V. pole, shelf.

GT550-109B: Based on GT550-109A, with neonate bilirubin phototherapy equipment(fixed model).
Optional parts: >37'C temperature override mode function, vertical height adjustment stand(VHA stand).

neonatal incubator Specification:

Power supply : AC220V-230V, 50Hz

Input power: 850VA
Mode of control: Air mode and baby mode controlled by micro-computer.

Control range of air temperature: 25°C~37°C(override mode: 37-39°C)

Control range of baby temperature: 34°C~37°C(override mode: 37-38°C)

Accuracy of skin temperature sensor: ≤0.3°C

Variability of temperature: ≤0.5°C

Uniformity of temperature: ≤0.8°C(mattress is on the horizontal position).

Noise inside hood: ≤60dB(A)

Inclination of the bassinet: ±12°.
Failure alarm: over temperature alarm, deviation alarm, sensor failure alarm, fan motor alarm, power failure alarm, system alarm and so on.
neonatal incubator Requirements of environment:
Environment temperature: 20'C~30'C.(set temperature should be higher 3'C than the environment temperature).
Wind speed of environment: ≤0.3m/s

neonatal incubator Package:
Package: each unit is packed as two cartons
Size(main body): 108.5mmx64mmx91.5mm
             (cabinet): 112.5mmx66.5mmx73mm
Gross weight(main body): 63kg(for GT550-109A)

                                             75kg(for GT550-109B)
                            (cabinet): 68kg
