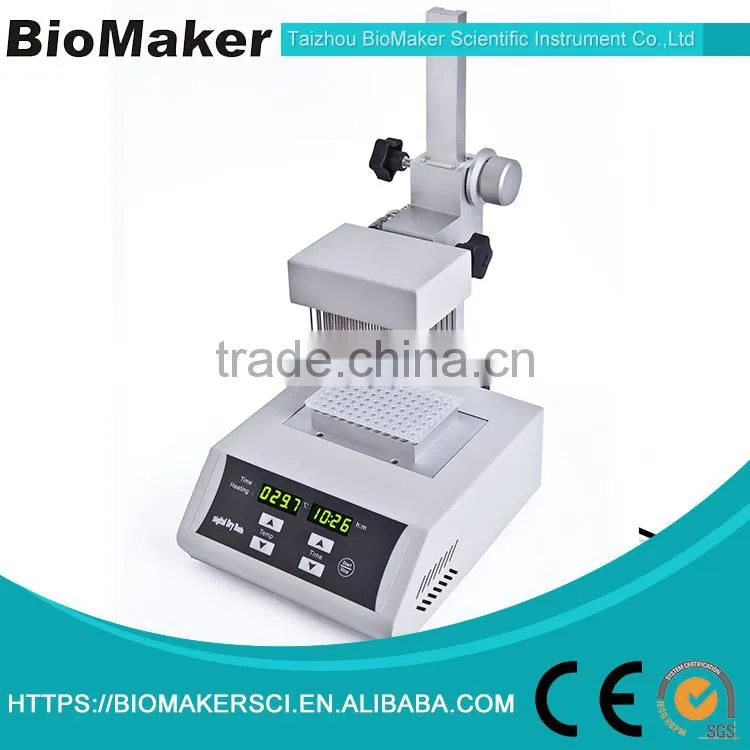

Nitrogen Sample concentrator instrument with good quality
Product Numbers: BS-NDK200-1A
Product description: The nitrogen sample concentrator (96-gas-needles) BS-NDK200-1A is mainly used for concentrating or preparing sample in batch. Such as drug screening, hormone analysis, liquid phase and mass spectrometry in the analysis of sample preparation. It works by blowing nitrogen in the surface of sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of the rotary evaporation instrument, nitrogen sample concentrator can efficiently concentrate dozens of samples simultaneously.
Product features :
1, The heater allows samples to be heated rapidly to the evaporation temperature, through the gas blow to the solution surface via needle at the same time, prompting rapid evaporation and concentration solution.
2, The gas chamber height can be adjusted, the length of standard gas needle is 80 mm.
3, Each blow needle can be controlled independently, can be blown, separate flow regulation, no waste of gas.
4, The entire system can be arranged in the ventilation cabinet when process concentration of toxic solvents,
5, Built in over-temperature protection device, automatic fault detection and alarm function.
6, LED display, temperature and time diminishing display, the operation is simple and convenient.
7, configured standard gas chamber and special adjustable bracket.
Model | BS-NDK200-1A Concentration(96-gas-needles) |
Temperature Range | R.T.+5°C ~ 150°C |
Heating Time | ≤30min (from 40°C to 150°C) |
Temperature Accuracy (40~100°C) | ±0.5°C |
Temperature Accuracy (100~150°C) | ±1°C |
Temperature Uniformity (100°C) | ±0.5°C |
Blocks Quantity | 1 block |
Temperature Display Accuracy | 0.1°C |
Time Range | 99h59min |
Nitrogen Flow Rate | 0~10L/min |
Nitrogen Pressure | ≤0.1MPa |
Power | 200W |
Dimensions | 260 x 220 x 500 (mm) |
Blocks Selection | Refer to “Exchangeable blocks for NDK200-1A” |
Conventional configuration
Supply 2 types of optional blocks – BS-DT16 and BS-DT17. Block can be interchanged easily. Optional flow regulating valve.
Exchangeable blocks for BS-NDK200-1A
Type | Tube Diameter | Tubes | Block Size (mm) |
BS-DT16 | 0.2ml centrifugal tube | 96 | 78 x 114 x 26 |
BS-DT17 | Plate(no holes) | 96 hole enzyme plates | 81 x 123 x 19 |
Q: What after-sales service can be provided by BIOMAKER ?
A: The after-sales service of BIOMAKER is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.
For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
