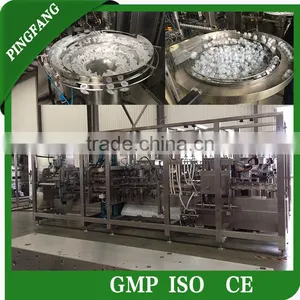

Factory Supply SRD1A Automatic Non-PVC Double Layer Film IV Infusion Bag Production Line
Description
SR series Non-PVC soft bag IV-solution production line is the highest efficiency product line, which is compiling all the most advanced technique .It is the upgrading and updating products for existing IV-solution production line, can finish such procedure as printing word , bag-making, bag-filling and sealing .
Main Characteristic
--Applying the advanced technology,it has reasonable structure and stable, reliable feature..
--Chinese touch screen operation, aptitude control, time, temperature, pressure and filling mete .etc .parameter can be setted and monitoring by computer.
--The machine memory is very strong. Aims at different film material, user can storage the practice welding parameter, when changes film it can be used directly.
--It can set automatic start; make the machine warm-up, in order to guarantee enough running time.
--The filling system adopts mass flowmeter to metering, high precision and wide range for filling quantity, and can realize CIP/SIP.
--It has high arranges. The servo system, PLC, pneumatic elements and so on, are complete select and use international brand, assure to run in steady and reliable.
--Its structure is unique, and the produce efficiency is high, it can produce 6000 single chamber or multi – chamber soft bags every hour.
--For patent design, The production line becomes bag making , filling and sealing integrated machine its length is compressed 1/3, the area of workshop and air-conditioner purify are decreased 1/3, so it can decrease the investment cost and use cost in furthest.
Production Capacity | 100-1200 BPH / 250 ml; 1000ml about 600bags/hour |
Measurement Tolerance | 100ml≤±1.5%; 250ml≤±1%; 500ml≤±0.7%; 1000ml≤±0.5%(style of mass flow); |
CIP/SIP | 125℃-30mins; |
Solution Temperature | Max. 50 ℃, |
Solution Pressure | 2-4kg/cm2 |
Bag Film | Non-PVC double-layer film |
Film Thickness | 190±20um(tolerance: max.10%); |
ID of Film Rol | Min.150mm |
Max. OD of Film Rol | Max.600mm |
Specification | 1000ml(Others to be tailored) |

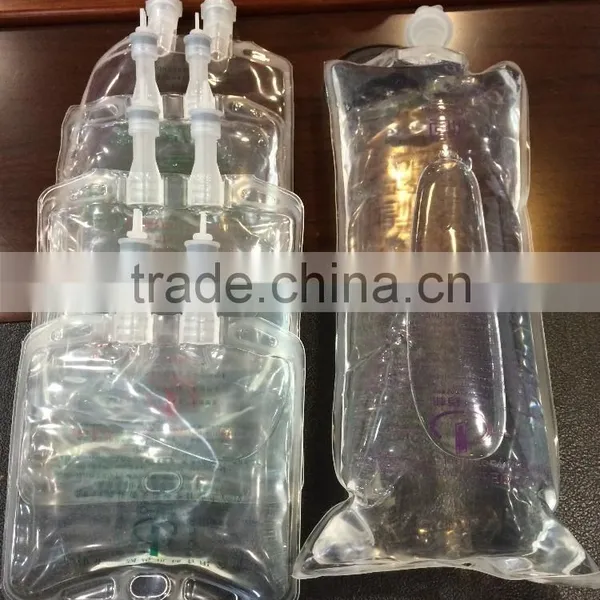

Bag Form | Double/single hard ports, press(heat seal) sealing; |
Printing | Hot foil printing |
Power Supply | 380V/50Hz/, 8Kw(1A), 25Kw (The maximum power 30KW, into the electric capacity of 35 kW, three-phase five wire is ≥5X25mm) |
Compressed Air Pressure | 6Bar(dry/oil less), 5um; 1000L/min(1A) |
Clean Air Pressure | 4Bar(dry/oil less), 0.22um; 500L/min(4A) |
Cooling Water | 15-20℃; 100L/H |
Noise | max.75dB; |
Relative Humidity | max.50% |
Ambient Temperature | max.24℃; |
Material | Contact with solution to be ultra-low carbon austenitic S/S, the rest mainly low carbon austenitic S/S; |
Overall Dimension | 4.21 *2.1 *2.1M (1A) (Lx W Xh) |
