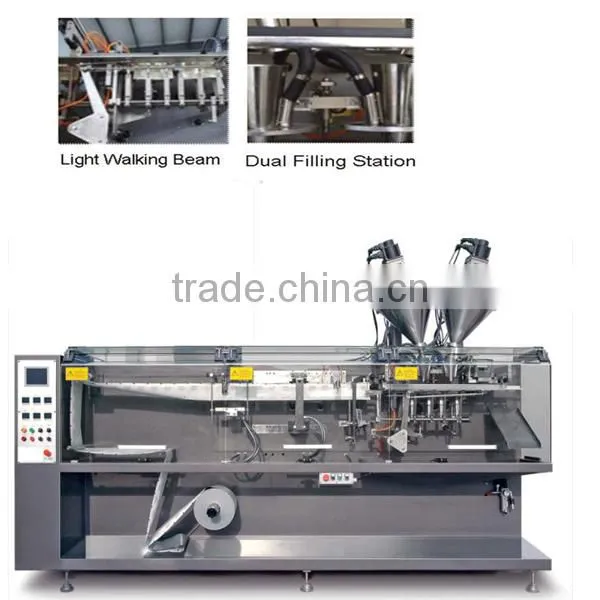

BS-180 Full-Automatic Horizontal Oatmeal cereals small Bag filling sealing Packing Machine for powder and Granule mixture
Function:

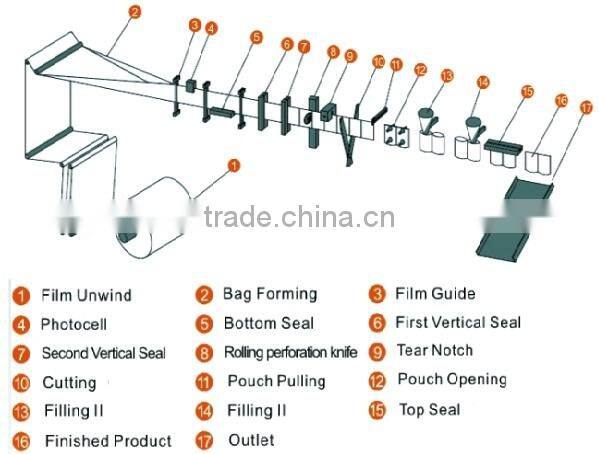

The machine can automatic finish bag forming, filling, easy tear notch making, print date, finished bag discharged.
Characteristics:
1) PLC control, English and man-machine interface, operating easy and simple maintain.
2) Bagging, sealing and filling is relatively independent of the system
3) could fill powder, granule or liquid product by change filling device,two or even more products are nice with one machine.
4) Digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) sanitary package for your product and perfect package appearance.
6) Easy and fast adjustment of change over, smooth performance and low noise Sensible safety device and no pollution during production to get Friendly working environment
Technical Specifications:
Model | BS-180 |
Measuring range | 0-300g |

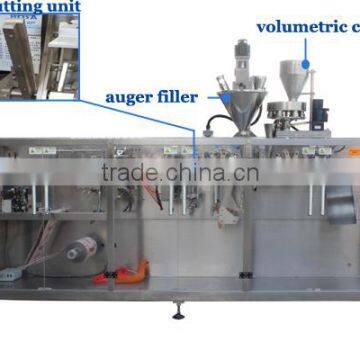

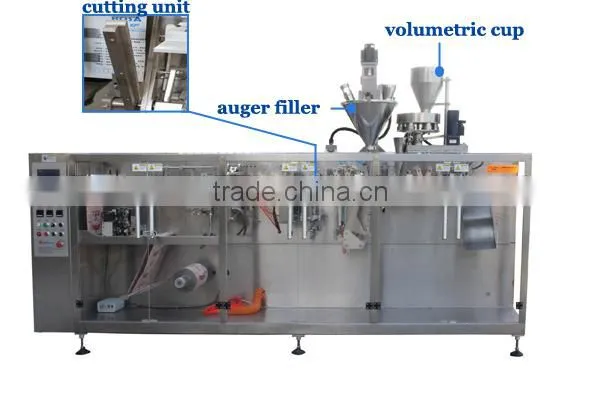

measuring method | Auger filler ; Volume cup ; Hopper Linear Weigher |
bag size | Length: 70-225mm Width:65-180mm |
Capacity(max) | 70 bags/min |
Control style | PLC+ English touch screen |
Power | 5KW |
Power supply | AC 380/220V 50Hz |
Air pressure | 0.6Mpa |
Weight | N.W.:1600Kg |
Dimensions(mm) | 3500(L)×940(W)×1370(H) |
Bag shape | Three or four side sealing |
Showcase:
Installing and Commission:
We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .
Warranty period:
One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
