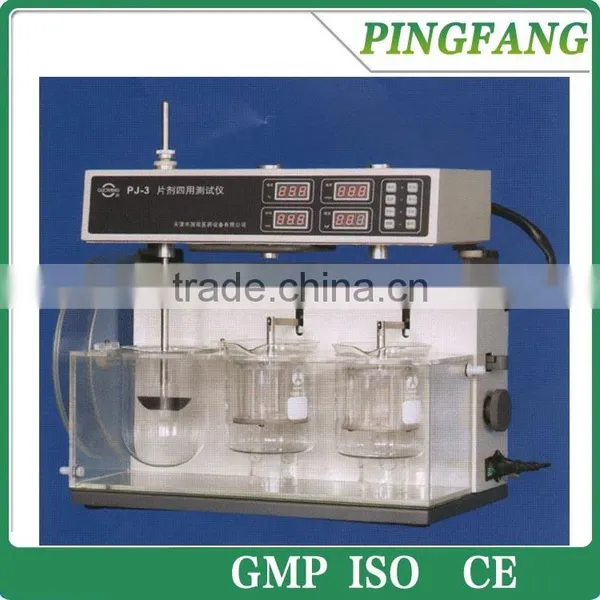

Factory sale PJ-3 Tablet four-usage hardness disintegration friability tester
It has four functions: detecting pharmacy dissolution, disintegration, friability/abrasion and hardness of tablet.
I. Applicable standards:
National standard (Chinese codex)/2005/
Corporate standard (Dissolution tester)Q/12XQ0187-2004
Corporate standard (Disintegration tester)Q/12XQ0188-2004
Corporate standard (Tablet friability tester)Q/12XQ0189-2004
Corporate standard (Tablet hardness tester) Q/12XQ0186-2005
II. Features:
1.Intellectualized, auto-control, auto-test, auto-diagnose,auto-alarm.
2.The circular water current pumped by magnetism pump can heat the system equally, and the bath liquid can achieve an even temperature.
3.Temperature is high accurately auto-controlled.
4.Auto stop at timing point.
5.Parameters can be preset at any time, the preset and real data are displayed alternately in time.
6.It has three vessels and three poles arranged on one line. The head part of the instrument can be artificially turned over smoothly and flexibly.
7.Two disintegrations run synchronously. Auto stop at timing point.
8.The basket units and paddle units are made of imported stainless steel(SUS316L)
9.High accuracy is achieved in testing rotary speed and counting friability.
10.The hardness has high accuracy press sensor and hardness data is displayed in Newton.
11.It tests tablet hardness continuously. The tablet is loaded and pressed artificially
12.Auto-display, auto-memorize, auto-reset, auto-retest.
III. Technical parameter:
| Temperature range | (ambient to +45.0℃)±0.3℃ |
| Speed range | (20-200)rpm±2rpm |
| Automatic time range | (1~900)min±0.5min |
| Stations of dissolution | 3 |
| Paddle radial run-out | ±0.5mm |
| Basket radial run-out | ±1.0mm |
| Basket assemblies | 2 |
| Nacelle up and down frequency | (30~32)/min |
| Nacelle up and down range | (55±2)mm |
| Drum | 1 |
| Drum’s size | radius: Φ286mm depth:39mm |
| Hardness range | (2~200)N |
| Probe procession range | (3~20)mm |
| Power | 220V/50HZ/600W or 110v/60Hz/600w |
| Dimension | (590x300x480)mm3 |
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
Our Customers:
Our Certificates:
Q1: What information should I let you know if I want to get quotation?
A: -the size of products (Length*Width*Height)
-the material
-if it is possible, please provide us the pictures or the design drawings, our designer will analyze your samples and give you exact details.
Q2: Is there MOQ for our machine?
A: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q3: Do you have manual or operation video for us to know more about the machine?
A: Yes, of course. Please email us and ask for it. We will send you soon.
Q4: When can I get the price?
A: We usually quote within 24 hours after getting your inquiry. If you are urgent to get the price, please call us or tell us in your email. We will regard your inquiry priority.
Q5: How does your factory regard quality control?
A: Quality is priority. It’s the basement of company’s development. From the beginning of opening company, we especially focus on quality job. Our pharmaceutical equipment have passed the GMP model patents and invention patents issued by State Patent Office of China.
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
