DTJ-C Semi Automatic Capsule Filling Machine, Manual Capsule Filling Machine

DTJ-C Semi Automatic Capsule Filling Machine, Manual Capsule Filling Machine photo-1
DTJ-C Semi Automatic Capsule Filling Machine, Manual Capsule Filling Machine photo-2
DTJ-C Semi Automatic Capsule Filling Machine, Manual Capsule Filling Machine photo-3
DTJ-C Semi Automatic Capsule Filling Machine, Manual Capsule Filling Machine photo-4
DTJ-C Semi Automatic Capsule Filling Machine, Manual Capsule Filling Machine photo-5
DTJ-C Semi Automatic Capsule Filling Machine, Manual Capsule Filling Machine photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Capacity:
12500Capsules/hour
Control Mode:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Capacity 12500Capsules/hour
Control Mode Semi-Automatic
Place of Origin Shanghai, China
Brand Name PF Manual Capsule Filling Machine
Model Number DTJ-C
Dimension(L*W*H) 1290*685*1600mm
Weight 330KG
Certification CE, ISO /CE
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

DTJ-C Semi Automatic Capsule Filling Machine, manual capsule filling machine



Applications

DTJ-C Semi Automatic Capsule Filling Machine, manual capsule filling machine



1. The DTJ-C Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance.

2. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules.

3. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.

4. The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump.

5. China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 97%.



Technical parameters



Maximum productive capacity

12500(pcs)/(h)

Applicable capsules

00-4#  machine-made standard capsules

Power

2.2kw

Overall dimensions

1290x685x1600mm

Weight

330kg

Filled medicine type

Not adhesive or wet powders and small granules

Air pressure

0.03m3/min, 0.7MPa

Vacuum pump

evacuating rate: 40m3/h



Pictures

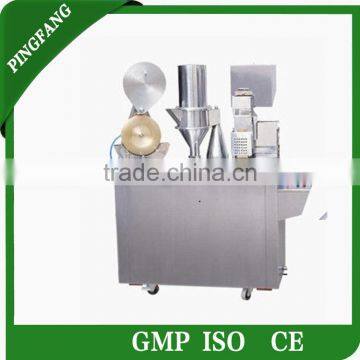

 Machine Show



                          DTJ-C Semi Automatic Capsule Filling Machine, manual capsule filling machine





Samples



DTJ-C Semi Automatic Capsule Filling Machine, manual capsule filling machine

DTJ-C Semi Automatic Capsule Filling Machine, manual capsule filling machine



DTJ-C Semi Automatic Capsule Filling Machine, manual capsule filling machine

DTJ-C Semi Automatic Capsule Filling Machine, manual capsule filling machine
