Home > Products > Capsule filling machinery > JTJ-A semi automatic capsule filling machine with CE confirmed

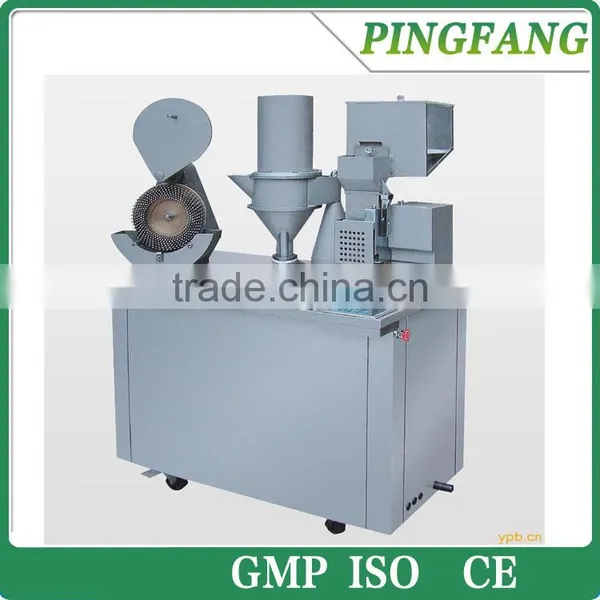

JTJ-A semi automatic capsule filling machine with CE confirmed

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 10 Unit / Units per Month
Port Shanghai port China(Mainland)
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Capacity	25000Capsules/hour
Control Mode	Semi-Automatic	Place of Origin	Shanghai, China
Brand Name	PF	Model Number	JTJ
Dimension(LWH)	11406851600mm	Weight	330kg
Certification	ISO /CE	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

JTJ-A semi automatic capsule filling machine with CE confirmed

1. Application:

This machine is integrated mechanic, electric and pneumatic technology to it, which can achieve seeding (the capsule seeder is patented in china.), separating, filling capsules and looking capsules in one process. It is beautiful in appearance.

Without the traditional gear box, it is characterized by compact construction, and ease of operation.

It employs three frequency transformers, which can adjust the speed of feeding propeller in stepless manner according to the flow of medicine.

It assures the stability of filling dosage.

2. Features:

1. The capsule filling Machine is a new type of medicine filling machine with novel structure and attractive appearance.

2. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules.

3. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.

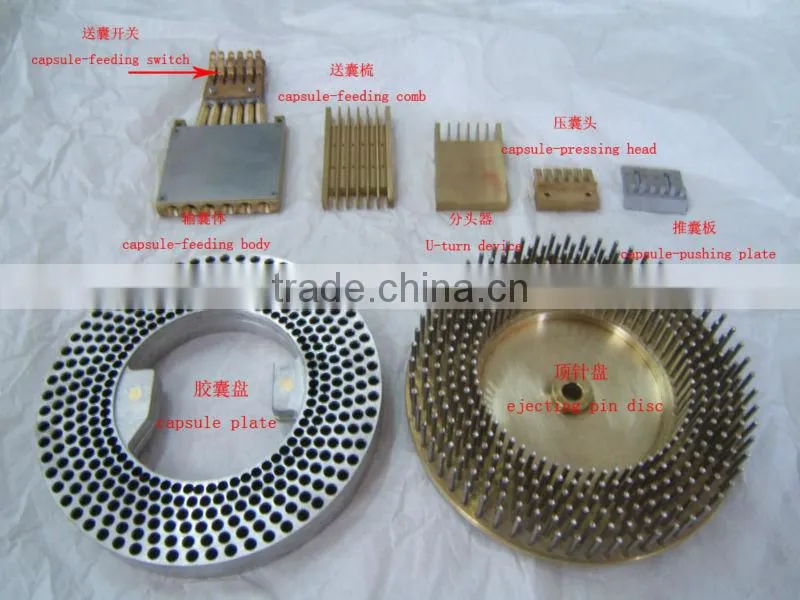

4. The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump.

5. China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 97%.

3. Technical Parameters:

Filling type	Powder, granules	Noise target	<80dBA
Max capacity	25000Capsules/hour	Outer size	11406851600mm
power	380V50Hz2.2kW	Net weight of machine	330kg

4.Factory shows:

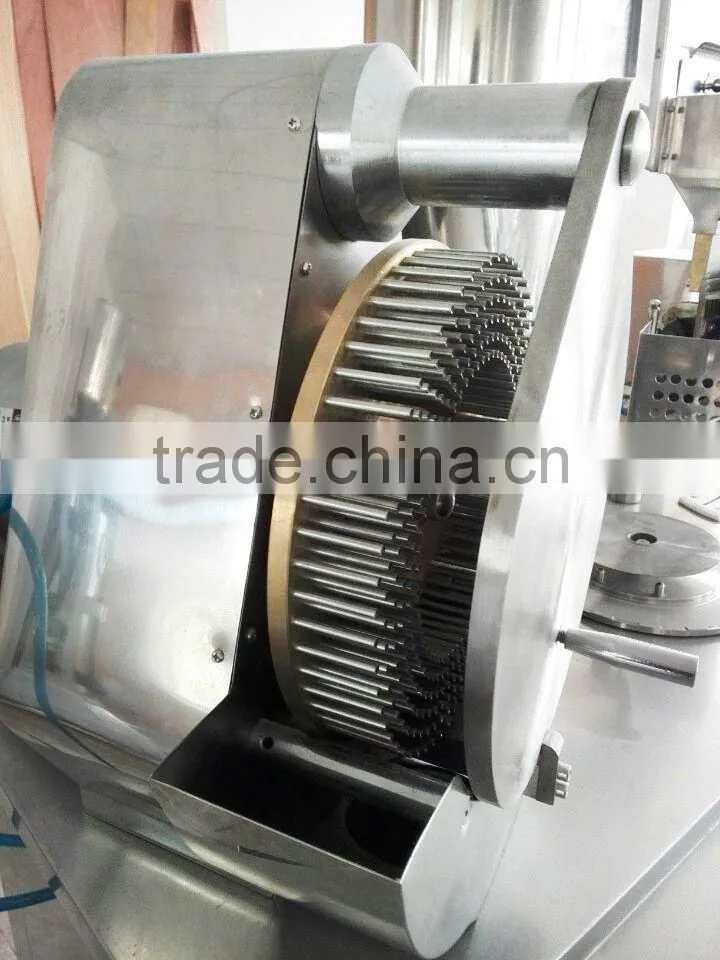

5. Machine shows:

6. Product samples:

7.Our customers:

8. Certificates:
